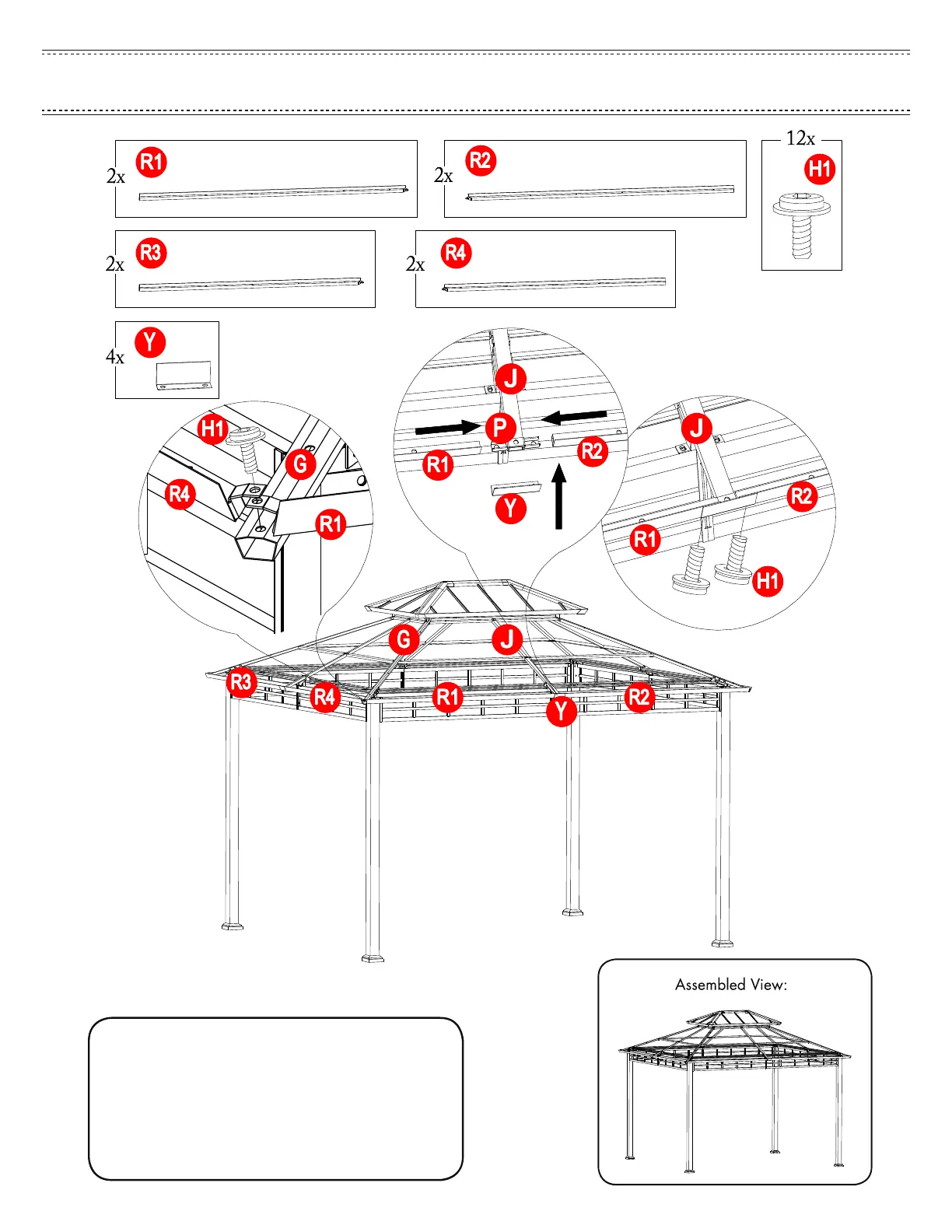

STEP 13
Assemble the Middle Beam Decoration(Y) and
Beam Connector 1(P) to Big Roof Panel Flashing
(R1/R2/R3/R4) with bolts(H1), Assemble the
Rafter(G) to Big Roof Panel Flashing (R1/R2/R3/
R4) with bolts(H1), tighten by wrench (HW1).
