124

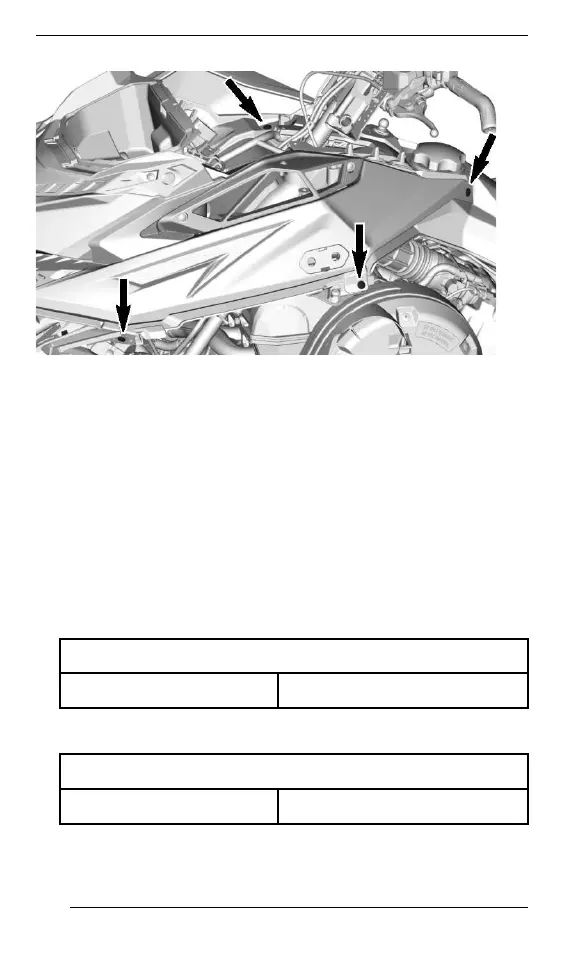

10.Remove the upper body module.
1. Grab the upper body module in the gauge support section.
2. Pull the module forward.
3. Remove the module from the vehicle.
IInnssttaalllliinngg tthhee UUppppeerr BBooddyy MMoodduullee
The installation is the reverse of the removal procedure. However, pay
attention to the following.
1. Lower the upper body module in place.
NNOOTTEE::
Make sure the air intake duct is positioned correctly in the boot.
2. Tighten air intake duct clamp.
ttiigghhtteenniinngg TToorrqquuee
Duct clamp 1 ± 0.2 Nm (9 ± 2 lbf-in)
3. On both sides, install the upper body module retaining screws.
4. Install the hood.
ttiigghhtteenniinngg TToorrqquuee
Upper body screws 2.5 ± 0.2 Nm (22 ± 2 lbf-in)
5. Connect the headlight connectors.
6. Install the storage compartment but leave the cover open.
BODY AND SEAT
