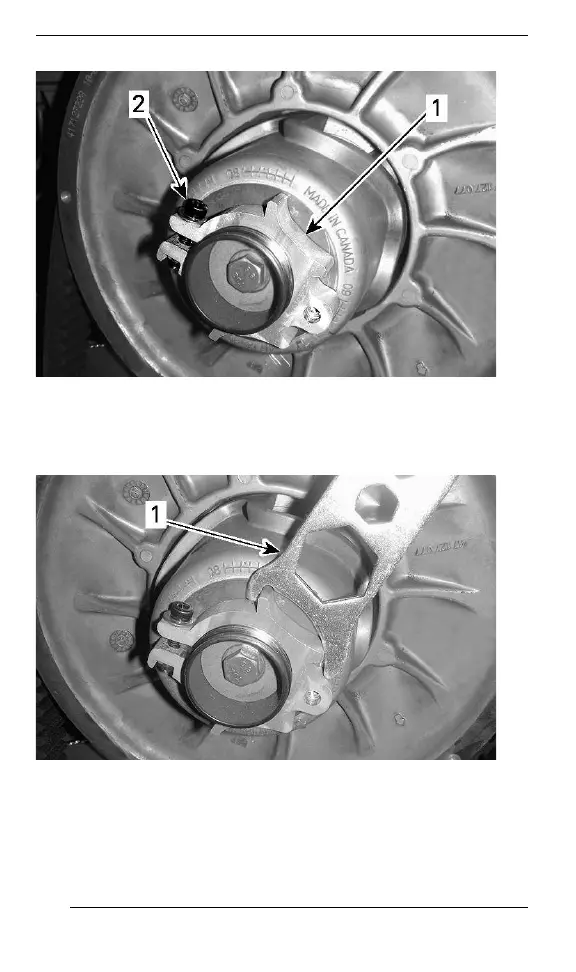

1. Adjuster hub
2. Clamping bolt
4. Using the suspension adjustment tool provided, turn the ring 1/4
turn at a time then rotate the driven pulley to properly set the drive
belt between the pulley sheaves.
1. Suspension adjustment tool
NNOOTTEE::
The adjustment ring has left hand treads.
