Repeat step 4 until the drive belt outer surface is even with the driv-
en pulley edge.
660000 EEFFII -- PPRREELLIIMMIINNAARRYY SSEETTTTIINNGG

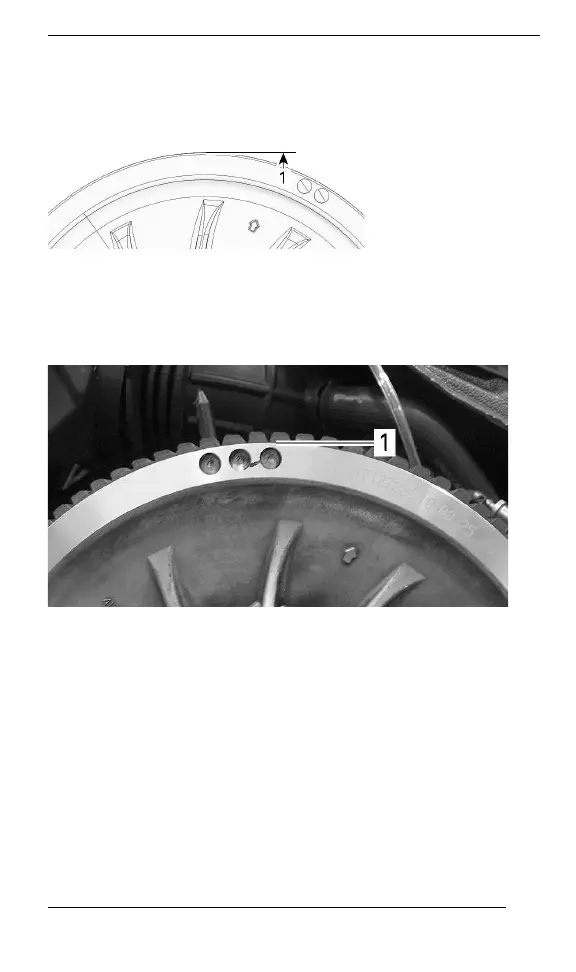

1. Drive belt outer surface is even with the driven pulley edge
660000RR EE--TTEECC
Repeat step 4 until the lowest portion of the cogs on the external
surface of drive belt is even with the driven pulley edge.
TTYYPPIICCAALL -- PPRREELLIIMMIINNAARRYY SSEETTTTIINNGG
1. Lowest portion of cogs even with driven pulley external edge
885500 EE--TTEECC
Repeat step 4 until the cord of drive belt is just hidden by the driven
pulley edge.
