Bruderer BBV 190/85 - Pneumatic Diagram; Pneumatic Diagram Components

BSTA 180 – 500 BBV 190/85
BBV 190/85H
10

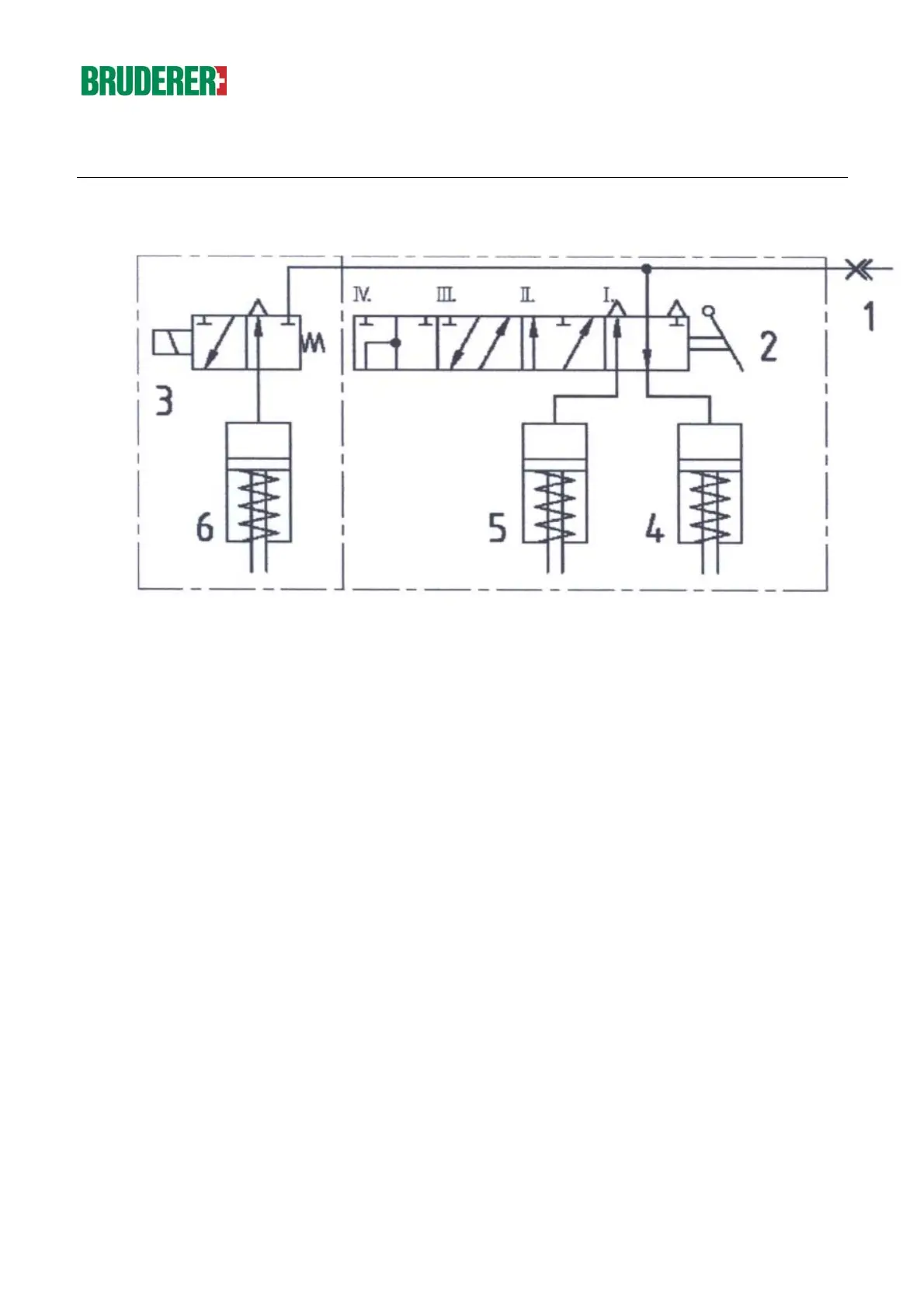

Pneumatic diagram
1 Inlet from the air receiver
2 Operating mode valve ( hand )
3 Solenoid valve BBV left Y407 / BBV right Y417
4 Air cylinder upper
5 Air cylinder lower
6 Stop pin x)
MVLV x BBV 190/195
