BSTA 180 – 500 BBV 190/85
BBV 190/85H
3

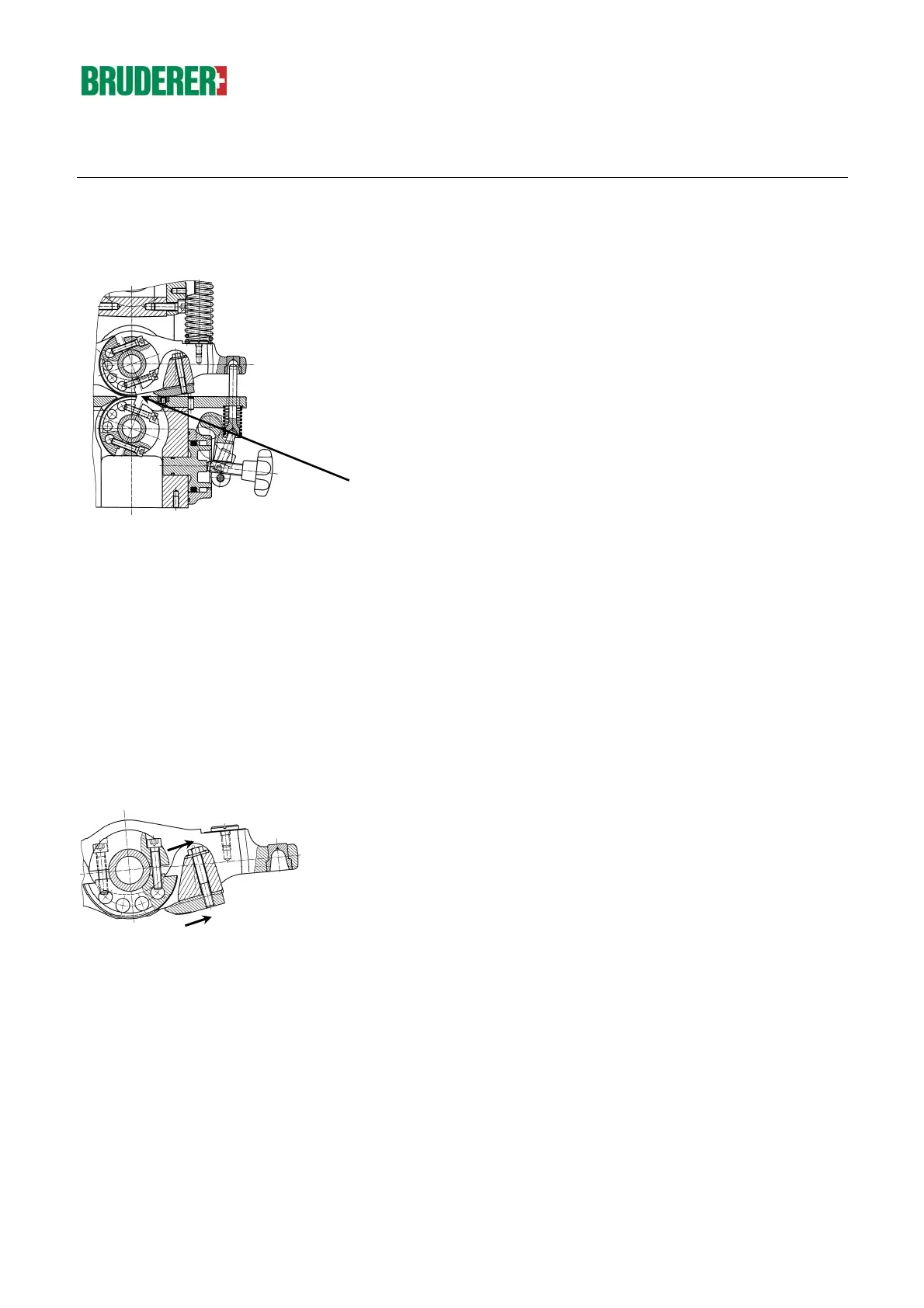

Installation of the upper feed roller
1. Bring the lower feed roller to a vertical position by turning the
machine over at the bevel drive.
2. Install the upper feed roller at the roller shaft 12112.00.0.00 but
do not tighten and position at the arrest point.
3. Please check by turning the crank shaft if the end of the upper feed
roll matches with the end of the lower feed roll.
4. Tighten the four screws M6x30 with Loctite 243 and a torque of
14Nm.
Installation of the clamping bar
1. The play between the hexagon screws M6x40 and the drilled hole
has to be compensated to the back ( necessary for the later
adjustment of the clamping bar).
