Bruker VERTEX 70v User Manual

14 VERTEX 70v User Manual
3
INSTALLATION
Connecting VERTEX 70v to the Vacuum Pump
Installation Procedure
• Remove the valve block cover shown in figure 4 by loosening the two Allen screws
using a hex key (size 3mm) and pulling off the cover.
• Install the supplied sealing ring at the attachment flange. See figure 5.
• Press the supplied flexible metal hose against the attachment flange (figure 6a)
and attach the hose to the flange using the supplied hose clamp (figure 6b).
Secure the hose clamp by fastening the wing screw.

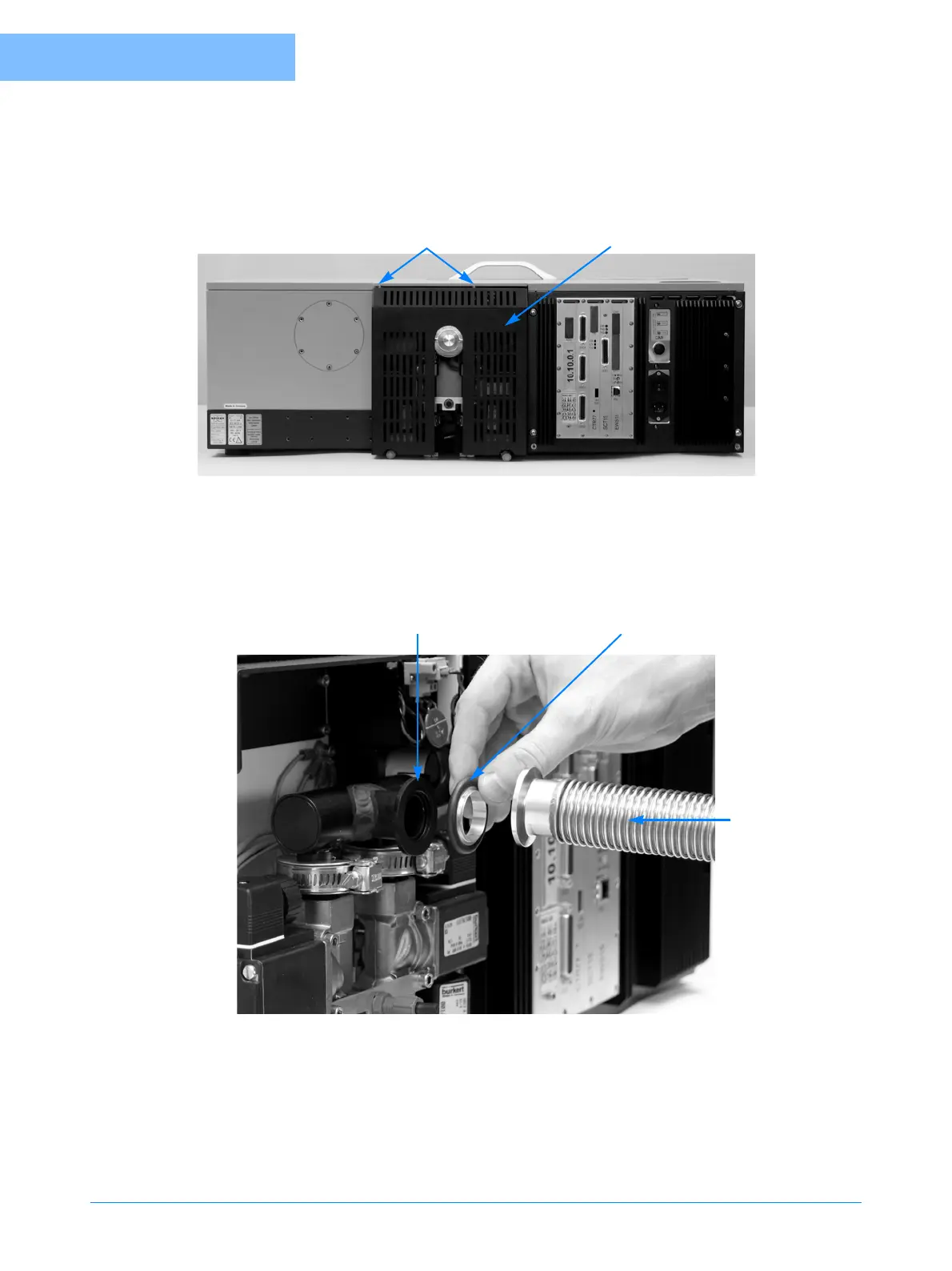

Allen Screws
Valve Block Cover
Figure 4: Removing the Valve Block Cover
Figure 5: Connecting VERTEX 70v to Vacuum Pump - Step 1
Attachment Flange
Sealing Ring
Flexible
Metal Hose
