4342
FOLDING OUT THE SOFA
Take the two back cushions o the sofa and stand in front of the sofa.

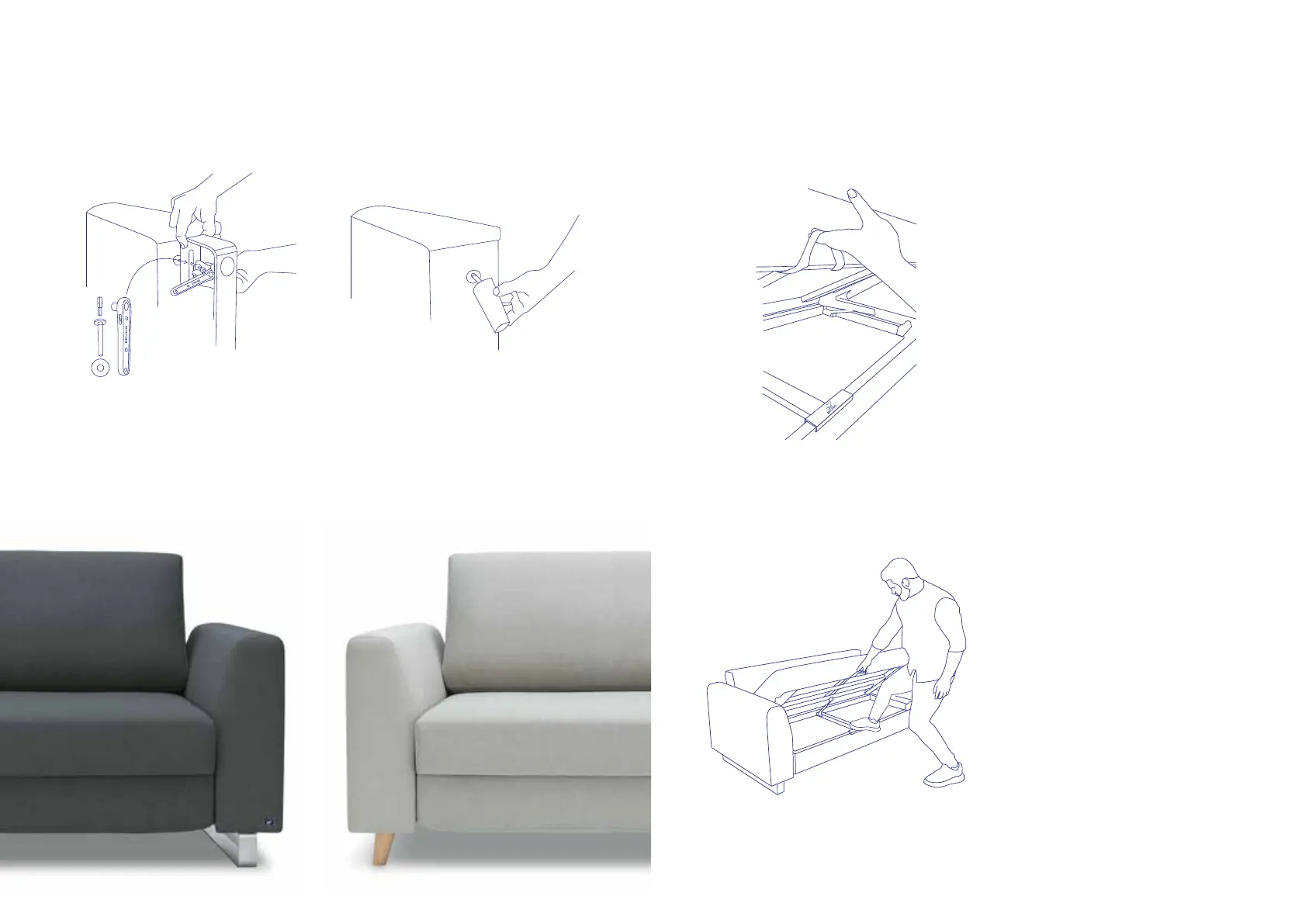

CLASSIC MODEL: MOUNTING THE FEET
Screw the four wooden feet into the expo-
sed threads. The feet should point outward
at an angle in the final position.
Fasten the two metal rails with two
Allen screws each. Place one washer each
between the screw head and the metal rail.
OPTION WOODEN FEETOPTION METAL RAILS
42
Position your foot on the pre-assembled
unfolding aid. Pull the handle and push the
unfolding aid with your foot at the same
time.
1.
2.
To unfold the sofa bed, reach under the top
section and grab the loop.
