BRUSTOR B-128 - 5. Assembly Support Beam; Positioning the Support Beam; Fasten Support Beam End Plates; Attach Plastic End Cap

V2017

B-128 Conservatory awning Mounting instructions

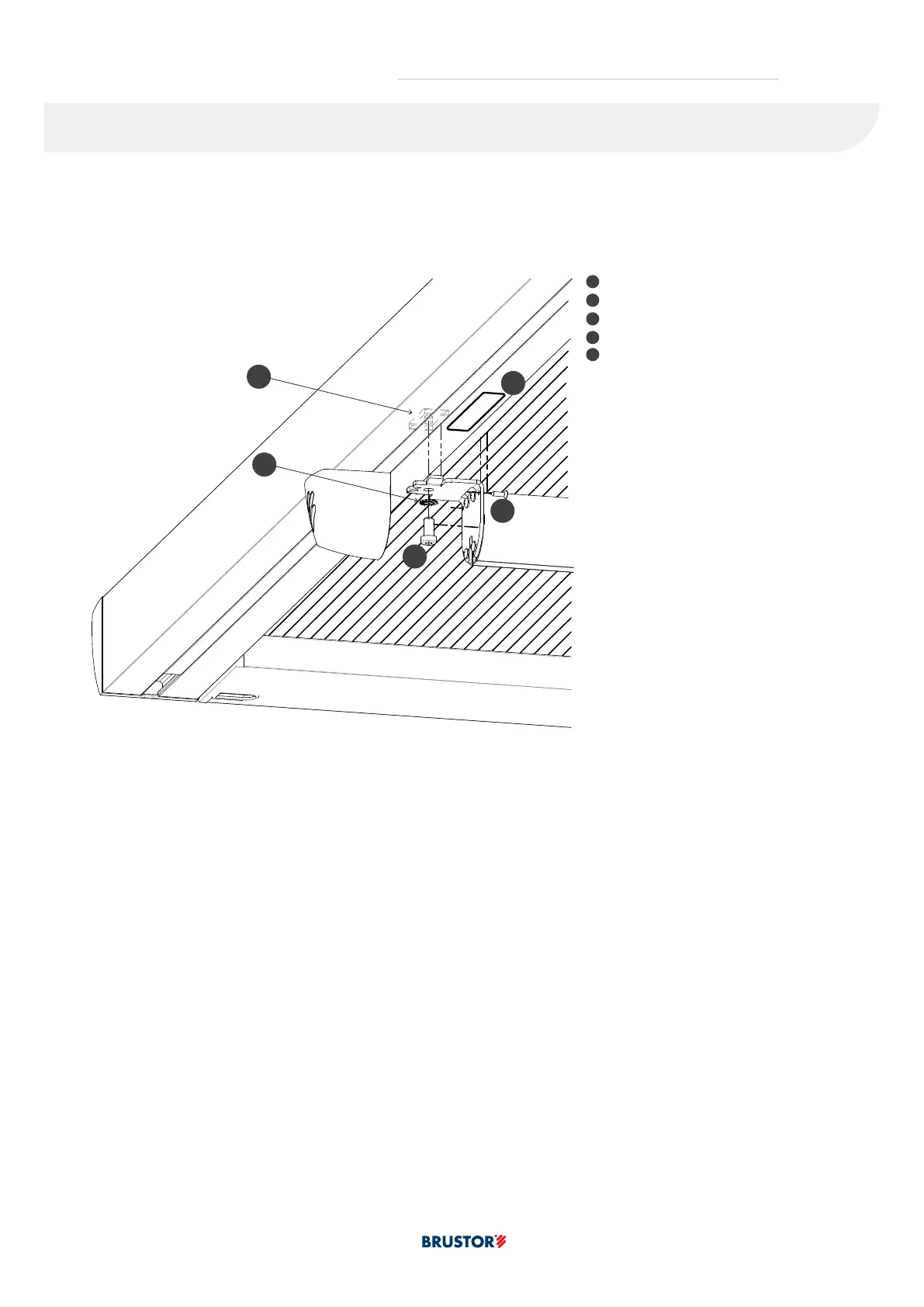

› A support beam can be placed as canvas support.
› Fasten the end plates of the support beam to a fastening plate in the guide with the bolt DIN6912 M8x16.
› Slide the plastic end cap on the end plate of the support beam and fasten with 2 screws DIN7982 ST3.5x13.
. A  
PO
S
I
T
I
O
N
S
UP
P
O
R
T
T
UBE
5
2
3
4
1
1
Fastening plate
2
Indication position support tube
3
DIN6912 M8x16
4
DIN7982 ST3,5x13
5
DIN6798A M8
