Brute Force UX1 - Page 6

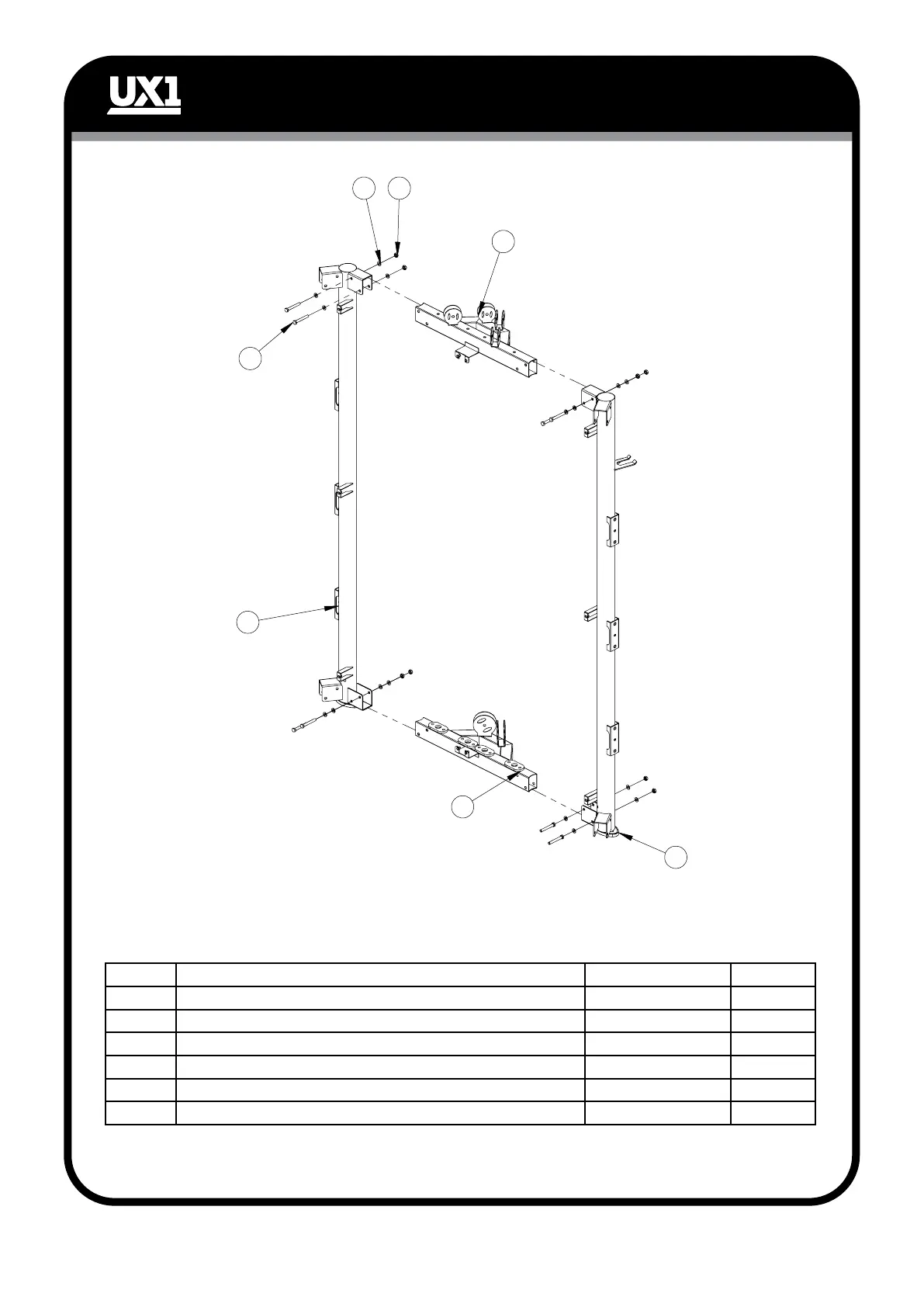

ASSEMBLY STEP 1
- 5 -
6 5
2
4
7
1
3
No. Description Notes Qty
1
2
3
4
5
6
7
Lower connection frame
Upper connection frame
Upright frame right
Hexagon bolt
Lock nut
Flat washer
Upright frame left
-
-
-
M10*75
M10
Ø10
-
1
1
1
8
8
16
1
