ASSEMBLY
Carton Contents
• Air compressor
• Operator’s manual
• Air filter
• Wheel kit
• Pump oil breather cap
• Bottle of compressor pump oil
• Tool kit (Model 074003 ONLY)
If any parts are missing, call the air compressor helpline at
1-800-743-4115.
Your compressor is ready for use when:
Air filter is installed
Wheel kit is installed
Pump oil breather cap is installed
Properly serviced with supplied oil
Connected to a suitable power source
Completed the Break-In Procedure
Unpacking
1. Remove accessories and packing from carton.
2. Open carton completely by cutting each corner from top
to bottom.
3. Leave compressor on carton to install wheel kit.
Also Recommended for Use:
• Safety Glasses (ANSI Z87.1 approved safety glasses with
side shields)
• Air Hose - 25 ft (7.6M), 3/8 inch diameter
• Quick Connector fittings - Use type I/M quick connect
fittings that attach to 1/4 inch NPT thread
• Hearing protection (ANSI S3.19-1974) in noisy environments
• Respirator (NIOSH-approved) in dusty environments
Install Air Filter
1. Remove shipping cap and install air filter stem (Figure 1).
Tighten by hand.
2. Place compressor filter housing, filter media, and air filter
cover on stem (Figure 2). Secure with washer and wing nut.
Install Wheel Kit
You will need the following tools to install these components:
• 14 mm and 17 mm wrench
• Socket wrench with 14 mm and 17 mm sockets
Install the Foot Pads as Follows (Figure 3):
1. Ensure compressor is resting on a flat, level surface.
2. Carefully lay compressor on its side with the air cleaner
facing down.
3. Slide a M8-1.25x30 bolt through center of cup shaped
end in rubber foot pad.
4. Slide a M8 flat washer over bolt.
5. Insert threaded end of bolt through hole in foot bracket
on base of air tank.
6. Place a M8 flat washer on threaded end of bolt inside
foot bracket.
7. Using a 14mm wrench and socket wrench, place M8 hex
nut on threaded end of bolt and tighten.
8. Repeat steps 3 through 7 to install the second rubber
foot pad.
ASSEMBLY

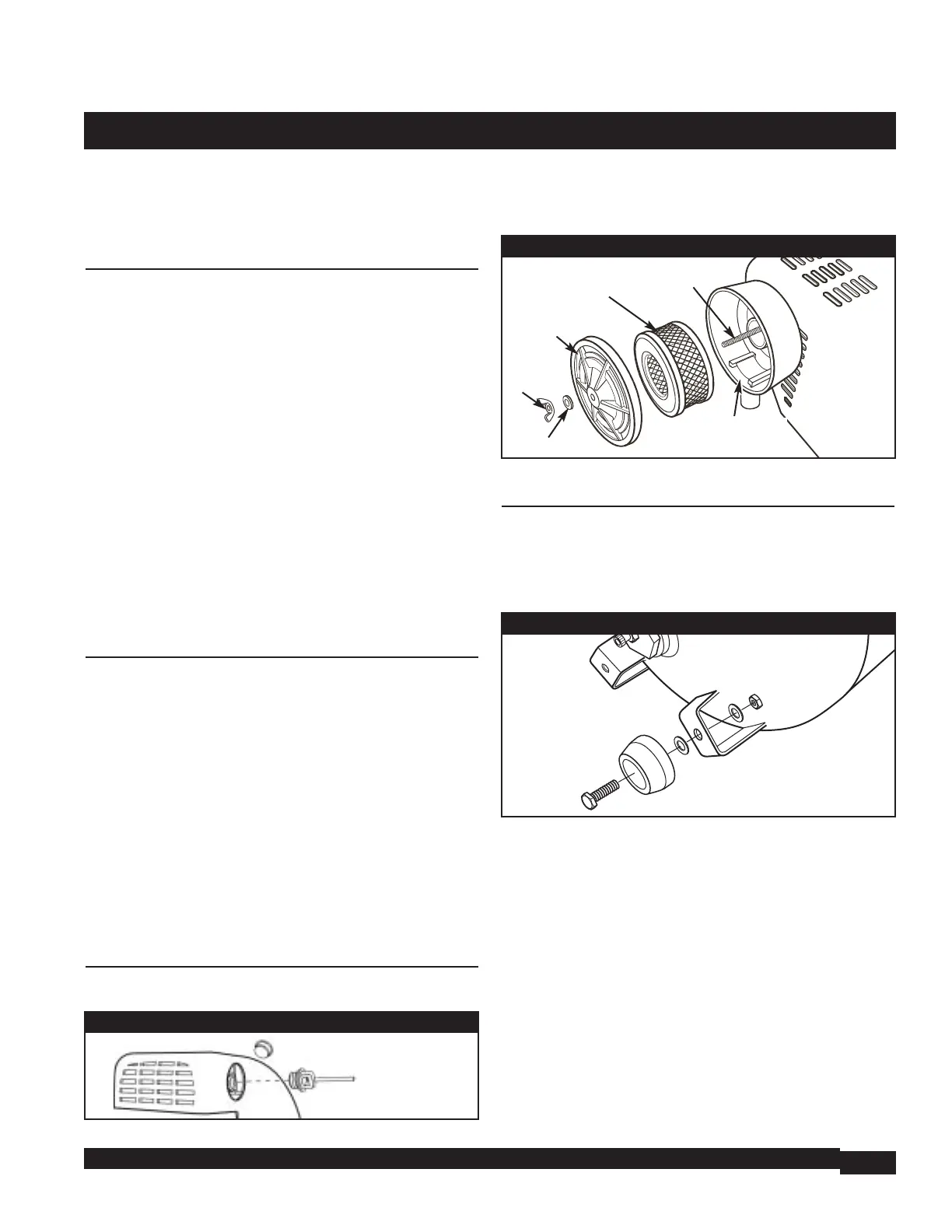

Figure 3 - Install Foot Pads
Figure 2 - Install Air Filter
Filter Media
Compressor
Filter Housing
Figure 1 - Install Air Filter Stem
Air Filter
Stem
Air Filter
Cover
Washer
Wing
Nut
