—5—
A
F
B
E
C
D
#1
#2
NOTES:
1. Service clearances are as follows:
Side (compressor) — 3
1
/
2
ft (1067 mm)
Side (opposite compressor) — 3 ft (914 mm)
Ends — 2 ft (610 mm)
Top—5ft(1524mm)
2. Corner weights are approximate.
3. Actual support weights depend on level of unit and evenness of support
posts.
4. Total weights represent approximate unit weights without shipping
package.
5. Bottom or top skid is NOT included in the weights.

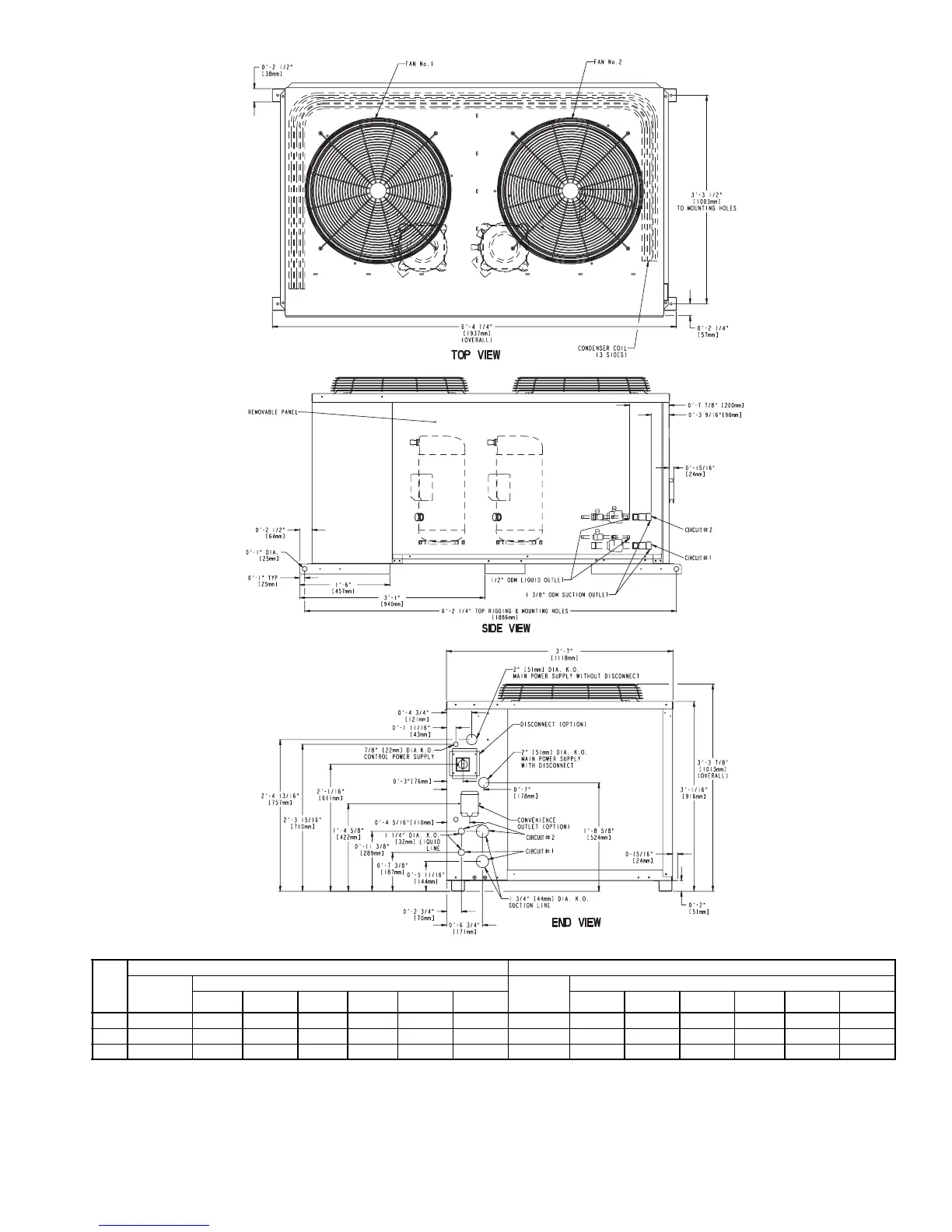

Fig. 4 — 566E150-240 Unit Dimensions
UNIT
566E
ALUMINUM COIL COPPER COIL
Standard
Weight
lb (kg)
Operational Weight Points lb (kg) Standard
Weight
lb (kg)
Operational Weight Points lb (kg)
ABCDE F A B CDE F
150 676 (307) 84 (38) 168 (76) 72 (33) 78 (35) 183 (83) 91 (41) 822 (373) 118 (54) 219 (100) 103 (47) 90 (41) 190 (86) 102 (46)
180 740 (336) 86 (39) 186 (85) 71 (32) 82 (37) 216 (98) 99 (45) 886 (403) 119 (54) 238 (129) 102 (46) 95 (43) 221 (100) 111 (50)
240 764 (347) 87 (40) 192 (87) 72 (33) 85 (39) 226 (103) 102 (46) 904 (411) 120 (55) 243 (110) 102 (46) 96 (44) 230 (105) 113 (51)
