II. GAS HEAT MODE
With the SYSTEM or MODE control set to HEAT, your unit will
run in heating mode until the indoor temperature is raised above
the level you have selected. On extremely cold days, your unit will
run for longer periods at a time and have shorter “off” periods than
on moderate days.
MAINTENANCE AND SERVICE
This section discusses maintenance that should be performed on
your system. Most maintenance should be performed by your
dealer. You, as the owner, may wish to handle some minor
maintenance for your new unit.
A. Routine Maintenance
All routine maintenance should be handled by skilled, experienced
personnel. Your dealer can help you establish a standard proce-
dure.
For your safety, keep the unit area clear and free of combustible
materials, gasoline, and other flammable liquids and vapors.
To assure proper functioning of the unit, flow of condenser air
must not be obstructed from reaching the unit. Clearance from the
top of the unit is 48 in. Clearance of at least 36 in. is required on
sides except the power entry side (42 in. clearance) and the duct
side (12 in. minimum clearance).
B. Maintenance and Care for the Equipment Owner
Before proceeding with those things you might want to maintain
yourself, please carefully consider the following:
WARNING: 1. TURN OFF ALL ELECTRICAL
POWER TO YOUR UNIT AND IN-
STALL LOCK-OUT TAG BEFORE
SERVICING OR PERFORMING
MAINTENANCE. ELECTRIC
SHOCK COULD CAUSE SERIOUS
INJURY OR DEATH.
2. When removing access panels or performing mainte-
nance functions inside your unit, be aware of sharp
sheet metal parts and screws. Although special care is
taken to keep sharp edges to a minimum, be extremely
careful when handling parts or reaching into the unit.
AIR FILTERS
The air filter(s) should be checked at least every 3 or 4 weeks and
changed or cleaned whenever it becomes dirty. Dirty filters
produce excessive stress on the blower motor and can cause the
motor to overheat and shut down.
This unit must have air filters in place before it can be operated.
These filters can be located in one of at least two places. In many
applications the installer will provide return air filter grilles
mounted on the wall or ceiling of the conditioned structure. In the
instance of filter grilles, the filters can simply be removed from the
grille and replaced.
The other typical application is an accessory filter rack installed
inside the unit itself. The following information is given to assist
in changing filters used in these internal filter racks.
Table 1 indicates the correct filter size for your unit. Refer to Fig.
2 to access filters installed in the accessory filter rack.
To replace or inspect filters (or accessory filter rack when
supplied):
1. Remove the filter access panel using a 5/16-in. nut driver.
2. Remove the filter(s) by pulling it out of the unit. If the
filter(s) is dirty, clean or replace with a new one.
When installing the new filter(s), note the direction of the airflow
arrows on the filter frame.
If you have difficulty locating your air filter(s) or have questions
concerning proper filter maintenance, contact your dealer for
instructions. When replacing filters, always use the same size and
type of filter that was supplied, originally, by the installer.
CAUTION: Never operate your unit without the filter(s)
in place. Failure to heed this warning may result in
damage to the blower motor and/or compressor. An
accumulation of dust and lint on internal parts of your
unit can cause loss of efficiency and , in some cases, a
fire.
FANS AND FAN MOTORS
Periodically, check the condition of fan wheels and housings and
fan-motor shaft bearings. Contact your dealer for the required
annual maintenance.
INDOOR AND OUTDOOR COILS
Cleaning of the coils should only be done by qualified service
personnel. Contact your dealer for the required annual mainte-
nance.
CONDENSATE DRAIN
The drain pan and condensate drain line should be checked and
cleaned at the same time the cooling coils are checked by your
dealer.
COMPRESSOR
All compressors are factory-shipped with a normal charge of the
correct type refrigeration grade oil. A compressor should rarely
require additional oil.
TABLE 1—INDOOR-AIR FILTER DATA
UNIT SIZE FILTER SIZE
574B024-030 20x20x1
574B036 20x24x1
574B042-060 24x30x1

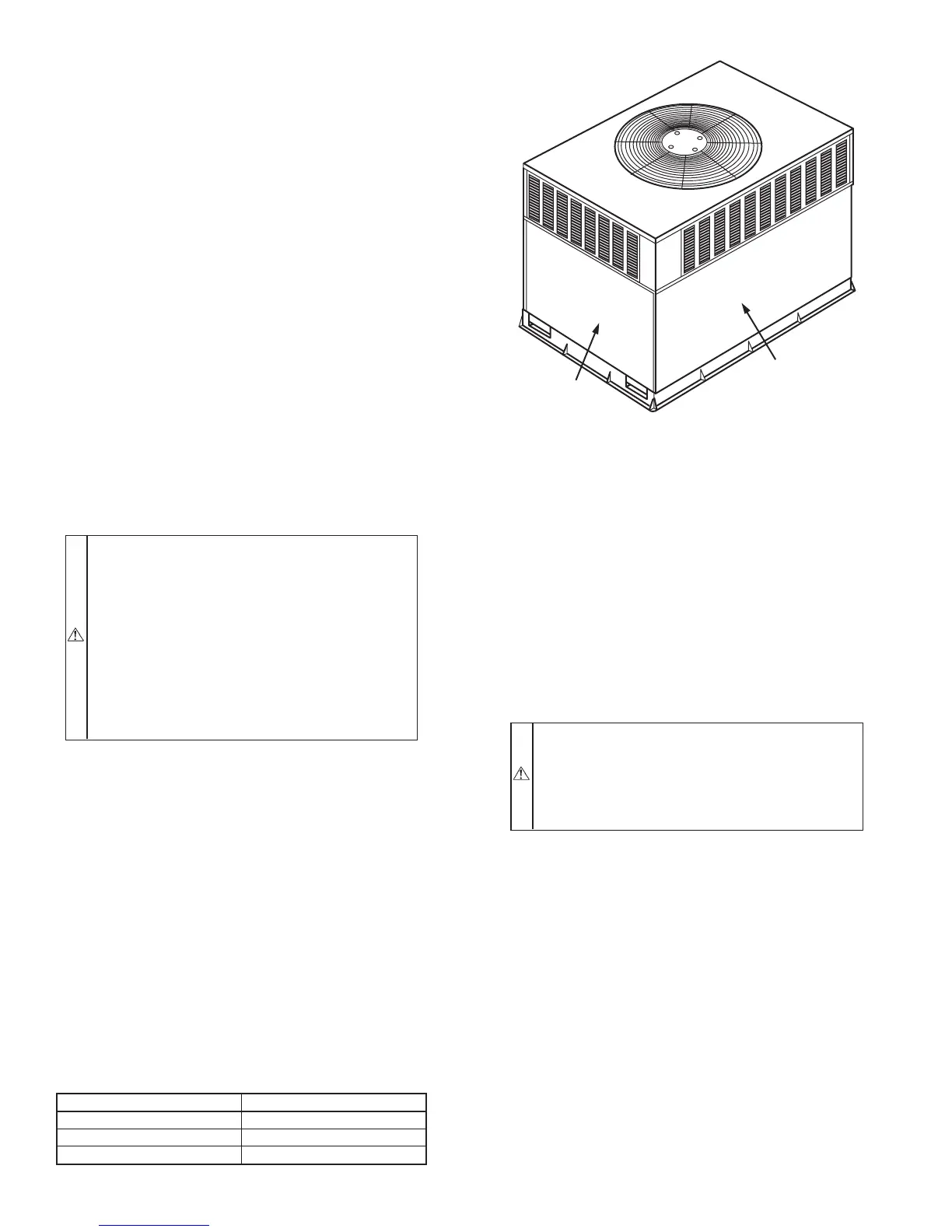

Fig. 2—Filter Access Panel-Vertical Supply Shown
C99094
ACCESS PANEL
FILTER ACCESS
PANEL*
*For accessory filter rack.
—2—
