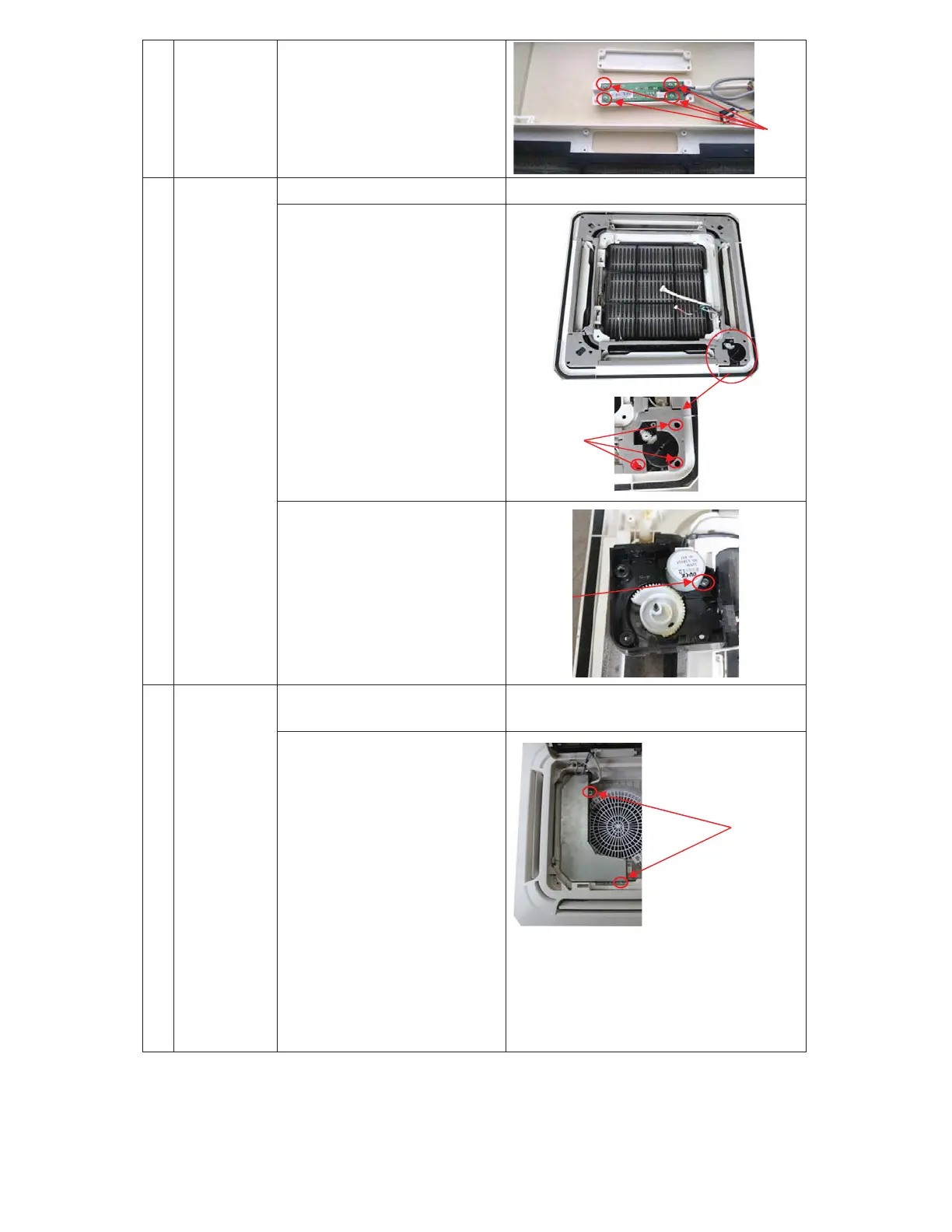

board cover(4
screws)
 Remove the display
board(4 screws)
4 Remove the
swing
motor
1) Remove the panel
Repeat the operation of step1,2,3 of No.2
2) Unscrew the 3 screws to
remove the swing motor
assy.
3) Unscrew 1 screw to
remove the swing motor.
5 Remove the
PCB
1) Open the grille
Repeat the operation of step1 of No.1(No need
to remove the panel)
2) Disassemble the
electronic control box
cover after remove the 2
screws.
2 screws
4 screws
3 screws
1 screw
