Bryant 619REQ018CBMA - Connection Diagram

7

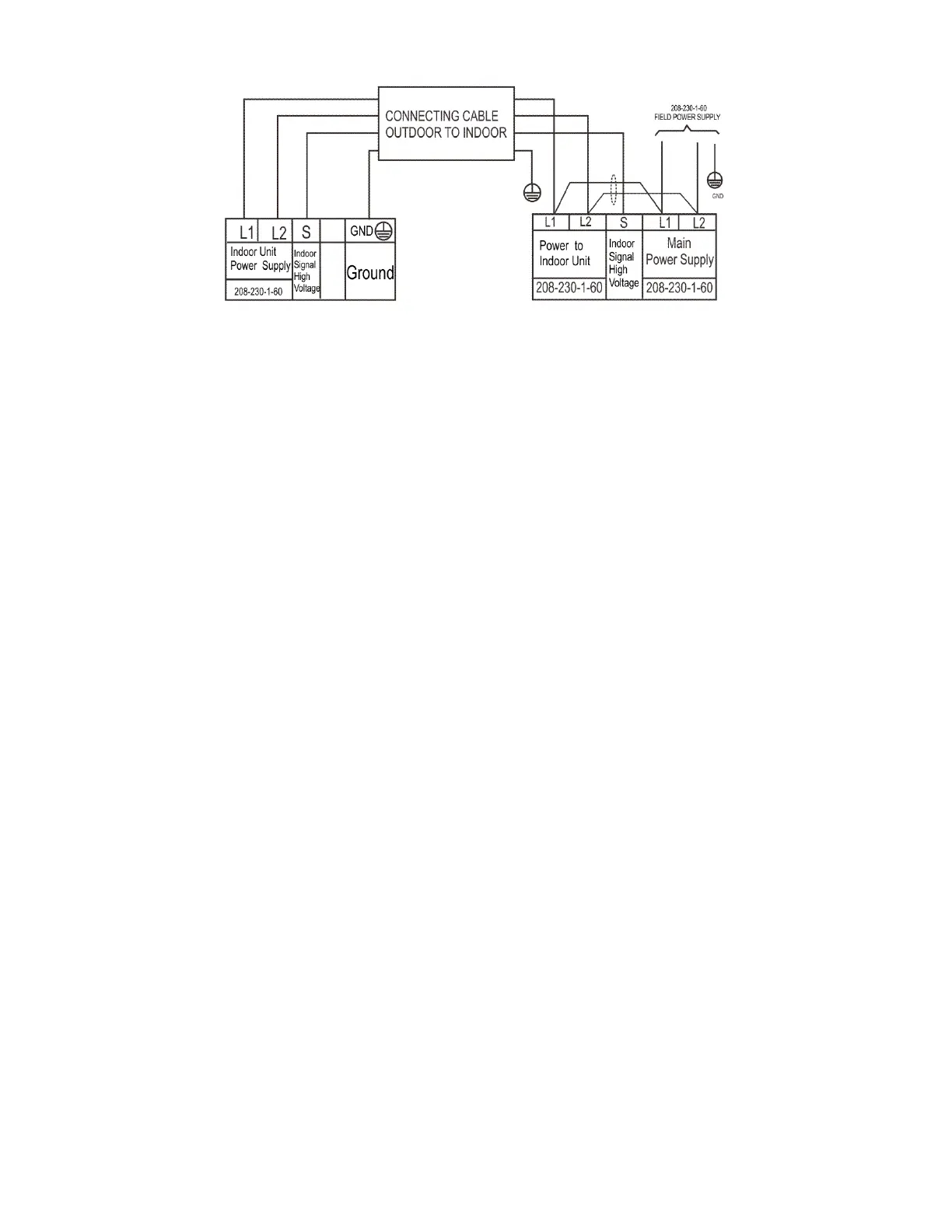

CONNECTION DIAGRAM
Fig. 3 – Connection Diagram
Notes:
1. Do not use thermostat wire for any connection between indoor and outdoor units.
2. All connections between indoor and outdoor units must be as shown. The connections are sensitive to polarity and will result in a fault code.
