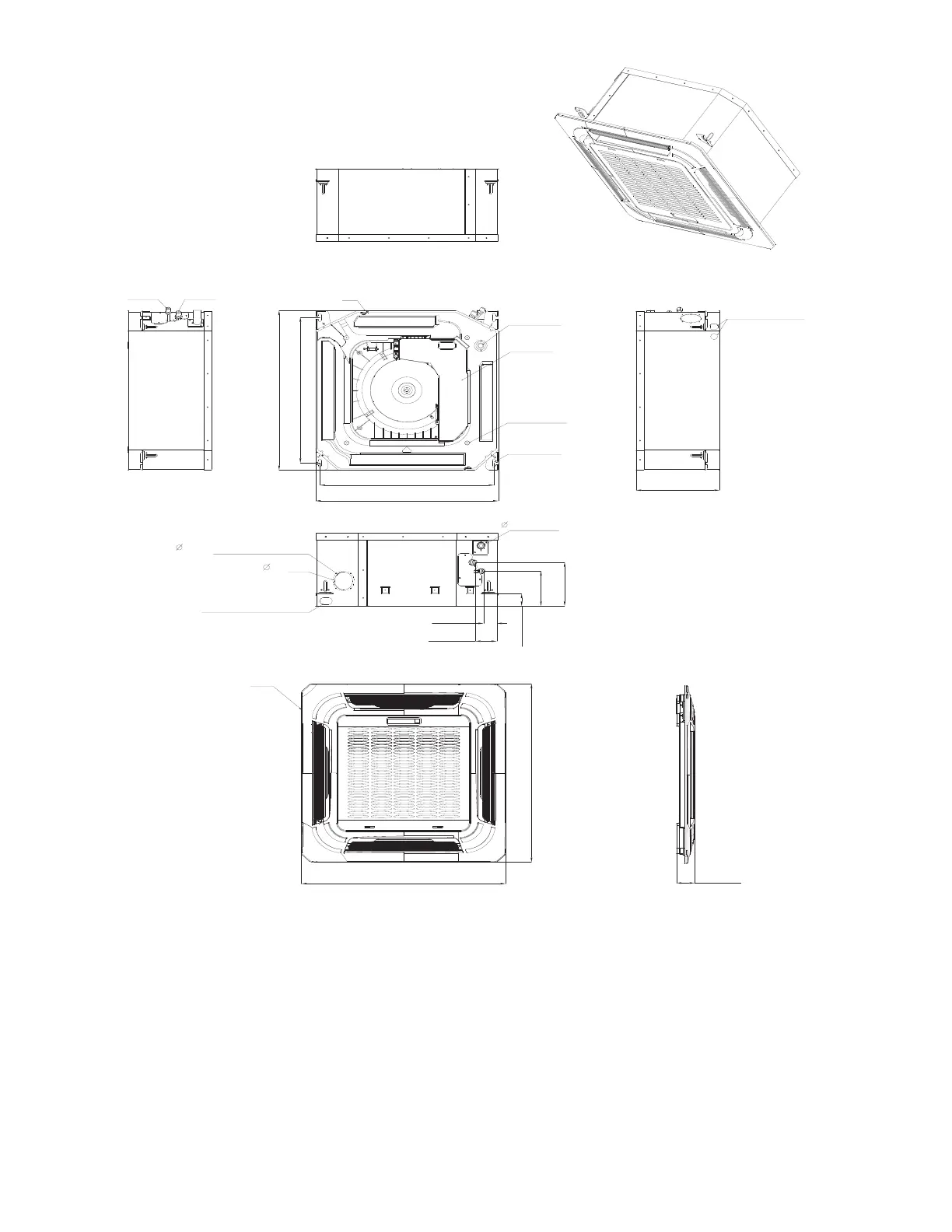

DIMENSIONS
Panel
Gas side
L
iquid side
4-install hanger
Body
Drain pipe
1
.
2
6
(
3
2
)
Outside Air Intake
2
.
5
6
(6
5
)
25.47(647)
25.47(647)
1.97(50)
Drain hole
( for Service )
21.46(545)
22.44(570)
10.24(260)
1.65(42)
1.65(42)
1.73(44)
1.73(44)
1.73(44)
Wiring connection port
2
.
9
5
(
7
5
)
E-parts box
4-Screw hole
(for install panel)
21.46(545)
22.44(570)
Wiring connection port
Fig. 1 – Indoor unit
Table 3—Dimensions
UNIT SIZE
9K 12K 18K
Body Panel Body Panel Body Panel
Dimensions
Height in.(mm) 10.24 (260) 1.97 (50) 10.24 (260) 1.97 (50) 10.24 (260) 1.97 (50)
Width in.(mm) 22.44 (570) 25.47 (647) 22.44 (570) 25.47 (647) 22.44 (570) 25.47 (647)
Depth in.(mm) 22.44 (570) 25.47 (647) 22.44 (570) 25.47 (647) 22.44 (570) 25.47 (647)
Packing
Height in.(mm) 11.42 (290) 4.84 (123) 11.42 (290) 4.84 (123) 11.42 (290) 4.84 (123)
Width in.(mm) 25.79 (655) 28.15 (715) 25.79 (655) 28.15 (715) 25.79 (655) 28.15 (715)
Depth in.(mm) 25.79 (655) 28.15 (715) 25.79 (655) 28.15 (715) 25.79 (655) 28.15 (715)
Weight-Gross lbs(kg) 41.88 (19) 9.92 (4.5) 41.88 (19) 9.92 (4.5) 46.3 (21) 9.92 (4.5)
Weight-Net lbs(kg) 35.27 (16) 5.51 (2.5) 35.27 (16) 5.51 (2.5) 39.68 (18) 5.51 (2.5)
