Bryant Evolution SYSTXBB4ZC01 User Manual

4
ROUND METAL DUCTWORK
1. Crimp the end of the branch duct.
2. Slip the end of the zone damper over the ductwork end. Use
a self--tapping sheet metal screw to secure.
3. Properly seal the joint using duct tape, mastic, or other ap-
proved method. Do not allow mastic to come in contact
with the actuator.
4. If dampers are applied in an unconditioned space, insulate
themusing1--1/2inchto2inchinsulation(SeeFig.2).
/ ≤ STEEL STRAP
1
2

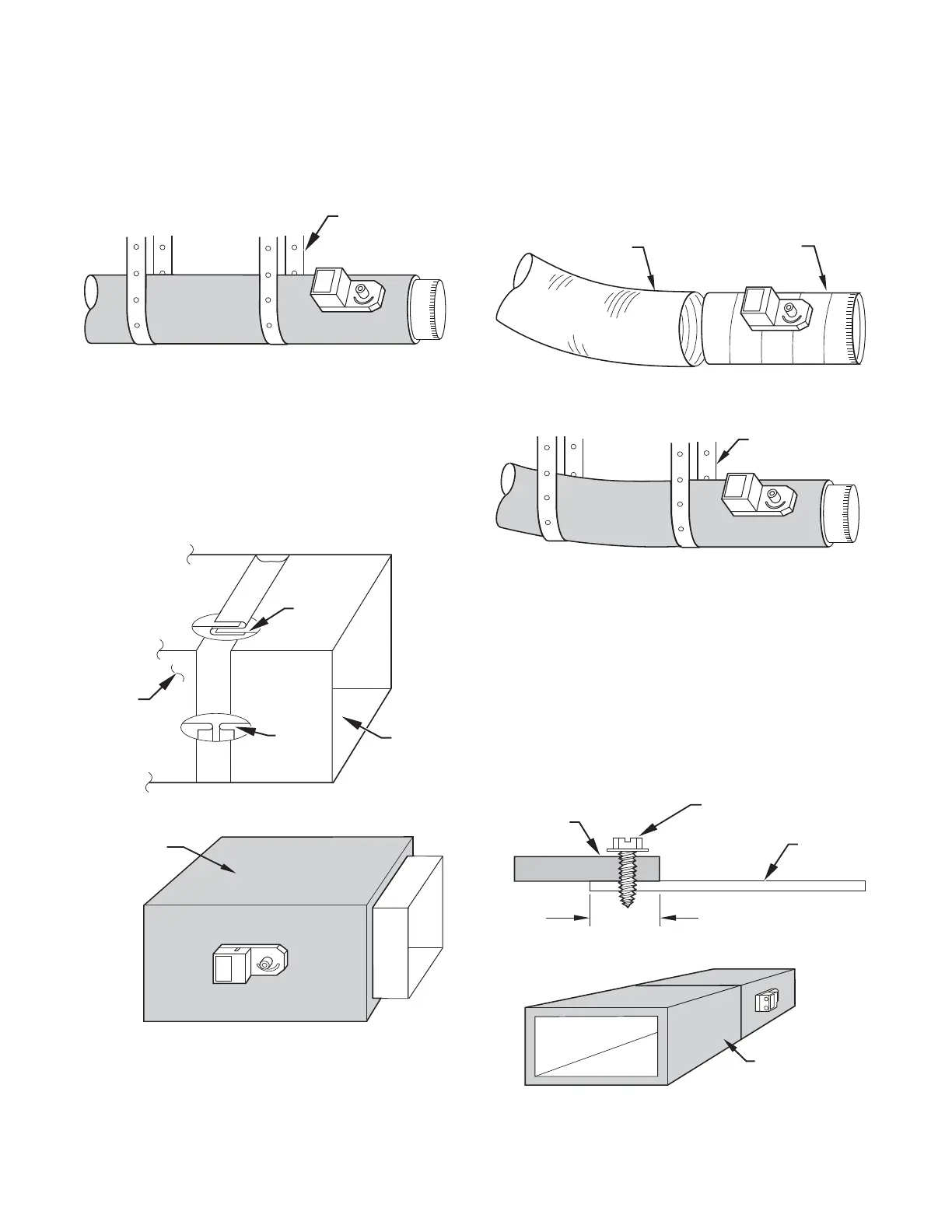

Fig. 2 -- Insulated Round Metal Duct Work
A95130
RECTANGULAR DUCTWORK
1. Make connections using S--lock and drives (See Fig. 3).
2. Properly seal the joint using duct tape, mastic, or other ap-
proved method. Do not allow mastic to come in contact
with the actuator.
3. If dampers are applied in an unconditioned space, insulate
themusing1--1/2inchto2inchinsulation(SeeFig.4).
DRIVE
ZONE
DAMPER
S-LOCK
SUPPLY
A
IR DUCT
Fig. 3 -- Rectangular Metal Ductwork
A92478
1 / " TO 2"
INSULATION
1
2
Fig. 4 -- Insulated Rectangular Metal Ductwork
A95131
ROUND FLEXIBLE DUCTWORK
1. Slip one end of the flexible ductwork over the zone damper
end (See Fig. 5).
2. Secure flexible duct to the zone damper using SMACNA or
other approved method.
3. Properly seal the joint using duct tape, mastic, or other ap-
proved method. Do not allow mastic to come in contact
with the actuator.
4. If dampers are applied in an unconditioned space, insulate
themusing1--1/2inchto2inchinsulation(SeeFig.6).
FLEXIBLE
DUCT
ZONE
DAMPER
Fig. 5 -- Round Flexible Ductwork
A95132
/ ≤ STEEL STRAP
1
2
Fig. 6 -- Insulated Round Flexible Ductwork
A95133
RECTANGULAR FIBROUS GLASS DUCTWORK
1. Insert one end of the zone damper into the fibrous glass
ductwork end approximately 2 to 3 inches (See Fig. 7).
2. Use the field supplied screws to secure the duct board to the
zone damper.
3. Properly seal the joint using duct tape, mastic, or other ap-
proved method. Do not allow mastic to come in contact
with the actuator.
4. If dampers are applied in an unconditioned space, insulate
themusing1--1/2inchto2inchinsulation(SeeFig.8).
ZONE
DAMPER
2≤ TO 3≤
FIBROUS
GLASS
DUCTWORK
FIELD
SUPPLIED
SCREWS
Fig. 7 -- Rectangular Fibrous Glass Ductwork
A92480
1 / ≤ TO 2≤
INSULATION
1
2
Fig. 8 -- Insulated Rectangular Fibrous Glass Ductwork
A95134
