Step 5 — Final Wiring
Bring all damper and sensor wires together at the Evolutionr
Damper Control. Make all system wiring connections as shown in
Fig. 9. The two ABCD bus connections on the Evolutionr Damper
Control are in parallel with each other. Use either terminal block to
connect the Master Zoning Wall Control, Smart Sensor(s),
variable--speed indoor unit and 2 -- speed communicating outdoor
unit (if applied). If more than four zones are required (up to 8
zones maximum), see Step 6 and Fig. 10 for additional Damper
Control Board Setup for Zones 5-- 8.

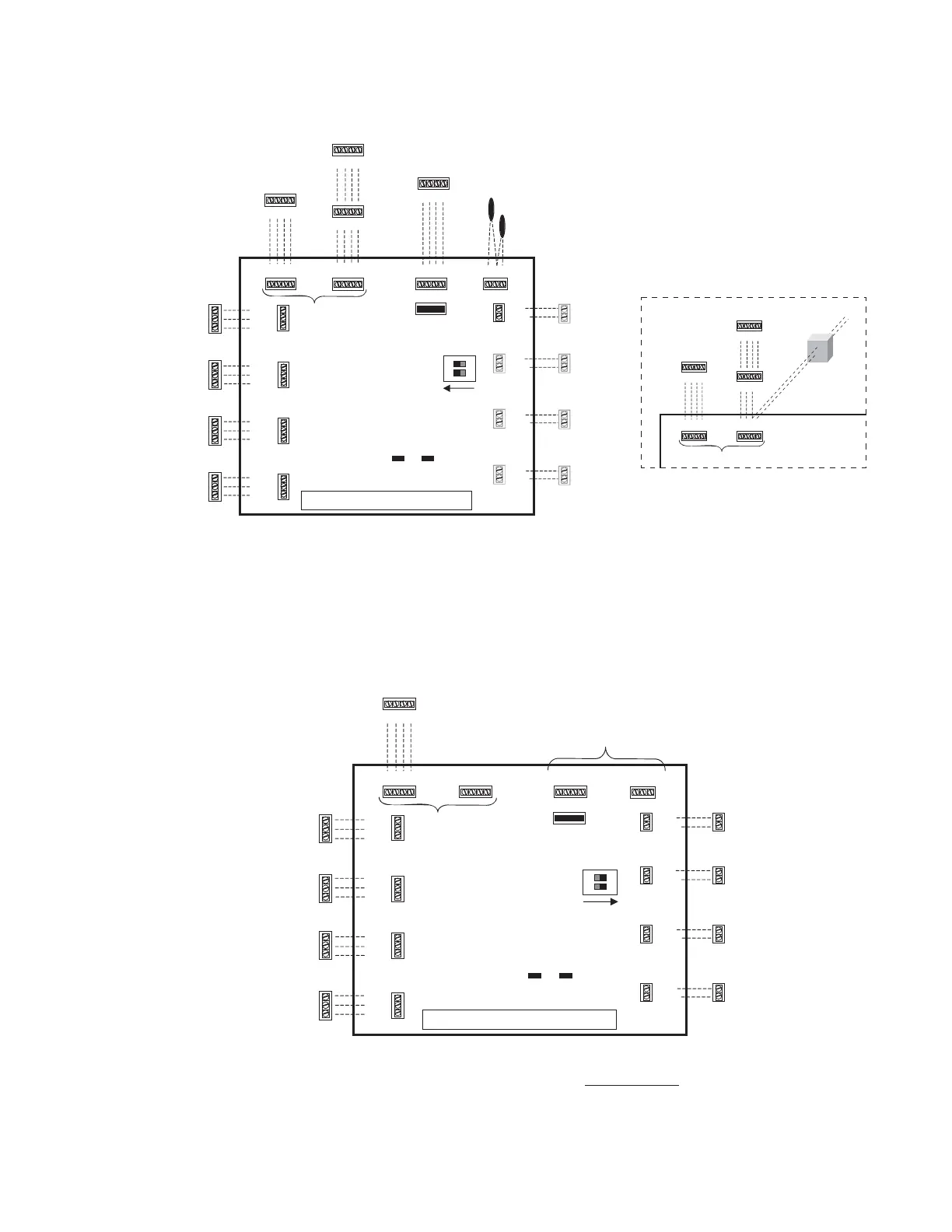

Zoning System Wiring Diagram
Yellow Green
OFF
A B C D
CLS1
COM1
OPN1
LAT COM HPT
Y R G B
ZS1
ZS1C
ZS2
ZS2C
ZS3
ZS3C
ZS4
ZS4C
CLS2
COM2
OPN2
CLS3
COM3
OPN3
CLS4
COM4
OPN4
Zone-1
Damper
Optional
Zone-1
Sensor _
Zone-2
Sensor
Zone-3
Sensor
Zone-4
Sensor
Zoning User Interface &
Smart Sensor(s)
Connection
A B C D
Y R G B
Indoor
Unit
A B C D
A B C D
2-spd.
Outdoor
Unit
A B C D
Ventilator
Unit
Optional -
Leaving Air & Heat Pump
Temperature Sensor
See Note _
Notes:
_ ABCD CONNECTORS ARE IN PARALLEL WITH EACH OTHER. USE EITHER TERMINAL BLOCK FOR ANY ABCD CONNECTION.
_ INSTALLING ZONE-1 REMOTE ROOM SENSOR WILL OVERRIDE USER INTERFACE TEMPERATURE SENSOR.
Zone-2
Damper
Zone-3
Damper
Zone-4
Damper
Status LEDs
DIP Switch
Zones 1 - 4
Damper Control Module, Zones 1 - 4
ABCD Connection:
A = Green: RS485+
B = Yellow: RS485-
C = White: 24VAC (COM)
D = Red: 24VAC (HOT)
Dampers:
CLS_ = Close
COM_ = Common
OPN_ = Open
FUSE
1 2
ON
A B C D
Zoning User Interface &
Smart Sensor(s)
Connection
A B C D
Indoor
Unit
A B C D
A B C D
2-spd.
Outdoor
Unit
A B C D
Optional
Transformer
Fig. 9 -- System Wiring
A03161
Zoning System Wiring Diagram
Yellow Green
A B C D
CLS1
COM1
OPN1
LAT COM HPT
Y R G B
ZS1
ZS1C
ZS2
ZS2C
ZS3
ZS3C
ZS4
ZS4C
CLS2
COM2
OPN2
CLS3
COM3
OPN3
CLS4
COM4
OPN4
Zone-5
Damper
Zone-5
Sensor
Zone-6
Sensor
Zone-7
Sensor
Zone-8
Sensor
Connect to Zones 1-4
Damper Control
Module
A B C D
A B C D
See Note _
Zone-6
Damper
Zone-7
Damper
Zone-8
Damper
For Zones 5-8, a second Damper
Control Module must be applied
ON = Zones 5-8
Notes:
_ FOR ZONES 5 THROUGH 8: A SECOND DAMPER CONTROL MODULE IS REQUIRED. BUS CONNECTION
ABCD MUST BE CONNECTED BETWEEN BOTH DAMPER CONTROL MODULES.
_ SET BOTH DIP SWITCH POSITIONS TO ON (right position) AT
SECOND MODULE ONLY TO ACTIVATE ZONES 5-8.
Zones 5 - 8
Damper Control Module, Zones 5 - 8
No Connection
ON
DIP Switch
Dampers:
CLS_ = Close
COM_ = Common
OPN_ = Open
FUSE
1 2
ON
Fig. 10 -- Additional Damper Control Board Setup for Zones 5 -- 8
