computer) this cable will be a DB9-male to DB9-
female straight through cable.
3) IF your computer does not contain an RS232 se-
rial port, but does contain a USB port, there are
modestly priced USB to RS232 serial port adaptors
available.

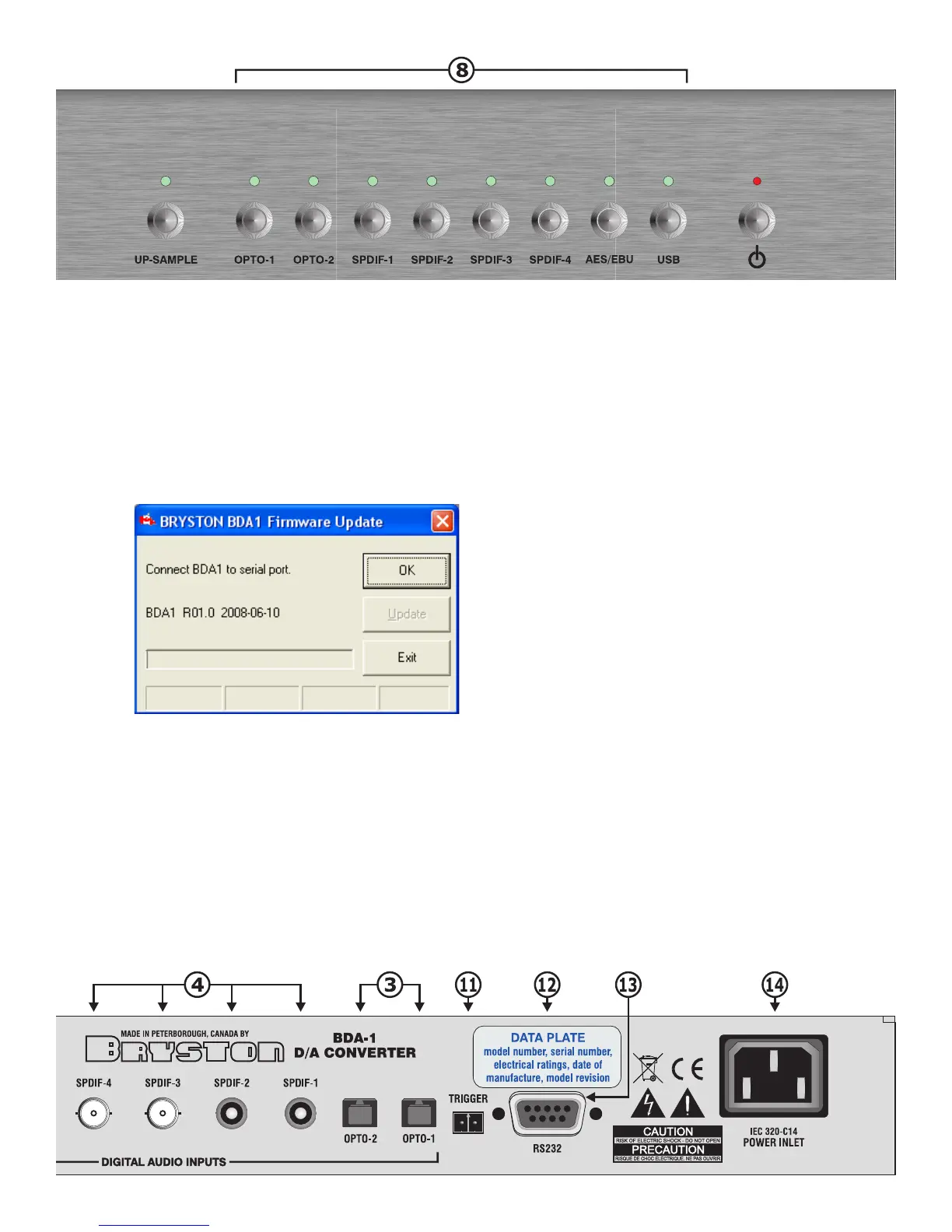

4) Upon execution the dialog box at the right will be
displayed. Click on OK and the program will search
for the BDA-1’s serial port via any available serial
port on your computer.
5) When the BDA-1’s serial port has been found, the
dialog box will indicate this by displaying the mes-
sage “BDA1 found on ComX”. Click on UPDATE to
initiate the update procedure.
6) When completed and the nal dialog box will
prompt you to click on EXIT to nish.
N.B. In some cases it may be necessary to obtain a
newer version of the Visual Basic control MSCOMM32.
OCX. Contact Microsoft if you see warnings or cautions
concerning this control.
14: IEC Power Inlet. Use only approved IEC-320 power cords
with C13 type connectors to mate with the BDA-1’s IEC-320-
C14 power inlet.
SPECIFICATIONS:
• Frequency Response (20-20KHz): ±0.1dB
• Signal to Noise (unweighted): -140dB
• THD Plus Noise: .002%
• IMD: .0003%
• Jitter: negligible
• Output Level: 2.3V Unbalanced,
4.6V Balanced
• Shipping Weight: 18 Lbs (8.2 Kg)
• Dimensions (inches):
17 (or 19)W • 11.25D • 3.125H
(cm)
43.2 (or 48.3)W • 28.6D • 7.9H
