BATTERY TYPES & CAPACITY
•
Suits all Lead Acid Type Batteries. (Conventional, AGM & Gel).
• Suits for Lithium (LiFePO4) battery.
• Battery Capacity:
Charge rate Battery capacity - charging Battery capacity - maintaining
2Amp 4-40Ah 4-80Ah
ELECTRICAL PARTS
Delivered with:
• Input Cord: 150 cm VDE cord with 3PIN plug.
• Output Cord: with quick connector.
• Extend Cord: 140 cm cord with battery clips.
ENVIRONMENTAL CHARACTERISTICS
•
Operating Temperature: 0 to 40° C.
• Storage Temperature: -25 to 85°C.
• Operating Humidity Range: 0 to 90% RH.
• Cooling: Natural cooling.
TECHNICAL SPECIFICATIONS
AC input 90~265Vac
Input Frequency 50/60Hz
Rated output 6/12V 2Amp x 3 channels
Suit for battery type Compatible for Lead acid or LiFePO4 battery
Power Efciency >80%
Charging stage Multiple – 10 stages
Start voltage 2.0V for 6V mode, 8V for 12V mode
Charging voltage 14.4V
De-sulphation I peak 0.2A
De-sulphation V max 16V
Float voltage – Lead acid battery 13.6V
Maintenance voltage – Lead acid batt. 13.0 – 13.8V
IP class IP22
Dimension L x W X H 20 x 13.3 x 4.3 cm
Voltages for 12V mode, x 1/2 for 6V mode.
OPERATING INSTRUCTIONS
STEP 1 - Pre-charge Check & electrolyte level check
• Check the Battery Electrolyte level for Lead acid battery (Not required on Sealed & Maintenance Free Batteries). If necessary,
remove the vent caps and add distilled water so the levels are halfway between the upper and lower ll lines.
• Check the 6/12V Switch on the charger and make sure it’s on the correct voltage.

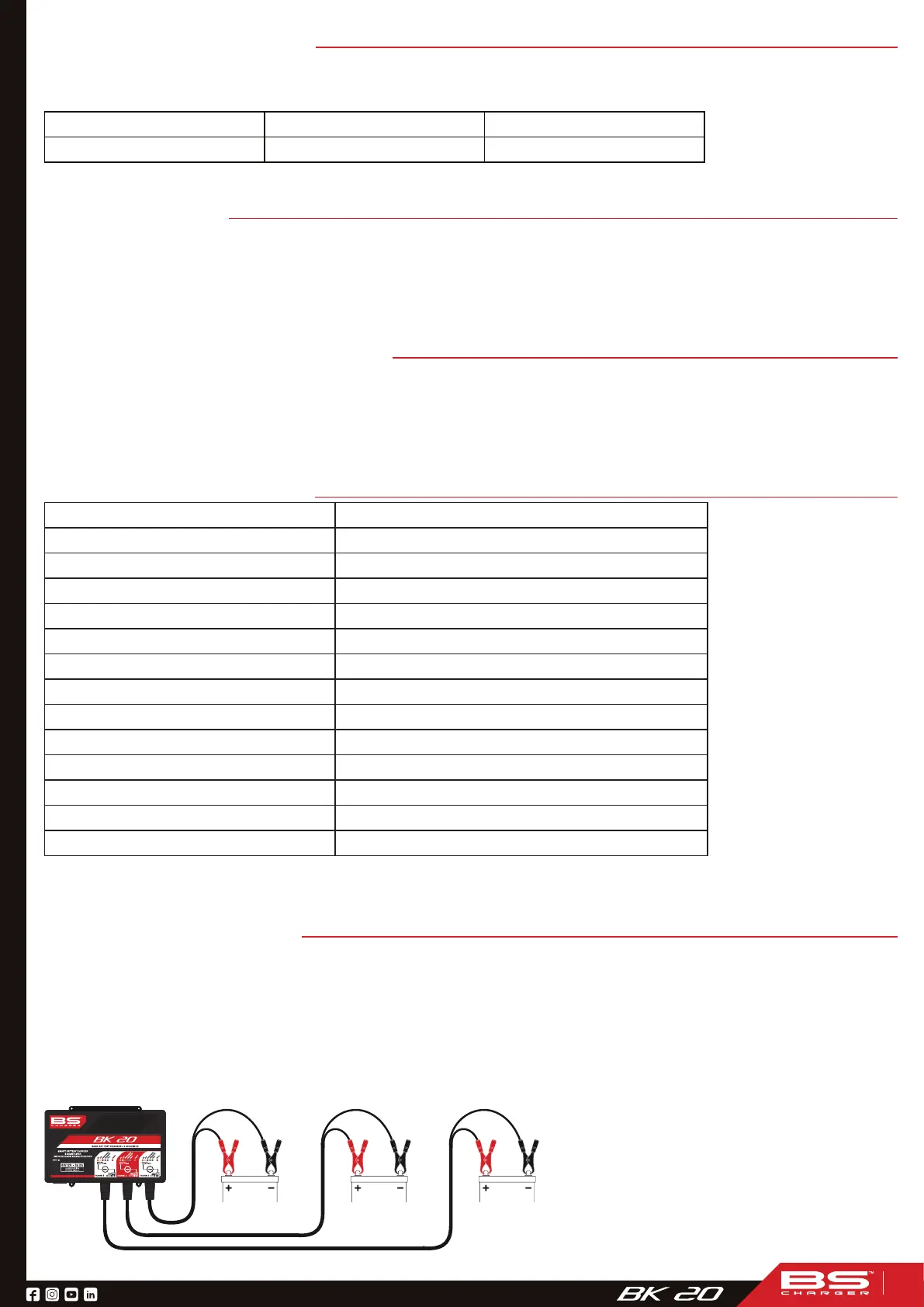

STEP 2 - Connecting the Bank Charger to your Battery
• Connect the Red lead from the charger to the positive (+) battery terminal.
• Connect the Black lead from the charger to the negative (-) battery terminal.
