BATTERY TYPES & CAPACITY
•
Suits all Lead Acid type batteries (Conventional, AGM & Gel).
• Suits for lithium (LiFePO4) battery.
• Battery capacity:
Charge rate Battery capacity - charging Battery capacity - maintaining
3Amp 4-60Ah 4-120Ah
ELECTRICAL PARTS
Delivered with:
• Input Cord: 183cm input leads with VDE plug.
• Output Cord: 122cm with quick connector.
• Extend Cord: 61cm with battery ring terminal / battery clips.
ENVIRONMENTAL CHARACTERISTICS
•
Operating temperature: 0 to 40° C.
• Storage temperature: -25 to 85°C.
• Operating humidity range: 0 to 90% RH.
• Cooling: natural cooling.
TECHNICAL SPECIFICATIONS
AC input 90~265Vac
Input Frequency 50/60Hz
Rated output 12V 3Amp
Suit for battery type Compatible for Lead Acid or Lithium (LiFePO4) battery
Power Efciency >80%
Charging stage Multiple – 9 stages
Start voltage 2V
Charging voltage 14.4V
Float voltage – Lead acid battery 13.6V
Maintenance voltage – Lead acid battery 13.0 – 13.8V
IP class IP22
OPERATING INSTRUCTIONS
STEP 1 - Pre-Charge Check & Electrolyte Level Check
• Check the Battery Electrolyte level for Lead Acid battery (not required on sealed & maintenance free batteries). If necessary,
remove the vent caps and add distilled water so the levels are halfway between the upper and lower ll lines.

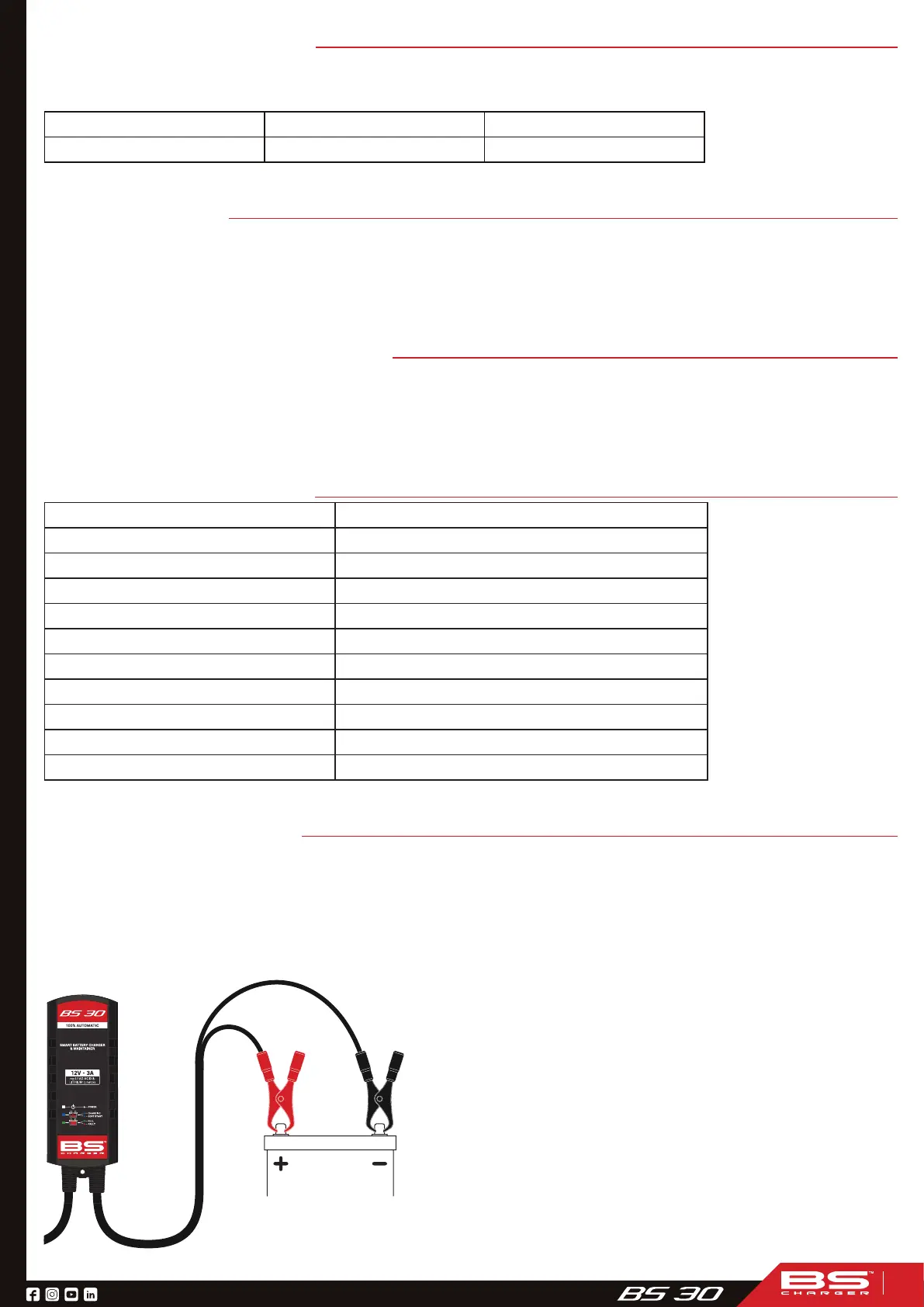

STEP 2 - Connecting the Battery Charger to your Battery
• Connect the Red lead from the charger to the positive (+) battery terminal.
• Connect the Black lead from the charger to the negative (-) battery terminal.
