UDR 208 WWW.BSTDJ.COM
©CopyrightLOTRONIC2014UDR‐208 Page7

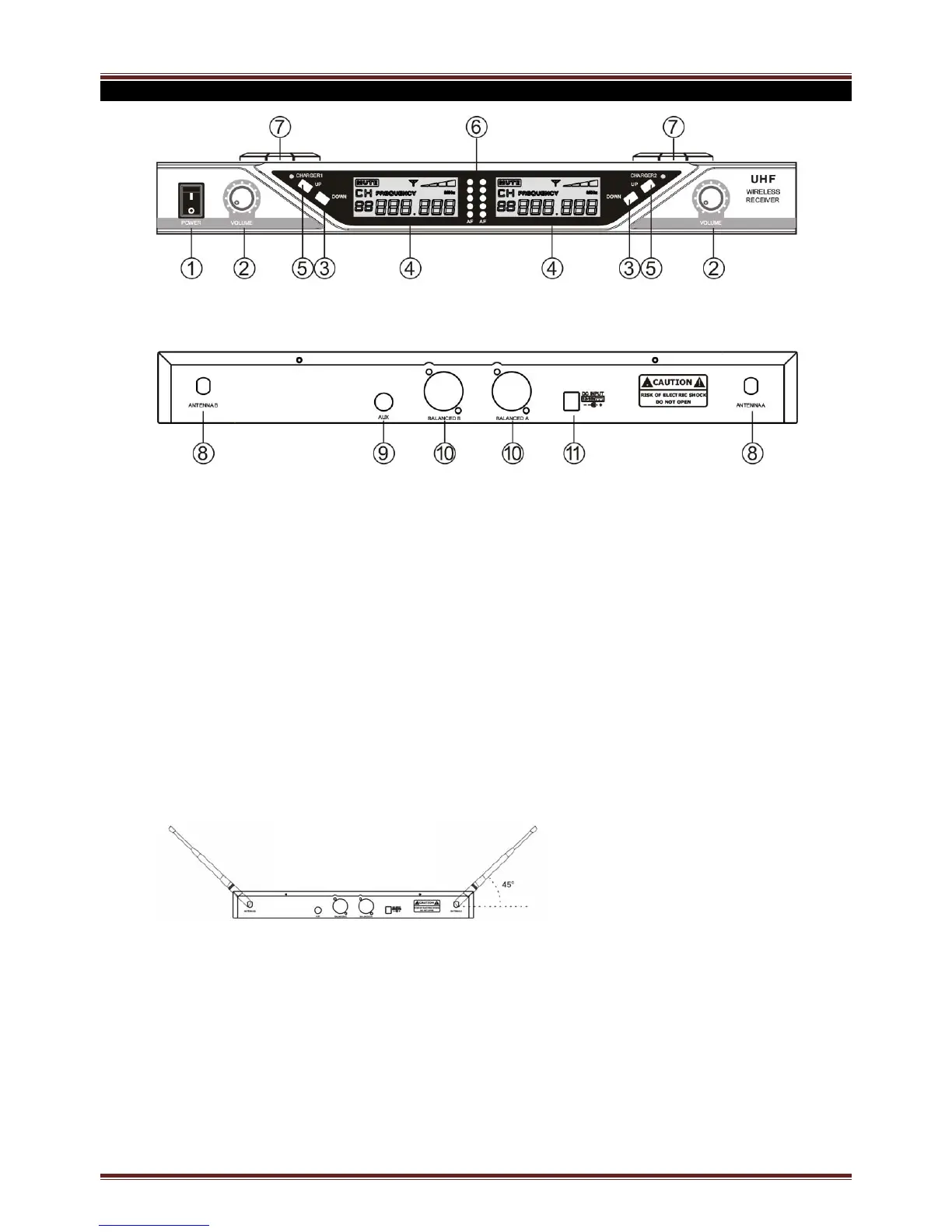

DESCRIPTION RECEIVER
1) Power button
Use to switch the receiver on or off.
2) Volume control
Used to adjust the volume of the output of the each channel of the receiver
3) Down button
Used to adjust the number of the wireless channel ( from 1 to 8 ) for each channel
4) Display
Show you the channel number ( from 1 to 8 ), the corresponding frequency and RF level
5) Up button
This button is used to select the wireless channel ( from 1 to 8 ) for each channel
6) AF led
These leds give you a visual information about sound level for each channel. If the led lights in red, that means the signal is too
strong. you must to decrease the volume
7) Charger
If you want to charge the handheld microphone, insert it on this hole. during the charger, the "charger" led flashes.
8) Antennas
Keep the position of antenna at a 45 angle from vertical, .(Shown as below)
9) Aux unbalanced output
This output is the mixes output. The output signal is the mix of the two channel signals. connect it to a mic input of a mixer
10) Channel balanced output
These outputs are channel outputs. connect it to mic inputs of a mixer
11) Power supply socket
Connect on this socket the power supply adapter ( 13-15V/1000mA AC/DC ).
