BTCPower EVP Series - EVP - 1001 - 00 Pedestal Mounted EVSE; Pedestal EVSE Installation Instructions; Special Tools; Tools and Ancillary Equipment

2.2 Special Tools
Tools and ancillary equipment
1. Pedestal unit
2. Philips head screw driver
3. Back cover key
4. Qty 4, 3/8” x 2” concrete expansion bolts (For use with EVP – 1001-00)
5. Qty 5, ½” x 2” concrete expansion bolts (For use with EVP – 1001-10)
6. Qty 6 ¼” lag bolt (For use with EVP – 2001-00)
7. Qty 6 ¼” type A flat washer
8. 3/8 inch torque wrench
9. ¼ inch torque wrench
10. 3/16 inch Allen Wrench for electrical connections
11. Each EVSE station will require a dedicated 208/240 VAC single phase circuit for each
charging station to be installed. Example: a dual charging station will required two
independent circuits
12. Crimp Ferrules for connecting input lines.
13. Installation manual
2.3 EVP – XXX
Pedestal EVSE Installation Instructions
Fig. 1

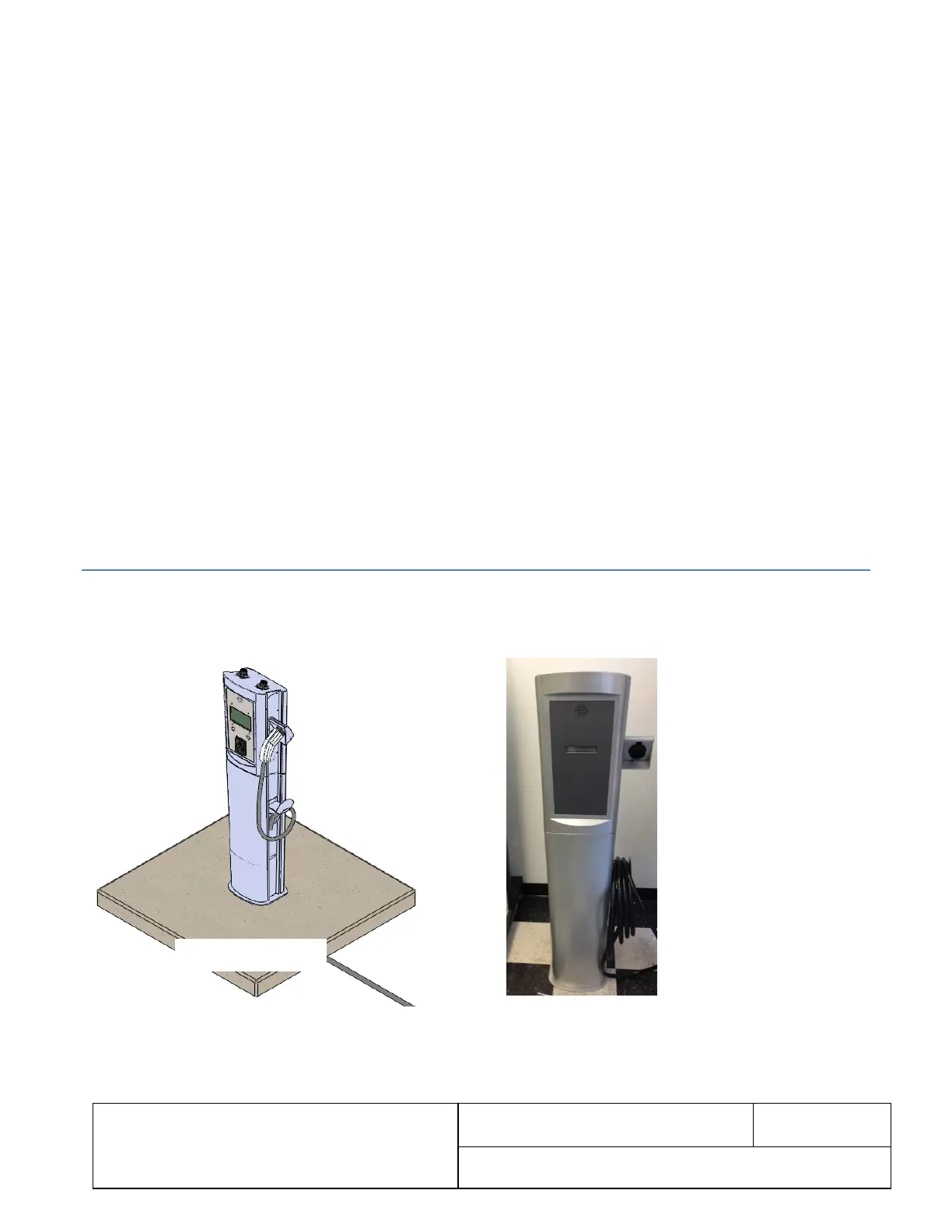

EVP – 1001 – 00 Pedestal mounted EVSE
EVP-1001-01 EVP-1001-01
EVP-1001-02
