Bticino 322011 User Manual

2
322011
11
9
8
4
67
5
3
2
1
10
A (mm) B (mm) C (mm)
120 314 55
A C
B
Digital colour entrance panel
with addresses list

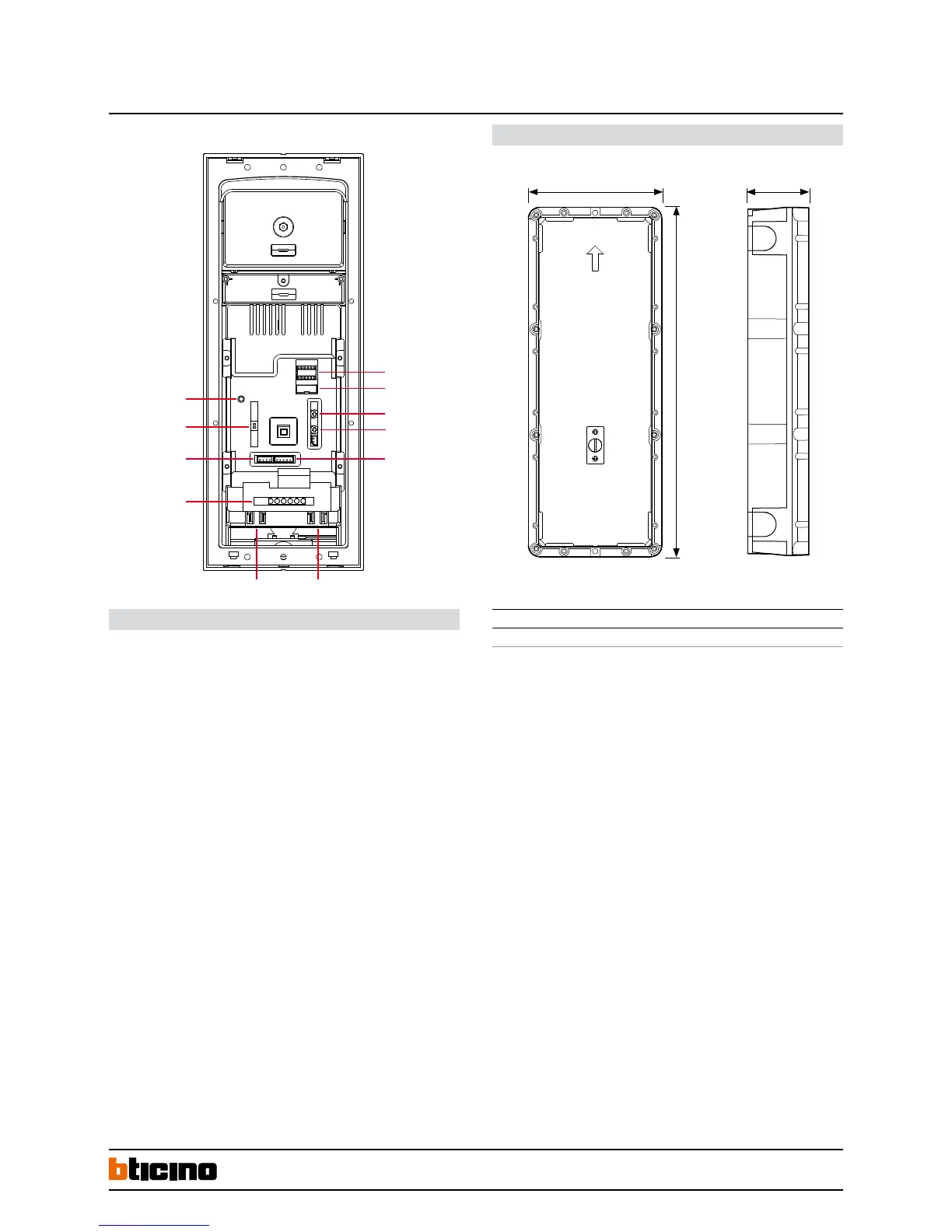

Rear view
Legend
1. NN RRRR: configurators housing
2. ISP: entrance panel software upgrade connector
3. SPK: loudspeaker volume adjust
4. MIC: microphone volume adjust
5. VIDEO-IN/GND/NC/+12V/LED : entrance panel camera and compensation Lamp
connector
6. RJ45 Targa module connection
7. RJ45 System BUS connection
8. 6 poles connector :
– +12V/GND power supply for access control module (Optional)
– UNLOCK signal output from access control module (Optional)
– DAS electronic lock status signal connector
– LOCK-/LOCK+ electrical door lock connection
9. SPK-OUT/GND/GND/SPK-OUT: entrance panel loudspeaker connections
10. (V-GAIN) video gain setting
11. Password RESET pushbutton
Flush mounting box - dimensional data
BT00853-a-EN 03/09/2014
