Strictly comply with instructions for installation and use.
1 Receiver description
A. Speaker
B. Melody selection (30 melodies available + MP3)
C. Volume control
D. Additional transmitter pairing
E. Light indicator setting
F. Micro USB socket
G. Indicator light (led)
2 Transmitter description
A. Name Plate
B. Weatherproof button
C. Light indicator
3 Transmitter / receiver pairing
Additional transmitters pairing: 4 maximum for 1 receiver (See procedure drawing 3)
4 Receiver installation: wall mounted/ free-standing
5 Transmitter installation: with screws / adhesive / free-standing
6 Changing Receiver / Transmitter Batteries
Do not use rechargeable batteries
7 Technical characteristics
Radio operating range: 200 m free elds
Receiver sound power: 80 dB
Receiver power supply: 3 x 1.5 V AA batteries (not included)
Transmitter power supply: 1 x 3 V battery (CR2032) included
Frequency band: 433.05-434.79 MHz
RF power level: < 10 mW
Degree of protection of doorbell: IP 54 - of the receiver: IP 20
8 Flashing light
9 MP3

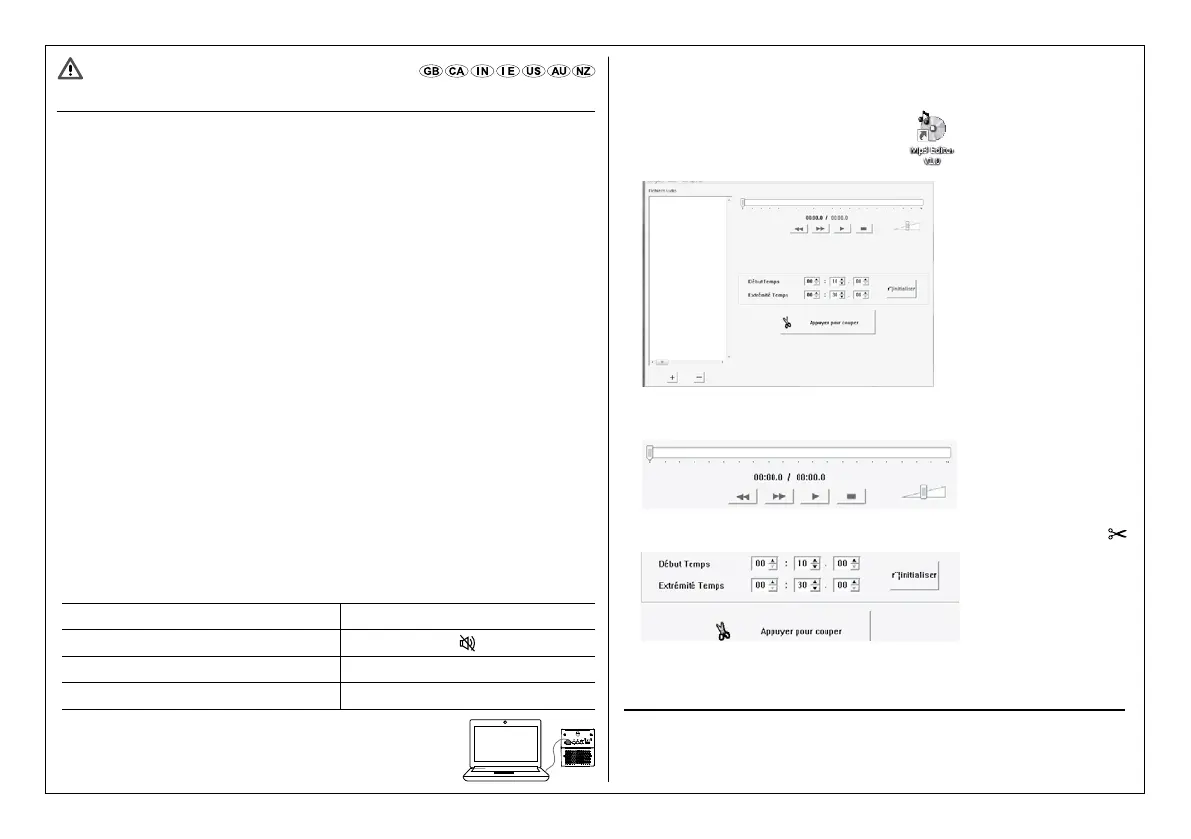

1 - Install the software on a computer using the USB cable
Supplied, from the internal memory of the chime
9 MP3 (continued)
2 - Click on the icon to launch the software
3 -
4 - Click + to import an MP3 melody in the selection window
5 - Select the melody and press play (mandatory 1 time)
6 -
Set the duration of your melody by selecting the beginning and the end and then click
7 - The software asks you to conrm where to save the new MP3 le: receiver memory
8 - To set the MP3 melody, select it with the B button
The undersigned, BTicino, declares that radio equipment of the type (393015D - 393015G)
complies with Directive 2014/53/EU.
The full text of the EU declaration of conformity can be found at:
www.bticino.com
Flashing Mode
Slow
Fast Someone rings
Alternating Low receiver battery
