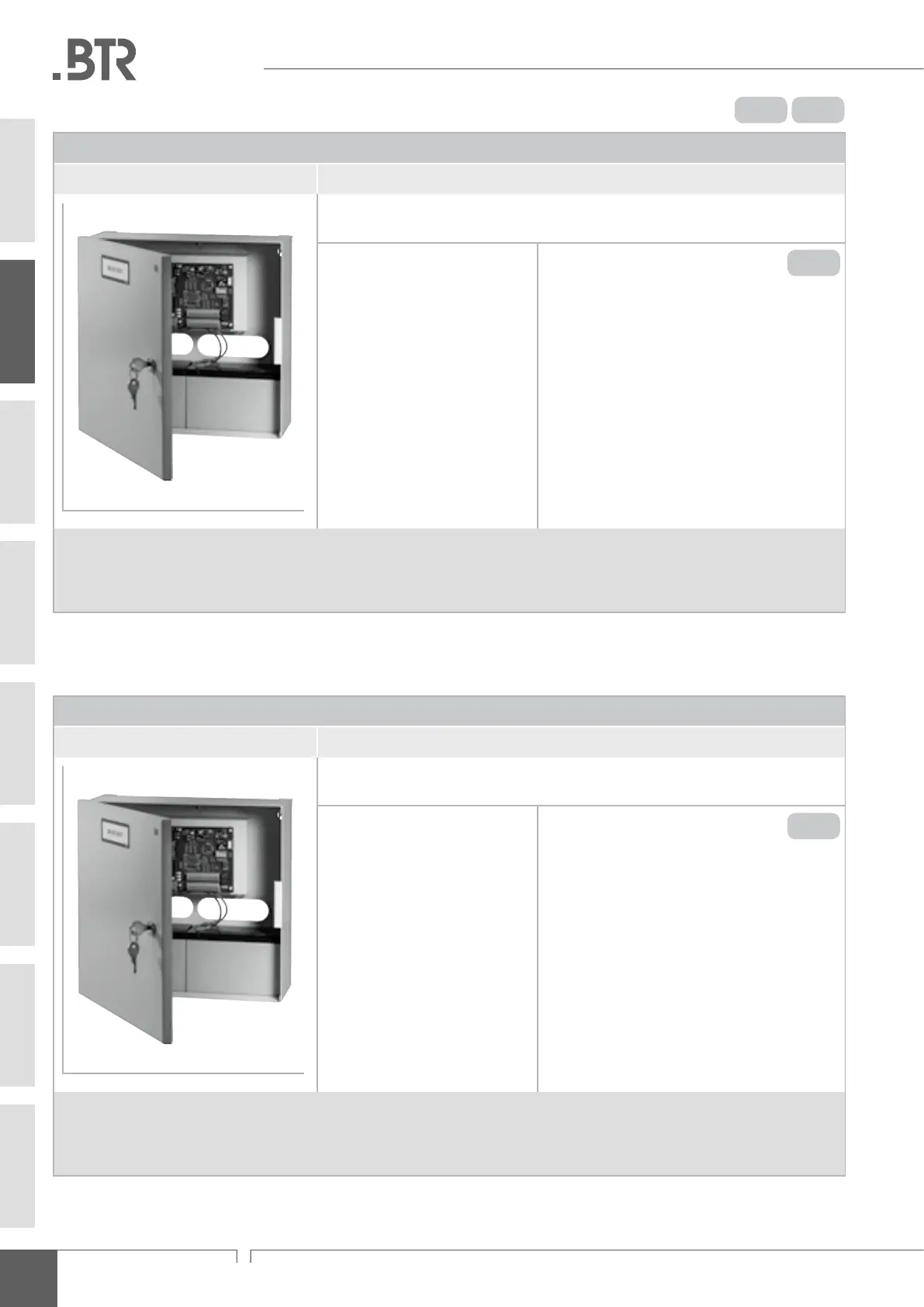

RWA - Control Unit BCR
Data sheet: 8 A And 12 A
Control Unit BCR 8 A - 0102
Article Application
Compact Control Unit for smoke and heat exhaust ventilation systems operating
with 24 V DC voltage, suitable for staircases.
Technical Data (Rated values)
Operating voltage:
Max. power consumption:
Output voltage:
Output current:
Ambient temperature range:
Protection rating:
Housing:
Dimensions (WxHxD):
Connection terminals:
Motherboard:
Part.-No. 60.102
230 V AC (195 – 253 V AC, 50 / 60 Hz)
299 W
24 V DC (20 – 28 V DC / 0,5 Vpp)
8,0 A
-5°C … + 40°C
IP30
Surface mounting, steel sheet,
RAL 7035 (light grey)
316 x 305 x 112 mm
1,5 mm² / Drives: 2,5 mm² (rigid wire)
1 RWA group / 2 Vent groups
Feature / Equipment
Cable entry from above / below / behind
Prepared for 2 maintanance-free backup accumulators 2x 12 V / 7 Ah (Part. Nr. 60.305)
Control Unit BCR 12 A - 0102
Article Application
Compact Control Unit for smoke and heat exhaust ventilation systems operating
with 24 V DC voltage, suitable for staircases.
Technical Data (Rated values)
Operating voltage:
Max. power consumption:
Output voltage:
Output current:
Ambient temperature range:
Protection rating:
Housing:
Dimensions (WxHxD):
Connection terminals:
Motherboard:
Part.-No. 60.103
230 V AC (195 – 253 V AC, 50 / 60 Hz)
460 W
24 V DC (20 – 28 V DC / 0,5 Vpp)
12,0 A
-5°C … + 40°C
IP30
Surface mounting, steel sheet,
RAL 7035 (light grey)
316 x 305 x 112 mm
1,5 mm² / Drives: 2,5 mm² (rigid wire)
1 RWA group / 2 Vent groups
Feature / Equipment
Cable entry from above / below / behind
Prepared for 2 maintanance-free backup accumulators 2x 12 V / 7 Ah (Part. Nr. 60.305)
8A
12 A
data sheet rWa - control unit BCR - 8 A
data sheet rWa - control unit BCR - 12 A
12 A8 A
02
