RWA - Control Unit BCR
Data sheet: 2 A And 4 A
4 A2 A

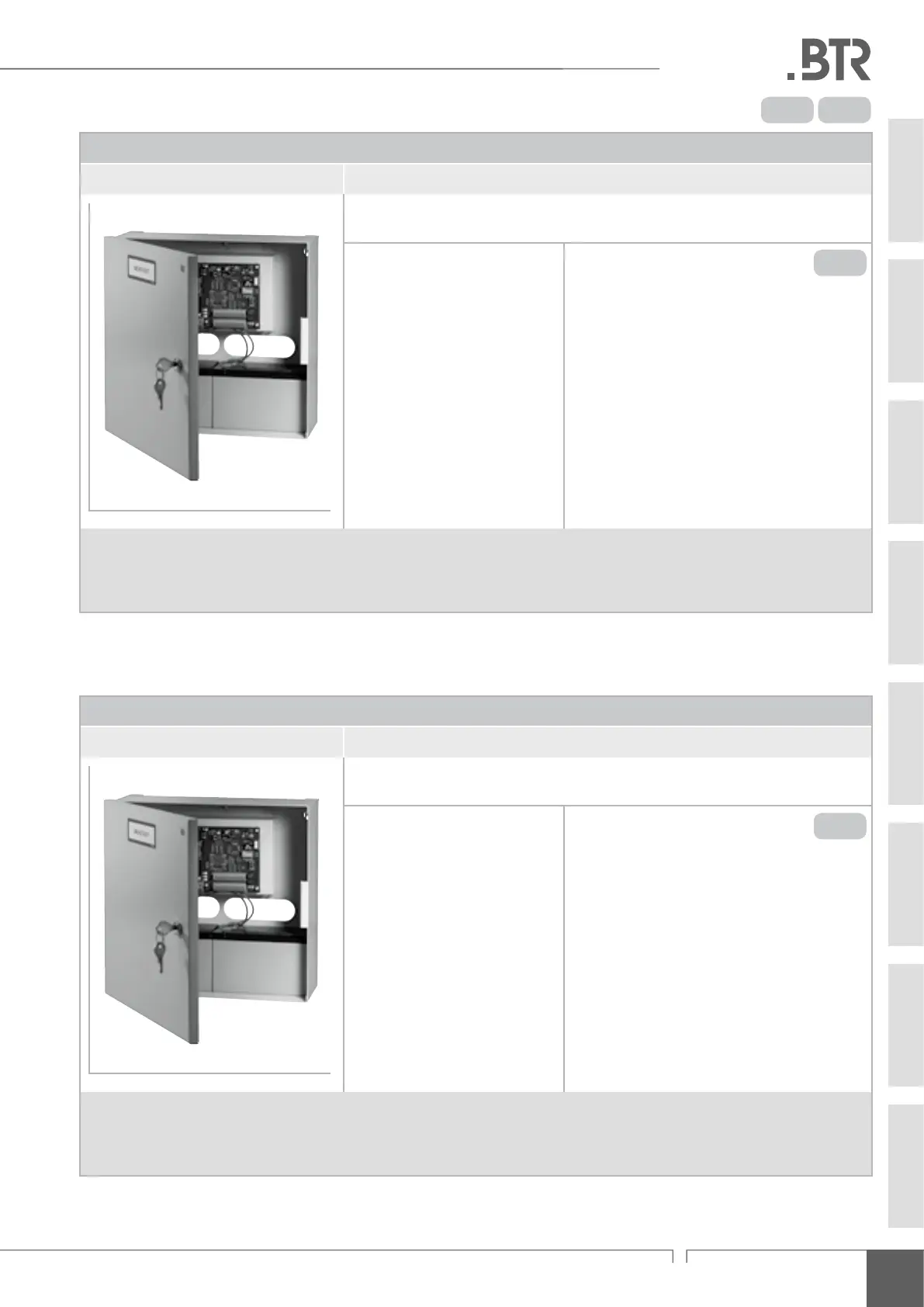

Control Unit BCR 2 A - 0101
Article Application
Compact Control Unit for smoke and heat exhaust ventilation systems operating
with 24 V DC voltage, suitable for staircases.
Technical Data (Rated values)
Operating voltage:
Max. power consumption:
Output voltage:
Output current:
Ambient temperature range:
Protection rating:
Housing:
Dimensions (WxHxD):
Connection terminals:
Motherboard:
Part.-No. 60.100
230 V AC (195 – 253 V AC, 50 / 60 Hz)
128 W
24 V DC (20 – 28 V DC / 0,5 Vpp)
2,0 A
-5°C … + 40°C
IP30
Surface mounting, steel sheet,
RAL 7035 (light grey)
316 x 305 x 112 mm
1,5 mm² / Drives: 2,5 mm² (rigid wire)
1 RWA group / 1 Vent group
Feature / Equipment
Cable entry from above / below / behind
Prepared for 2 maintanance-free backup accumulators 2x 12 V / 2,3 Ah (Part. Nr. 60.304)
Control Unit BCR 4 A - 0101
Article Application
Compact Control Unit for smoke and heat exhaust ventilation systems operating
with 24 V DC voltage, suitable for staircases.
Technical Data (Rated values)
Operating voltage:
Max. power consumption:
Output voltage:
Output current:
Ambient temperature range:
Protection rating:
Housing:
Dimensions (WxHxD):
Connection terminals:
Motherboard:
Part.-No. 60.101
230 V AC (195 – 253 V AC, 50 / 60 Hz)
276 W
24 V DC (20 – 28 V DC / 0,5 Vpp)
4,0 A
-5°C … + 40°C
IP30
Surface mounting, steel sheet,
RAL 7035 (light grey)
316 x 305 x 112 mm
1,5 mm² / Drives: 2,5 mm² (rigid wire)
1 RWA group / 1 Vent group
Feature / Equipment
Cable entry from above / below / behind
Prepared for 2 maintanance-free backup accumulators 2x 12 V / 2,3 Ah (Part. Nr. 60.304)
2 A
4 A
data sheet rWa - control unit BCR - 2 A
data sheet rWa - control unit BCR - 4 A
