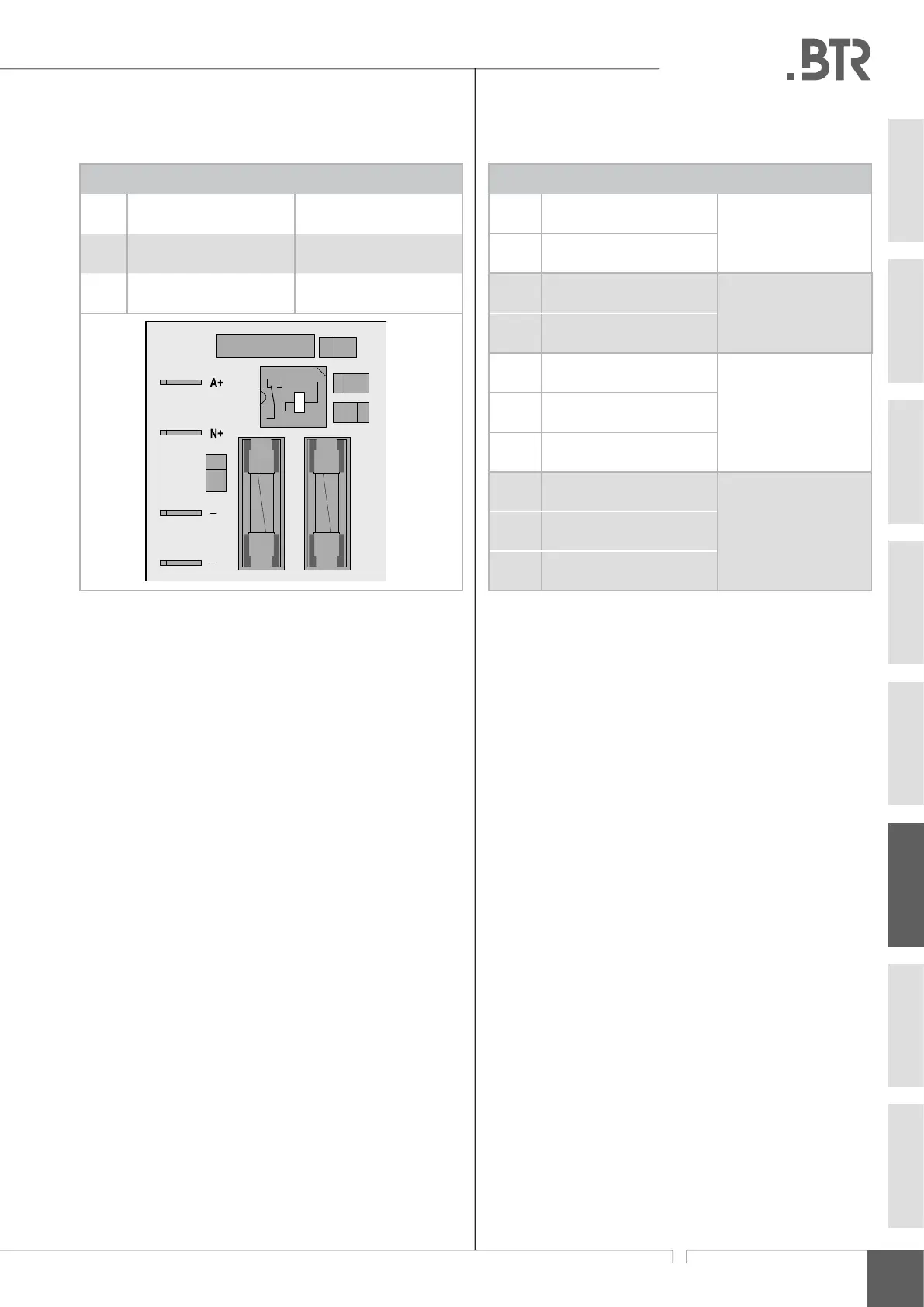

RWA - Control Unit BCR
fuses
Fuse
F 1 Automotive Blade Fuse 5,2 x 0,64 mm
F 2 Glass Cartridge Fuse 5 x 20 mm
F 3 Glass Cartridge Fuse 5 x 20 mm
RWA - Control Unit BCR
F 1 5 A (accumulators)
BCR 2A - 0101
F 2 3,15 AT (drives)
F 1 5 A (accumulators)
BCR 4A - 0101
F 2 6,3 AT (drives)
F 1 10 A (accumulators)
BCR 8A - 0102
F 2 10 AT (drive 1)
F 3 10 AT (drive 2)
F 1 20 A (accumulators)
BCR 12A - 0102
F 2 10 AT (drive 1)
F 3 10 AT (drive 2)
06
L1
open
L1
close
red: open
green: close
Drive 1 Drive 2
F1
F2 F3
fuses
