3.Operation instructions
3.1. Product panel description

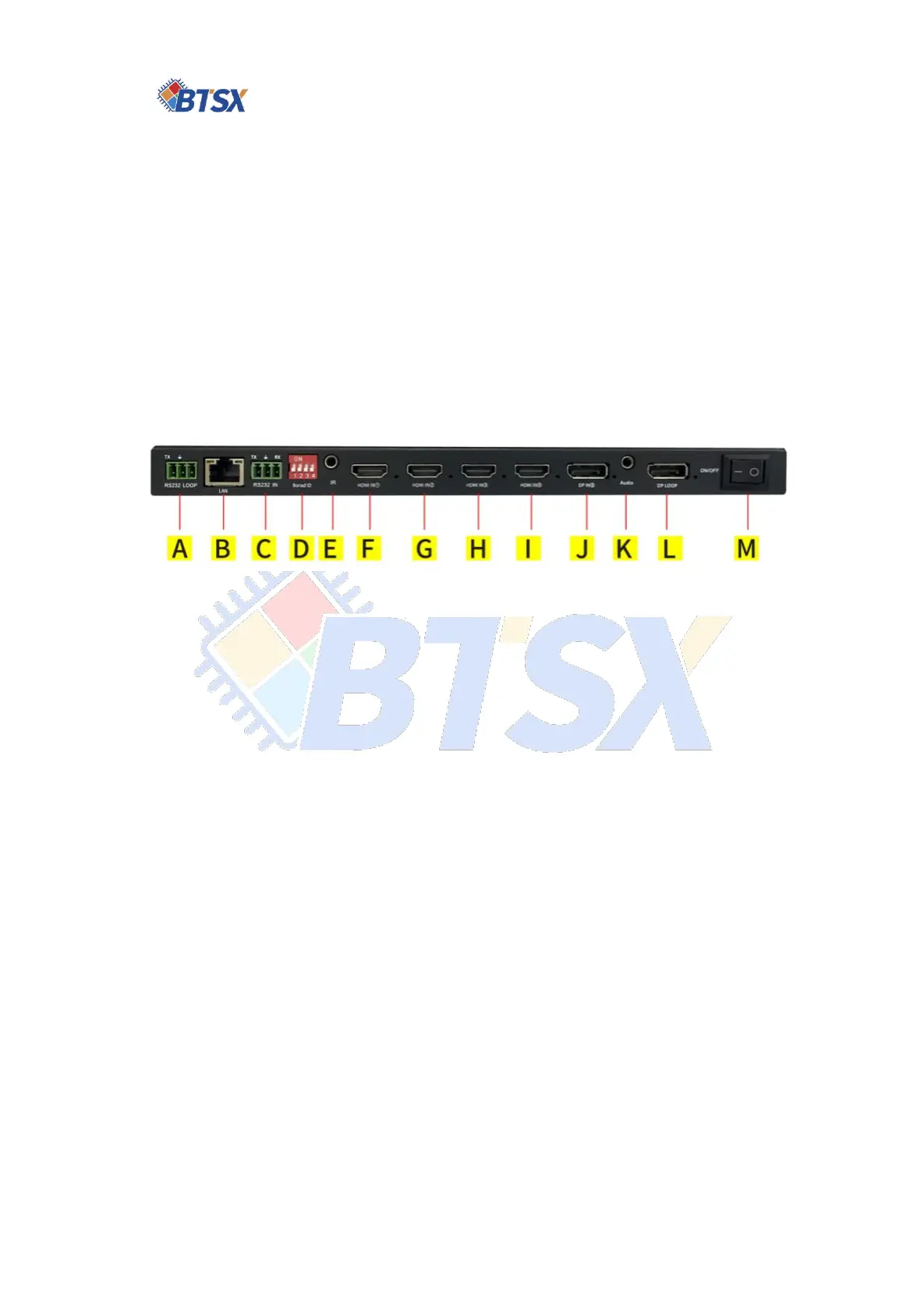

BIT_V409R front panel
A: Industrial seat, RS232 control loop out, used in cascade mode to loop out RS232
commands to the next device.
B：Network interface, TCP network protocol, is used for the control system to issue
instructions to control the device.
C：Industrial seat, used for RS232 control, used to issue RS232 commands.
D ： Dip switch (Board id): indicates the ID of the current device in cascade
mode.V406 does not support this function, only V409 supports it.
E：IR is used for receiving remote control signals,Need external IR receiver.
F, G, H，I: 4 HDMI input ports, of which I port is 4K60, F/G/H port is 4K30, suitable
for graphics card output on PC host or other devices. There is an LED light next to
