interface.The light is on, indicating that there is a signal output from the HDMI
interface.

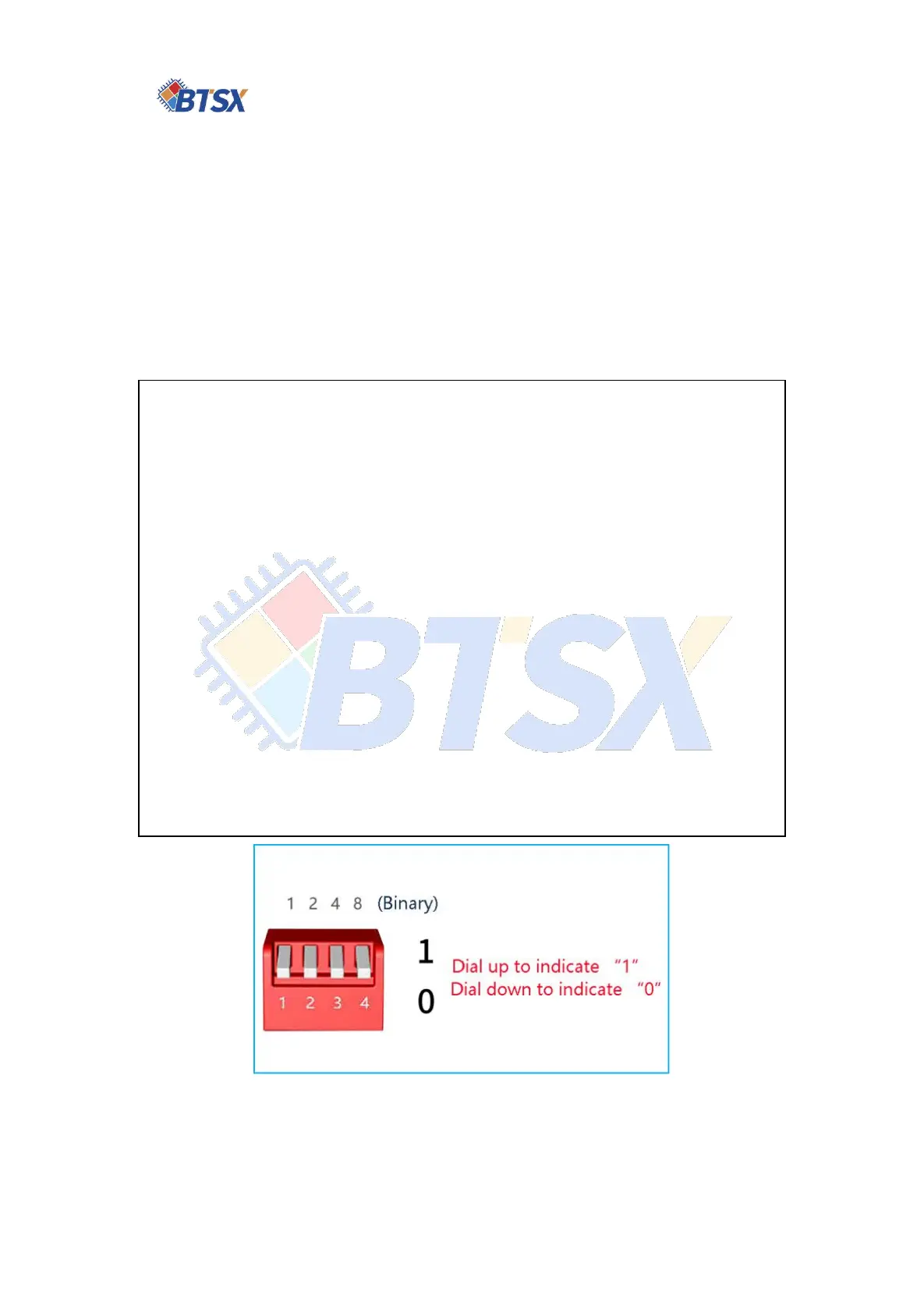

Note 1: DIP switch,when cascading, it indicates the ID number of the current device,
which is set in binary.
ID number
Binary
ID number
Binary
Device 1
1000
Device 9
1001
Device 2
0100
Device 10
0101
Device 3
1100
Device 11
1101
Device 4
0010
Device 12
0011
Device 5
1010
Device 13
1011
Device 6
0110
Device 14
0111
Device 7
1110
Device 15
1111
Device 8
0001
