10 Spare parts
31 K-350 Operation Manual, Version G
14
Table 10-1: Spare parts K-350 (cont.)
Product Order number
n Drip tray 43302
Caps for 20 l tanks, large (2 pieces) 43478

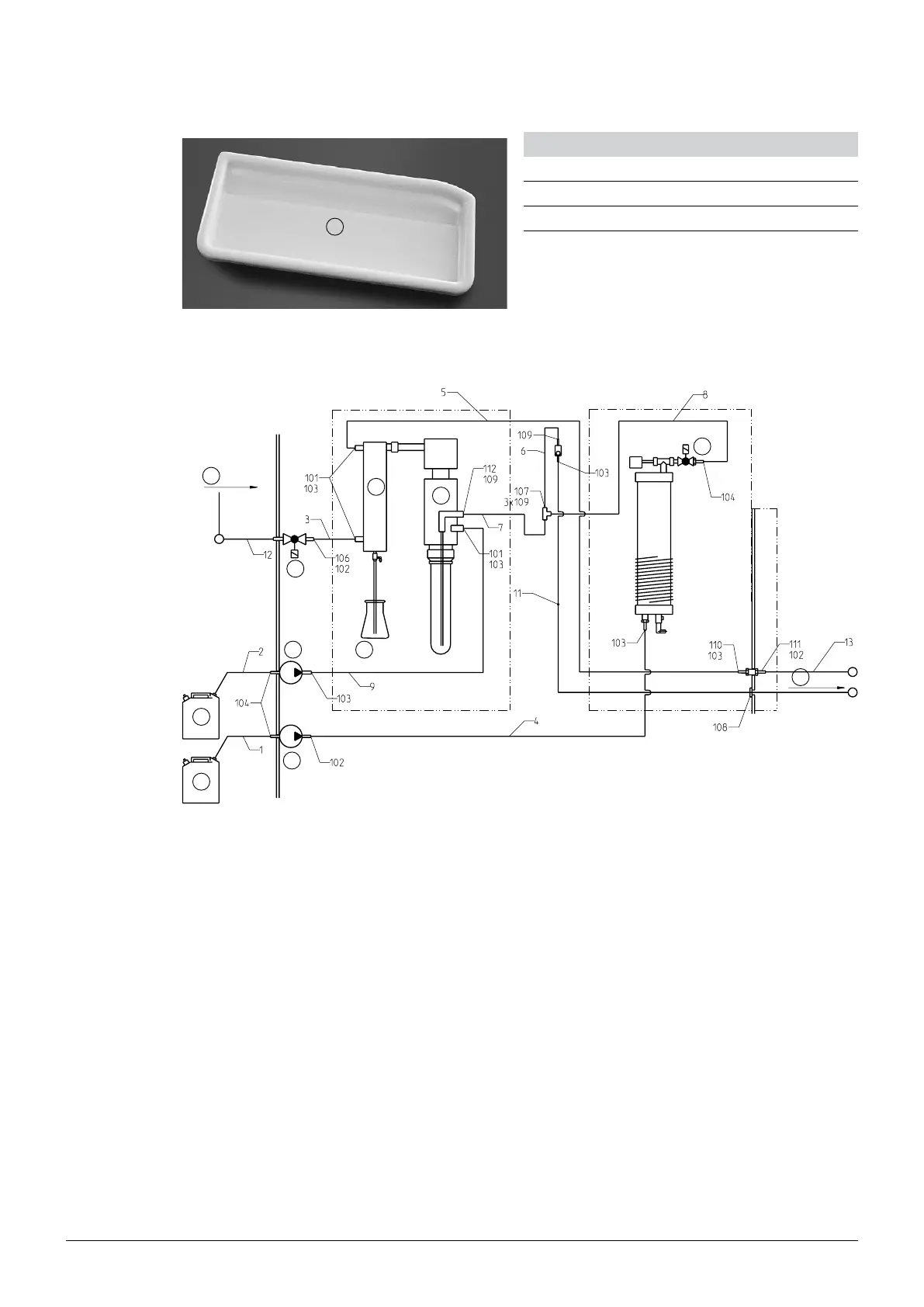

10.2 Hosing connection scheme
2
3
4
5
6
7
8
9
10
11
1
a Inlet
b NaOH tank
c H
2
O tank
d Valve cooling water in
e Pump NaOH
f Pump H
2
O steam generator
g Cooler
h Receiving vessel
i Splash protector
j Valve steam
k Output
Fig. 10.1: Hosing connection scheme
