ZC·2·01/26000·B
A CAUTION: Refer to chimney maufac
o
turers instructions for assembly anj
disassembly of chimney parts. Be sure
to follow chimney instructions for pro-
per clearances
to combustibles and pro-
per air spacing required.
Chlmnev Cap
- Stolm Collal
Hoof Ftas'uo~
Chimney Pipe
~~~?1~rr:- Use File Code Sheel Rock
NOTE:
A Double Header mus, be used on a
load hearu1Y wall as. Illustrated In
Figure 3
2" )( 4·' SlucJdmg
~-- A Smgle Header must be Installed
abolle caoHlet
VertIcal 2" J: 4'''5 must be turned f1al
Note:
.-_._-- Finished wall must be 2
1
/," If\ front of
lace of ze, Cabmet ~Wllhoul hood
It 1m a Itactled)

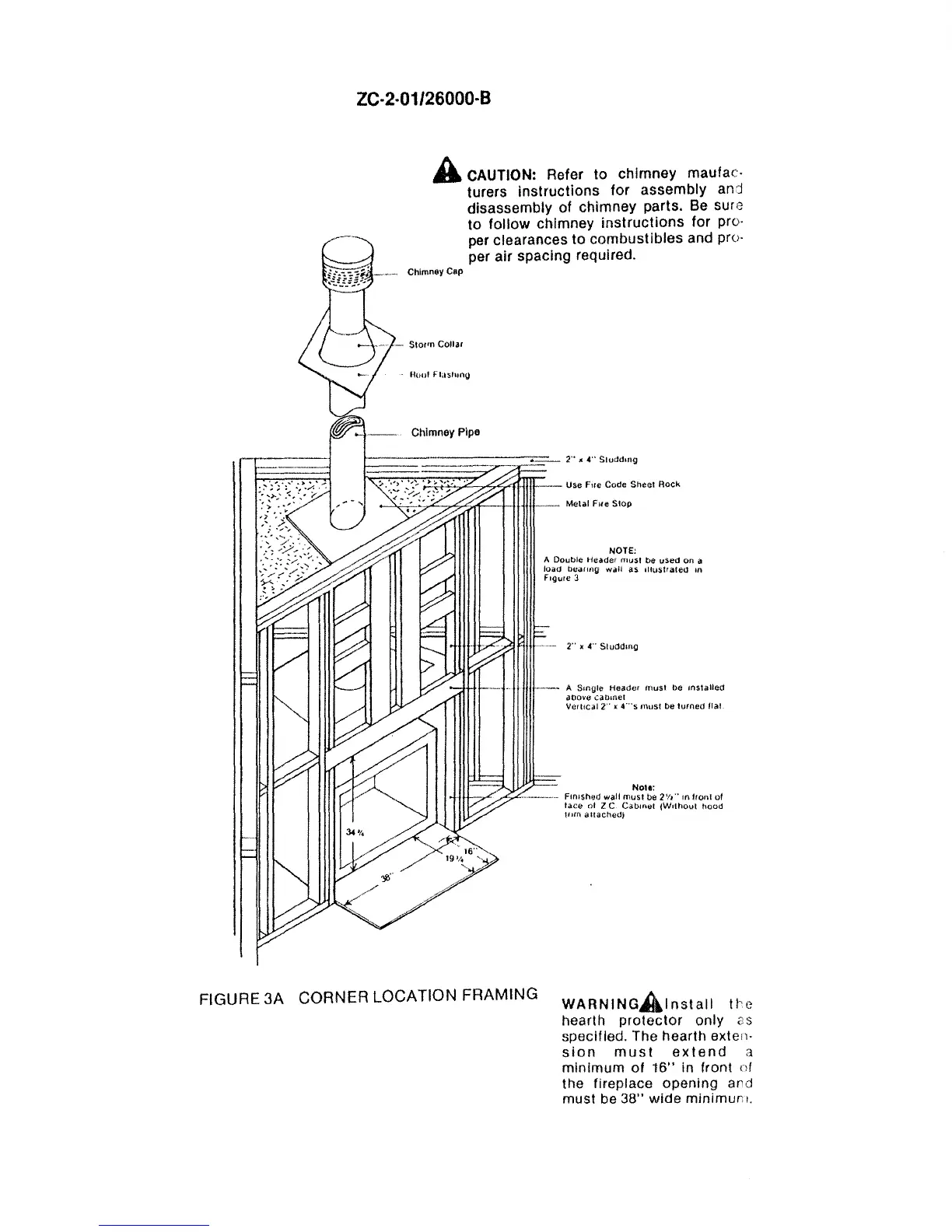

FIGURE 3A CORNER LOCATION FRAMING
WARNINGAlnstal1 the
hearth protector only as
specified. The hearth exten
o
sion must extend a
minimum of
16" in front of
the fireplace opening and
must
be 38" wide minimum.
