ITEM%#%CKN P L KR %In st ru ct ion %Manual% %
%
%
%

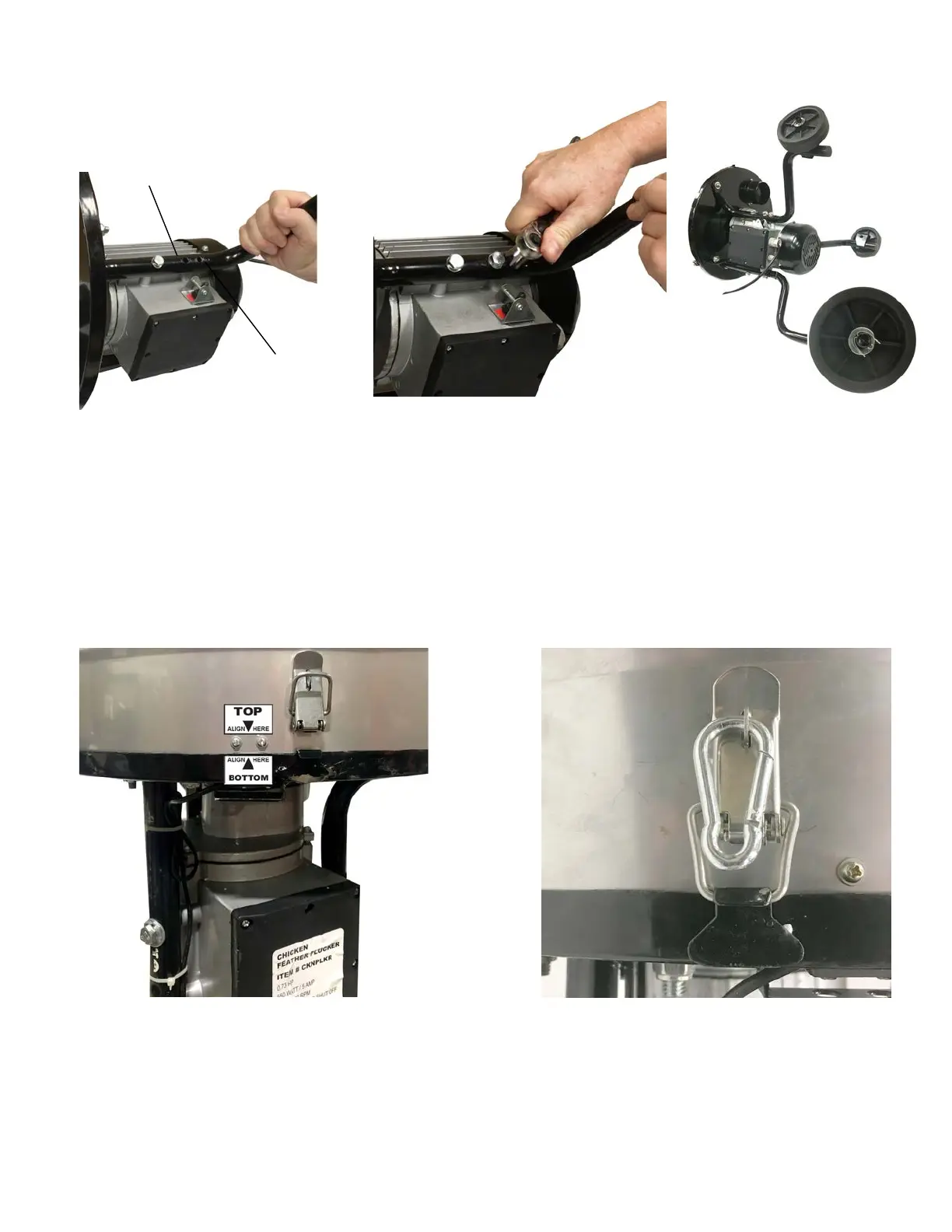

Place motor on tabletop, and slide
legs into brackets. Use the LONG
length bolt at the bottom, and use
the MEDIUM length bolt at the top.
Use 13mm and 14mm socket wrench
to secure legs. Do not overtighten.
Lower the drum onto the motor. Be certain to align the
Top to Bottom, as indicated above. This positions the
Magnetic Safety Switch which is a device that
prevents the unit from running if not aligned properly.
Attach tub to the feather pan, then secure
with the three buckle clamps and carabiners.
Attach two wheels, and
insert cotter pins to secure
each wheel to leg brace.
ASSEMBLY INSTRUCTIONS
Identify all parts before assembly.
