TWPUMP 2-Inch Semi Trash / Water Pump Assembly And Operating Instructions
6
FEATURES
2
-Inch (50mm) Inlet & Outlet
Max. Lift Head: 85 Ft (26m)
Max. Suction Head: 26 Ft. (8m)
Pump Speed
3,600 RPM
Flow :
10,950 x 85% GPH @ 0 Lift
3,000 x 85% GPH @ 70 Ft. Lift
Cast Iron Propeller
COMPONENTS
1) Tube Frame
2) Pull Start Handle
3) On/Off Switch
4) Oil Reservoir
5) Fuel Tank
6) Water Inlet
7) Priming Cap
8) Water Outlet
9) Fuel Cap
10) Air Filter Assembly
GENERAL PRODUCT SPECIFICATIONS
PACKAGE CONTENTS
1) 2
-Inch (50mm) Semi Trash / Water Pump
SPECIFICATIONS
Engine
4-Stroke
Engine Type
Gasoline, 87 Octane
Engine Displacement
196cc
Gasoline Capacity
0.95 Gallons (3.6 liters)
Engine Oil
SAE 5W-30
Engine Oil Capacity
18.5 oz. (0.55 liters)
Horsepower
7.0 HP
Displacement 145 Gal/Minute (550 L/minute)
ASSEMBLY
The Intake
Filter (A) prevents damaging
particles from
“entering” the Water Pump.
Connect the I
ntake Filter (A) to the end of a
2
-inch hose with a Hose Clamp (B).
Place the Hose Coupling (D) and secure it to the
other end of the hose with a Hose Clamp (
B).
Then
connect the entire assembly to the pump
intake
Joint (H) with a Gasket (F).
The
Outlet Side discharges water as it “exits”
the Pump.
To attach the outlet hose
to the Joint (H),
connect the hose to the pump outlet using a
Hose Clamp (
B) and Gasket (F).
A
B
B
B
INTAKE SIDE
OUTLET SIDE
1
2
3
4
5
6
7
10

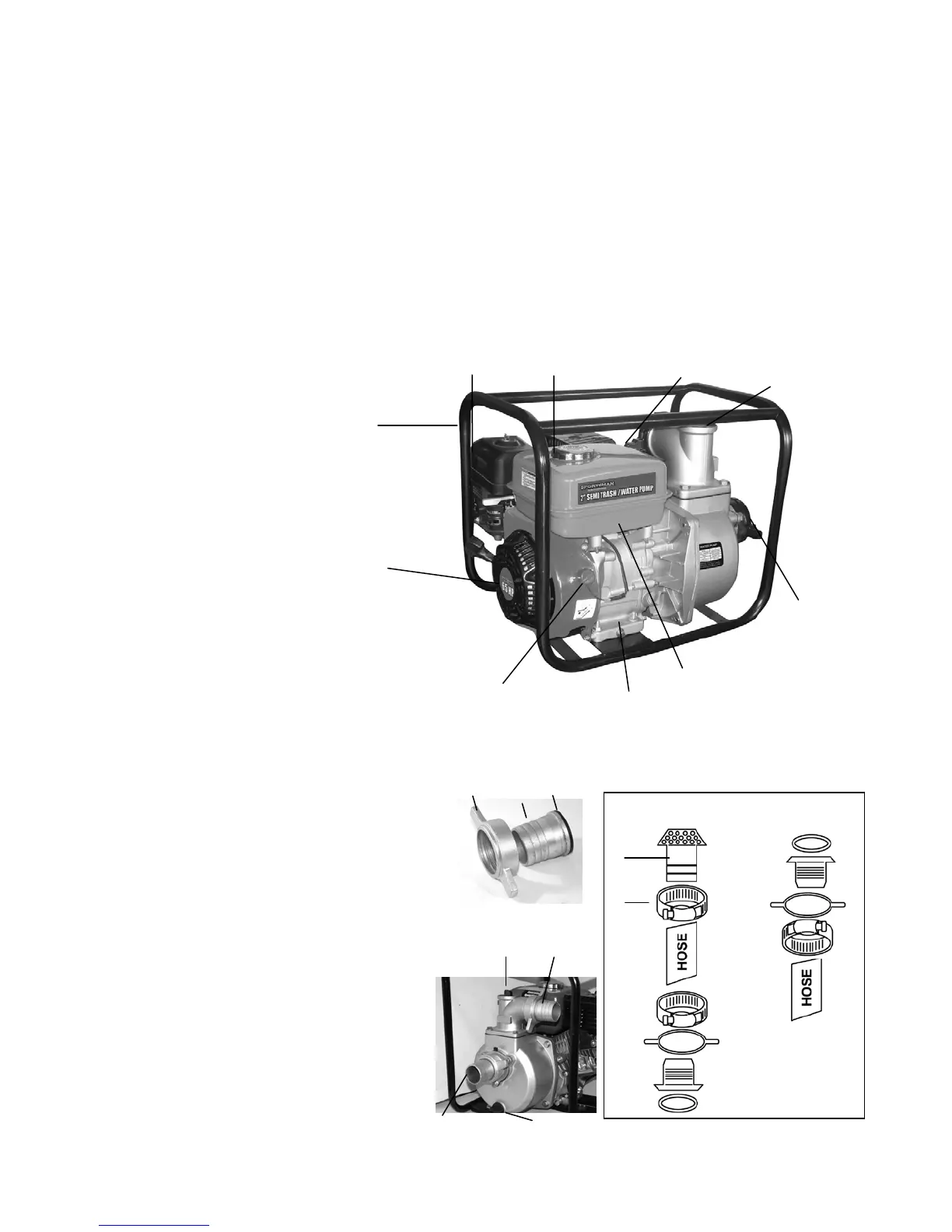

Figure 1
Connection to Pump
D
F
F
H
D
H
D
H
F
Outlet
Intake Joint (H)
Drain Plug
Priming
Cap
9
8
