#360 Grain Cleaner
- 6 -
MODEL #360 GRAIN CLEANER ASSEMBLY INSTRUCTIONS – cont’d.

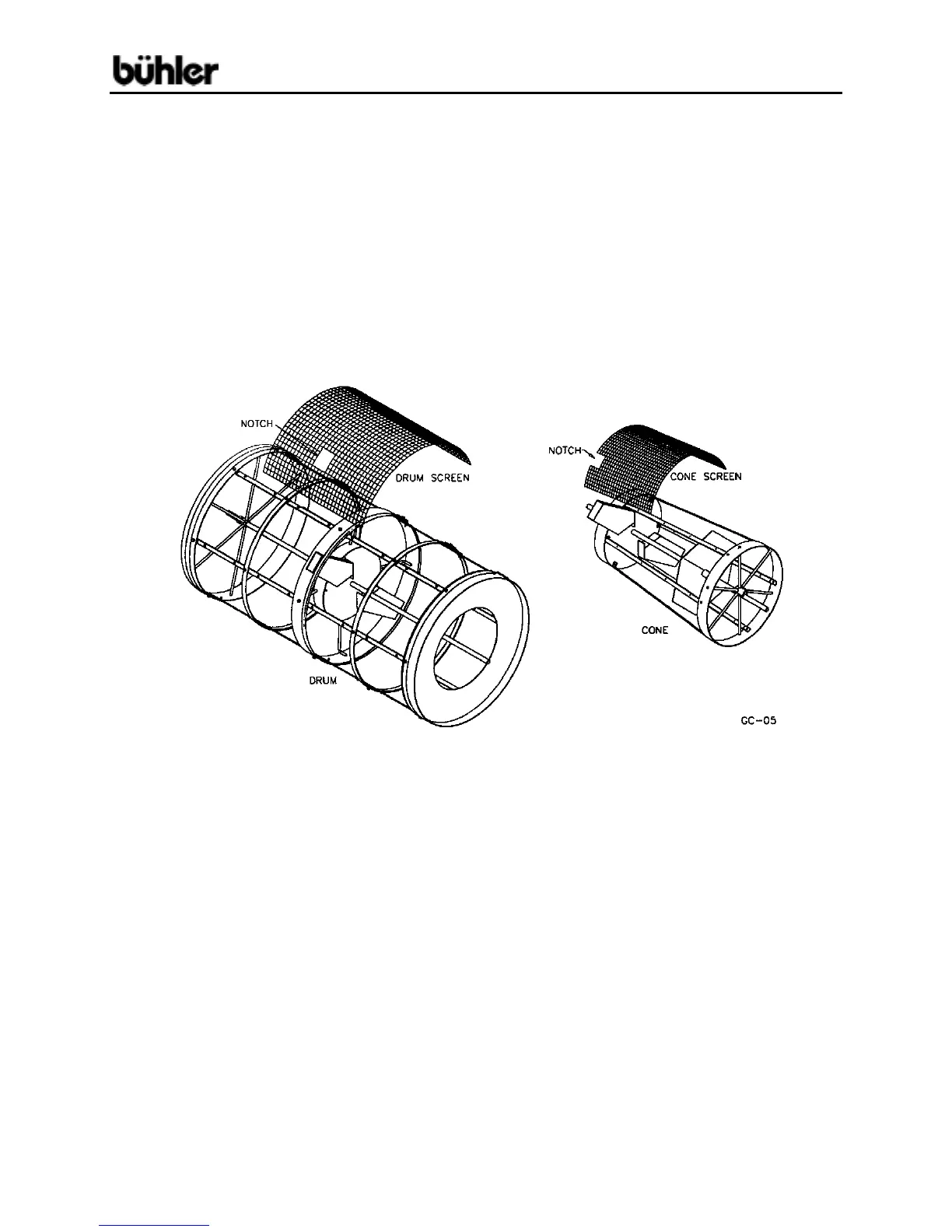

Both drum screens must also be notched to fit around the trash outlets as shown
in the drawing below. A convenient way to hold the screen in position during
assembly is by hooking several small springs across the lap joint. Two springs to
hold the screen in place (#87) are included in the bag with each cleaner. After
notching, pin the screens to the outer drum with ¼” x ¾” self-tapping screws and
flat washers. Before fastening screen, be sure that the screen is flat against the
drum rings and the screen supports all the way around the drum. Straps (#77)
are fastened around the screens at the front and back rings, on each side of the
trash outlets on the center ring and around each of the drum screen support rings
(#71). Tighten straps and insert the remaining self-tapping screws.
10. Insert the discharge pan (#8) into the rear frame between the frame sides and
the top and center cross braces. Bolt to frame sides using ¼” x 2" cap screws,
lock washers, flat washers and hex nuts. Fasten top edge of discharge pan to
the top cross brace on the rear frame using ¼” x ¾” self-tapping screws. Fit the
rear drum shield (#9) around the rear of the drum and fasten to the top of the rear
frame using ¼” x ¾” self-tapping screws. The rear drum shield is also bolted to
the discharge pan using ¼” x ¾” cap screws, lock washers and hex nuts. Mount
the pulley guard (#17) to the front frame by bolting it to the angle irons welded to
the ends of the center cross brace using 5/16" x ¾” cap screws, lock washers,
flat washers and hex nuts. Fasten the intake pan (#10) under the top cross
brace of the front frame using 3/8" x ¾” cap screws, lock washers and hex nuts.
11. Intake Auger (Optional)
Insert the intake auger swivel (#37) into the intake auger pivot (#36), which is
already bolted to the top of the front frame. Bolt the intake auger connector plate
(#40) to the intake auger using 3/8" x ¾” cap screws, lock washers and hex nuts.
Join the intake auger connector plate and the intake auger swivel with a
½” x 7 ½” pin (#38) and cotter pin.
