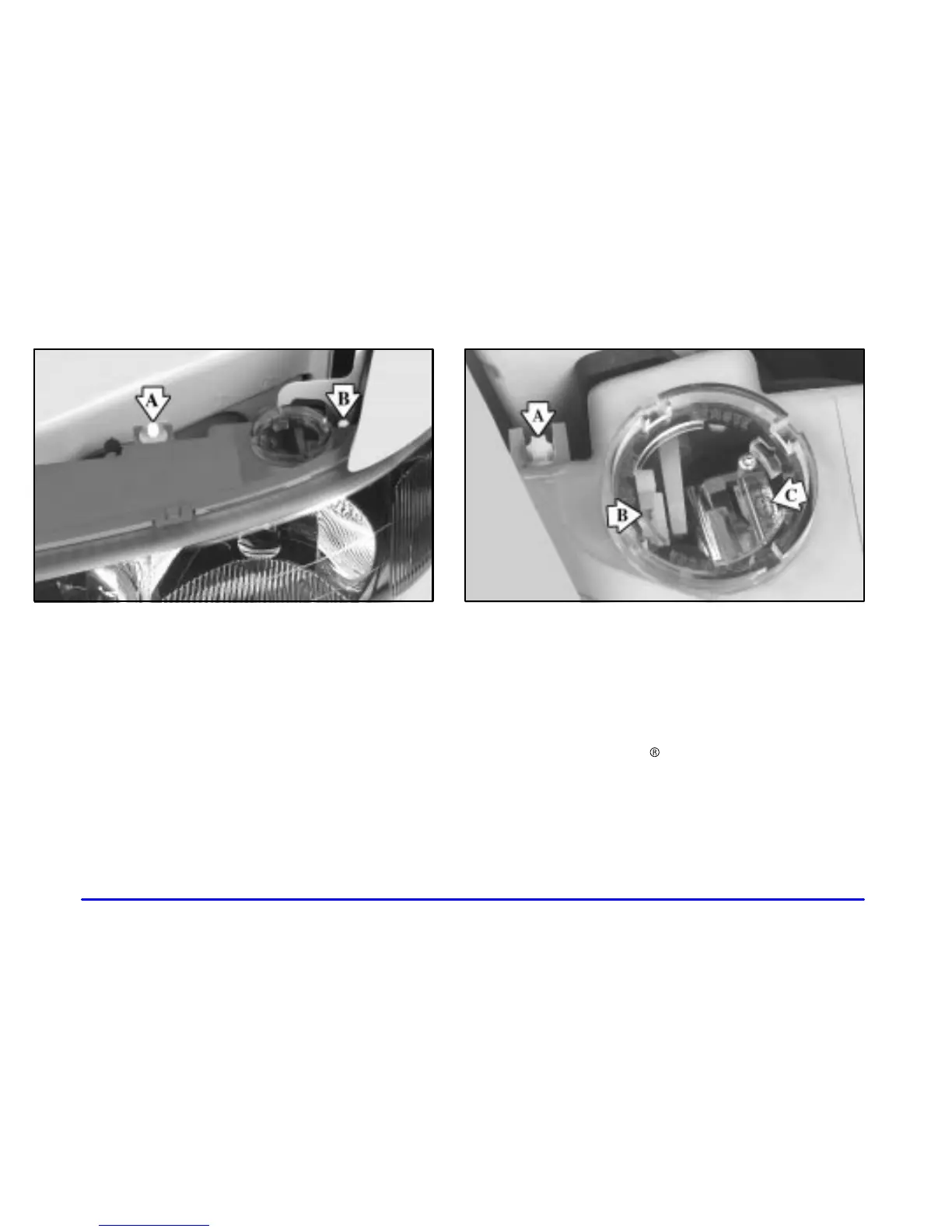

Driver’s Side Headlamp Shown
A. Vertical aim adjustment screw
B. Horizontal aim adjustment screw
Open the hood and locate the vertical and horizontal aim
indicators. The aiming screw for the vertical aim
indicator (A) is at the center of the headlamp cover and
the aiming screw for the horizontal aim indicator is on
the outboard side of the headlamp cover (B).
Passenger’s Side Headlamp Shown
A. Horizontal aim adjustment screw
B. Horizontal block index plate
C. Vertical aiming level
Start with the horizontal aim. The adjustment screws can
be turned with an E8 Torx
R
socket.
