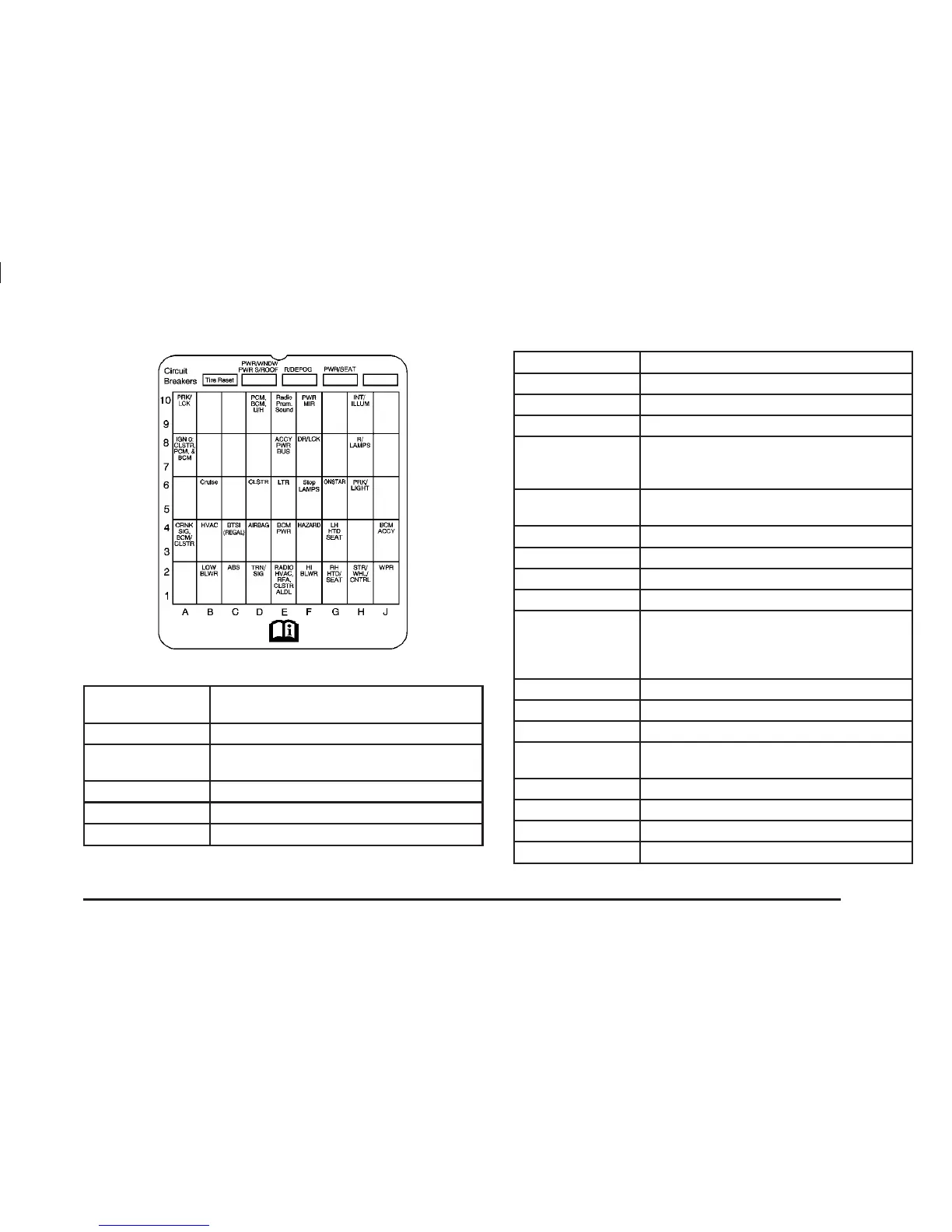

Circuit
Breakers
Usage
TIRE RESET Tire Inflation Monitor Reset Button
PWR/WNDW
PWR S/ROOF
Power Windows, Power Sunroof
R/DEFOG Rear Window Defogger
PWR SEAT Power Seat
Blank Not Used
Fuses Usage
PRK/LCK Ignition Key Solenoid
Blank Not Used
Blank Not Used
PCM, BCM,
U/H
Ignition Signal: Hot in Run and Start,
Powertrain Control Module, Body
Control Module, Underhood Relay
RADIO PREM.
SOUND
Remote Radio Premium Sound
PWR MIR Power Mirrors
Blank Not Used
INT/ILLUM Panel Dimming
Blank Not Used
IGN 0: CLSTR,
PCM & BCM
Ignition Signal: Hot in Run, Unlock
and Start, Cluster, Powertrain
Control Module, Body Control
Module
Blank Not Used
Blank Not Used
Blank Not Used
ACCY PWR
BUS
Interior Lamps
DR/ LCK Door Locks
Blank Not Used
R/LAMPS Taillamps, License Plate Lamps
Blank Not Used
5-99
