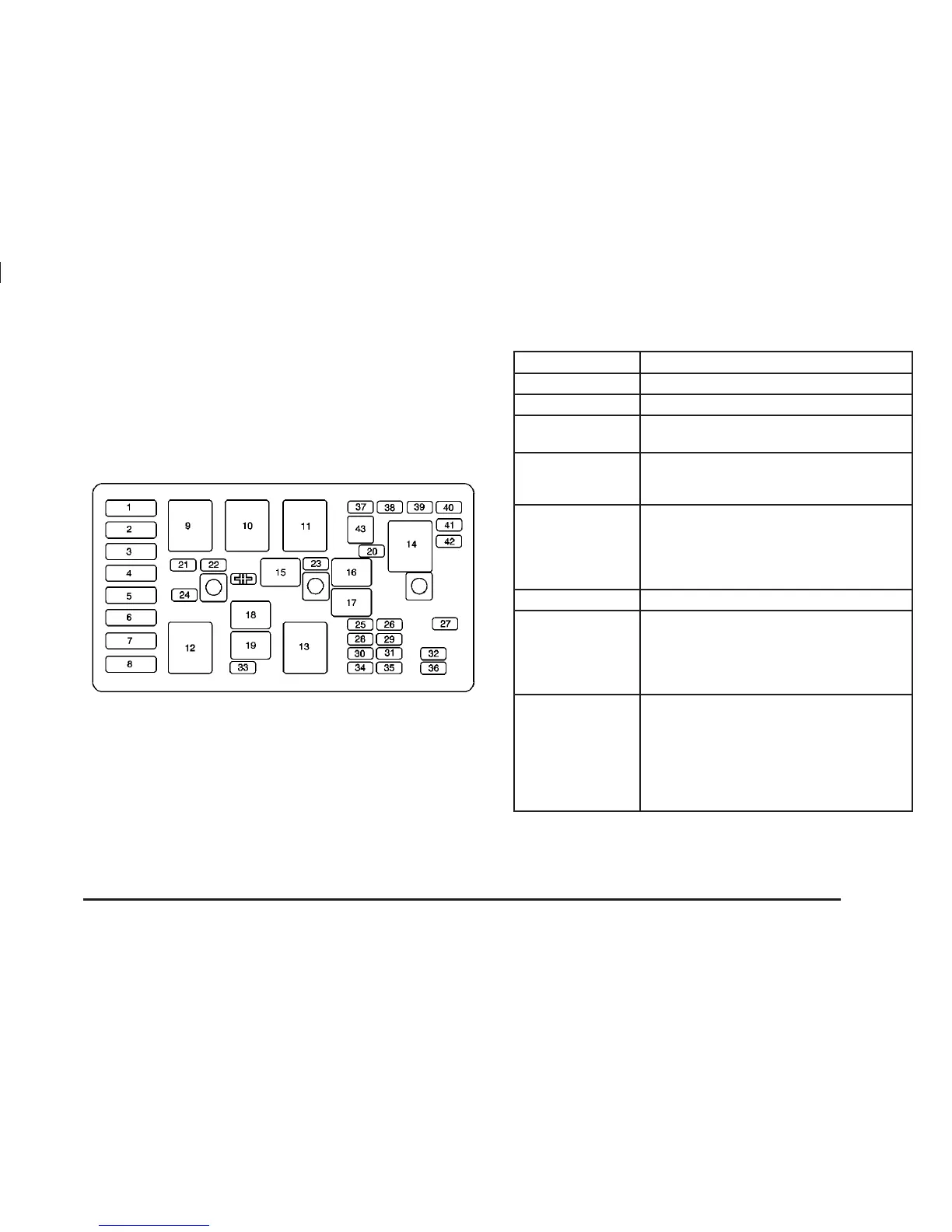

Underhood Fuse Block
Some fuses and relays are located in the underhood
fuse block on the passenger’s side of the vehicle in the
engine compartment. See Engine Compartment
Overview on page 5-12 for more information on location.
Fuses Usage
1 Anti-Lock Brake System
2 Starter Solenoid
3
Power Seats, Rear Window
Defogger, Heated Seats
4
High Blower, Hazard Flasher,
Stoplamps, Power Mirror, Door
Locks
5
Ignition Switch, BTS Shifter Lock
Solenoid, Stoplamps, Anti-Lock
Brake System, Turn Signals,
Cluster, Air Bag, Daytime Running
Lamps Module
6 Cooling Fan
7
Retained Accessory Power (RAP),
Remote Keyless Entry, Data Link,
Heating, Ventilation and Air
Conditioning Head, Cluster, Radio,
Cigarette Lighter
8
Ignition Switch, Windshield Wipers,
Radio, Steering Wheel Controls,
Body Control Module, Power
Windows, Sunroof; Heating,
Ventilation and Air Conditioning
Controls; Daytime Running Lamps,
Rear Window Defogger Relay
5-101
To Next Page
