Don’t exceed the maximum vehicle capacity when
loading your vehicle. For more information on vehicle
capacity and loading, see Loading Your Vehicle on
page 4-31.
To prevent damage or loss of cargo as you’re driving,
check now and then to make sure the luggage
carrier and cargo are still securely fastened.
Loading things onto the luggage carrier can interfere
with the performance of your XM™ Satellite Radio
System, if equipped..
Your luggage carrier has release levers within the end
of each crossrail support.

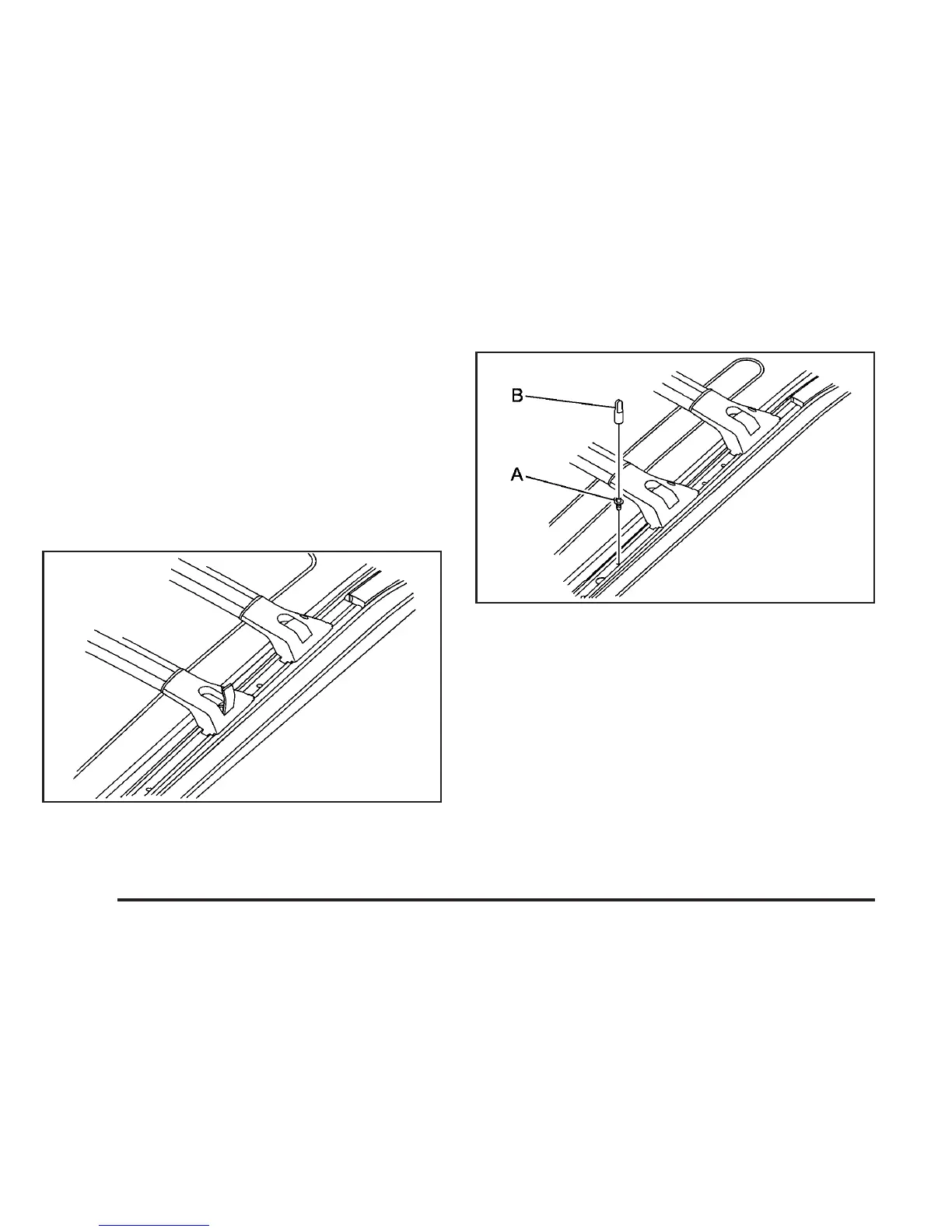

To adjust the crossrail(s), the sunroof stop (A), if
equipped, must be removed.
To remove the sunroof stop, do the following:
1. Find the tool (B) located in a bag in the glove box
labeled TOOL KIT-ACSRY.
2. Use the tool to remove the screw located in the
side rail assembly in front of the front crossrail.
3. Repeat for the other side.
4. Put the tool and the screws back in the plastic bag
in the glove box.
2-42
