Fuse Usage
34 Power Sunroof
35 Power Windows
36
Map Lamps, Courtesy Lamps and
Instrument Panel Lights
37 Radio
38 UQ3 Radio Amplifier
39 Head-Up Display
40 Hazard Flashers
41
Instrument Panel Cluster, Climate
Control, Security LED and Remote
Keyless Entry Mode
42 PASS-Key
®
III
44 Body Control Module (BCM)
46 Advanced Occupant System Module
Relay Usage
20 Rear Defogger Relay
23 Ignition Relay
27 Accessory Relay
33 Retained Accessory Power Relay
43 Accessory Diode
45 Back-Up Lamps

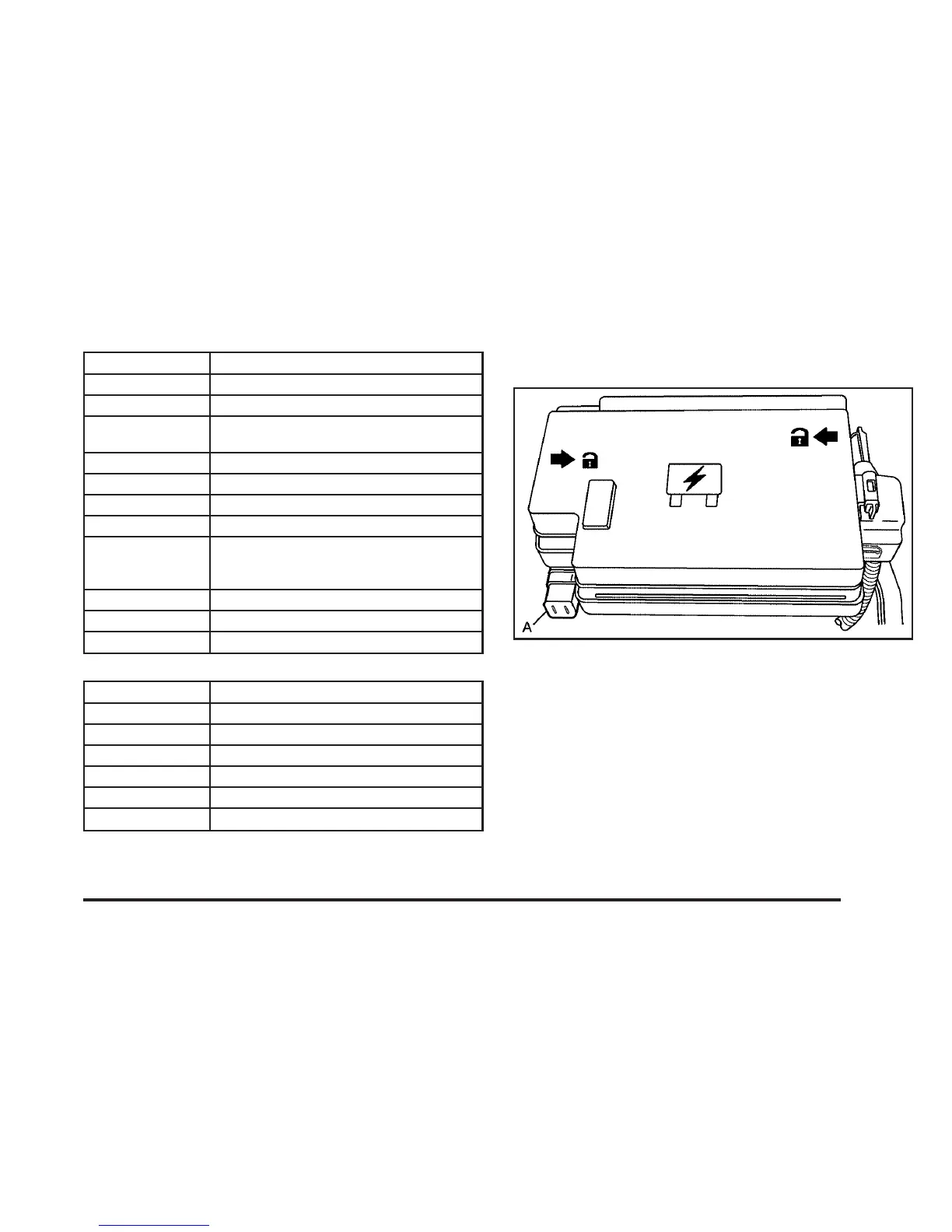

Underhood Fuse Block
This fuse block is located in the engine compartment,
on the passenger’s side of the vehicle. See Engine
Compartment Overview on page 5-12 for more
information on location.
The back-up lamp relay (A) is located behind and to the
left of the underhood fuse block.
To remove the cover, press the two tabs in and lift up
the cover.
5-107
