Removing the Captain’s Chairs
1. Make sure that the seatback is in the upright position.
2. Lift the seatback recliner lever to fold the seatback
forward.

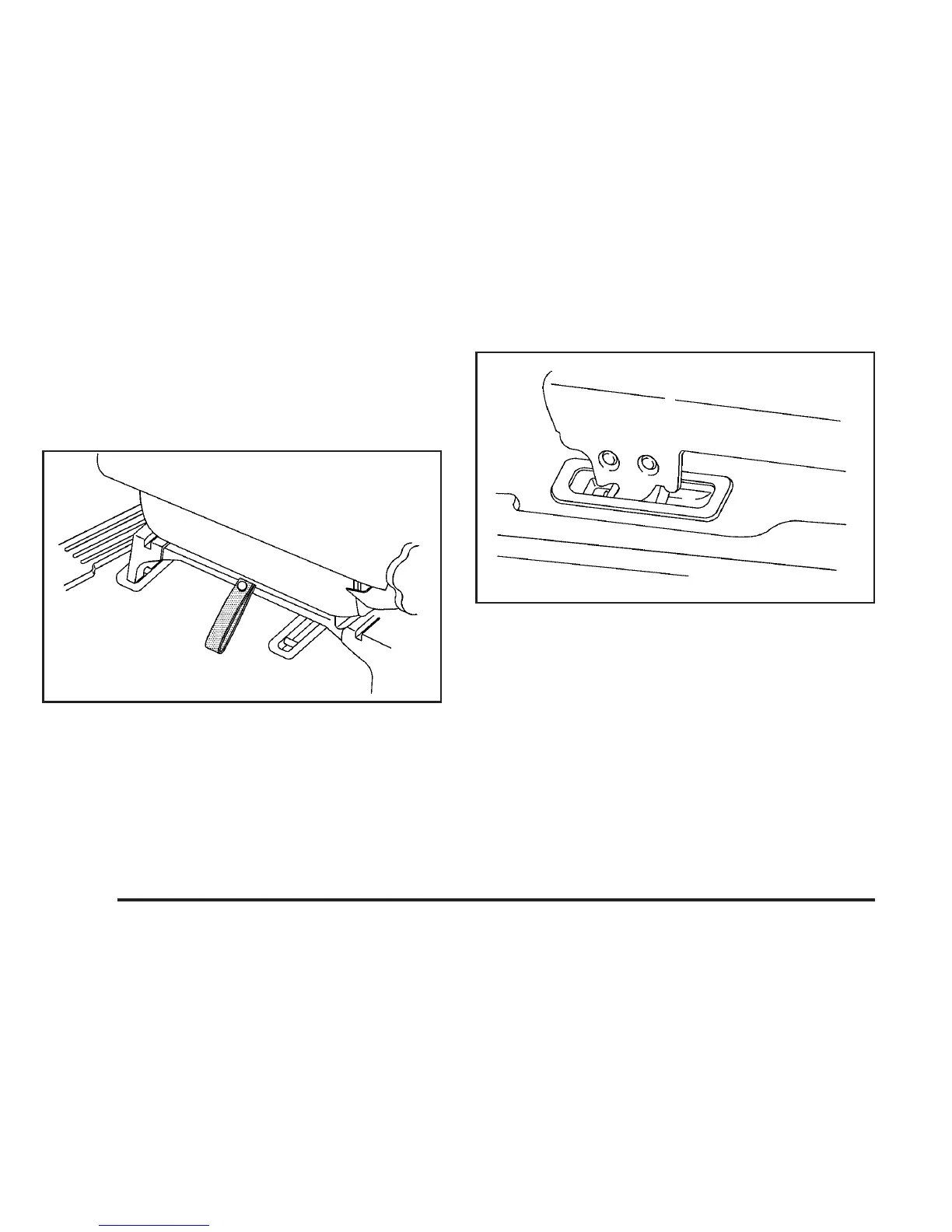

3. Pull the nylon strap behind the chair to release the
rear hooks from the floor pins.
4. The seat can then be lifted off the front floor pins.
5. Remove the seat by rocking it slightly toward
the rear of the vehicle and then pulling it out.
Repeat these steps for the other captain’s chair.
1-14
