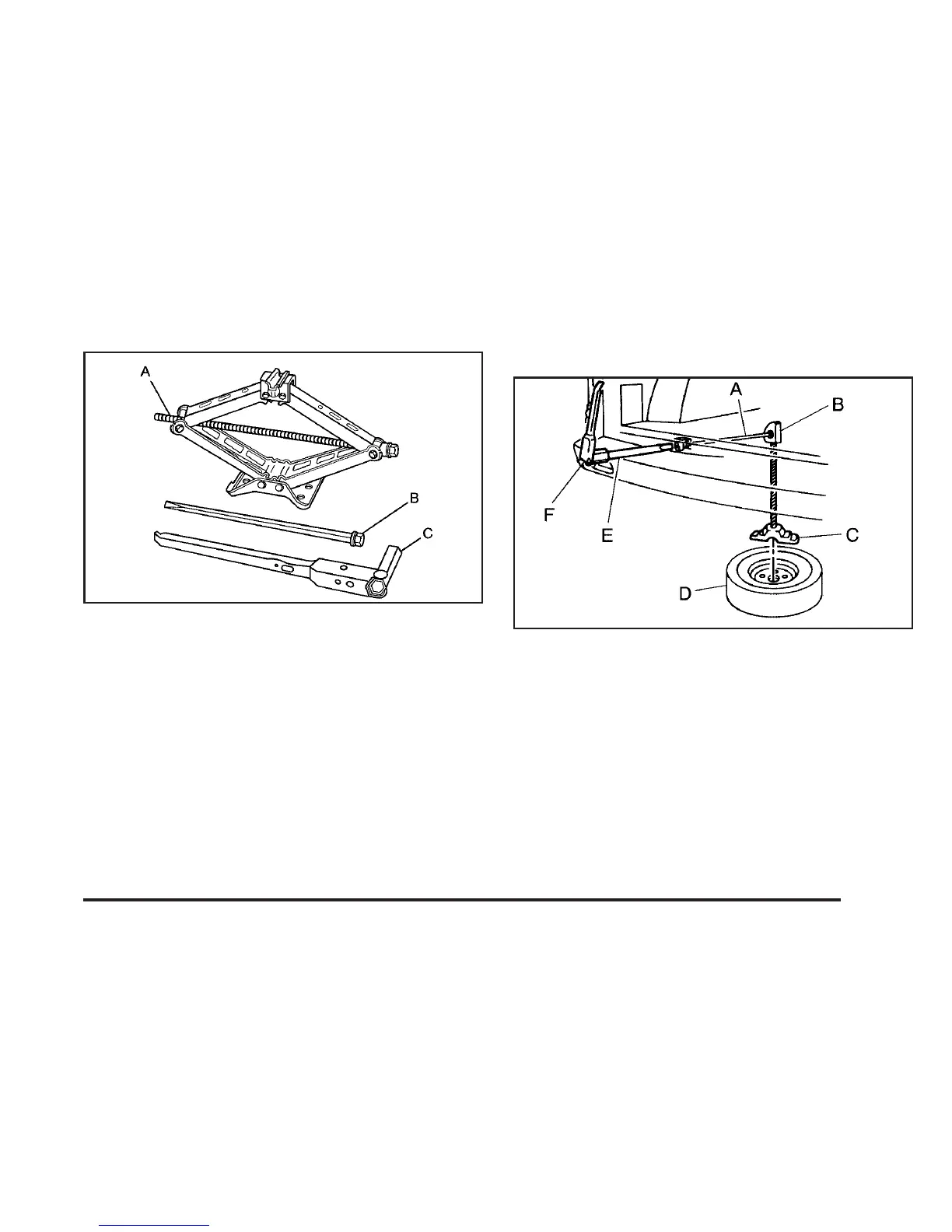

The tools you will be using include the jack (A),
extension (B), and folding wrench (C).
The compact spare tire is located under the rear of the
vehicle. See Compact Spare Tire on page 5-77 for
more information about the compact spare.
To remove the compact spare tire, do the following:
A. Hoist Shaft
B. Hoist Assembly
C. Retainer
D. Compact Spare Tire
E. Extension
(Chisel End)
F. Folding Wrench
1. Attach the folding wrench (F) to the extension (E)
and insert the chisel end on an angle through the
hole in the rear bumper and into the hoist shaft (A).
5-65
