5-14 Instruments and Controls
Cluster Menu

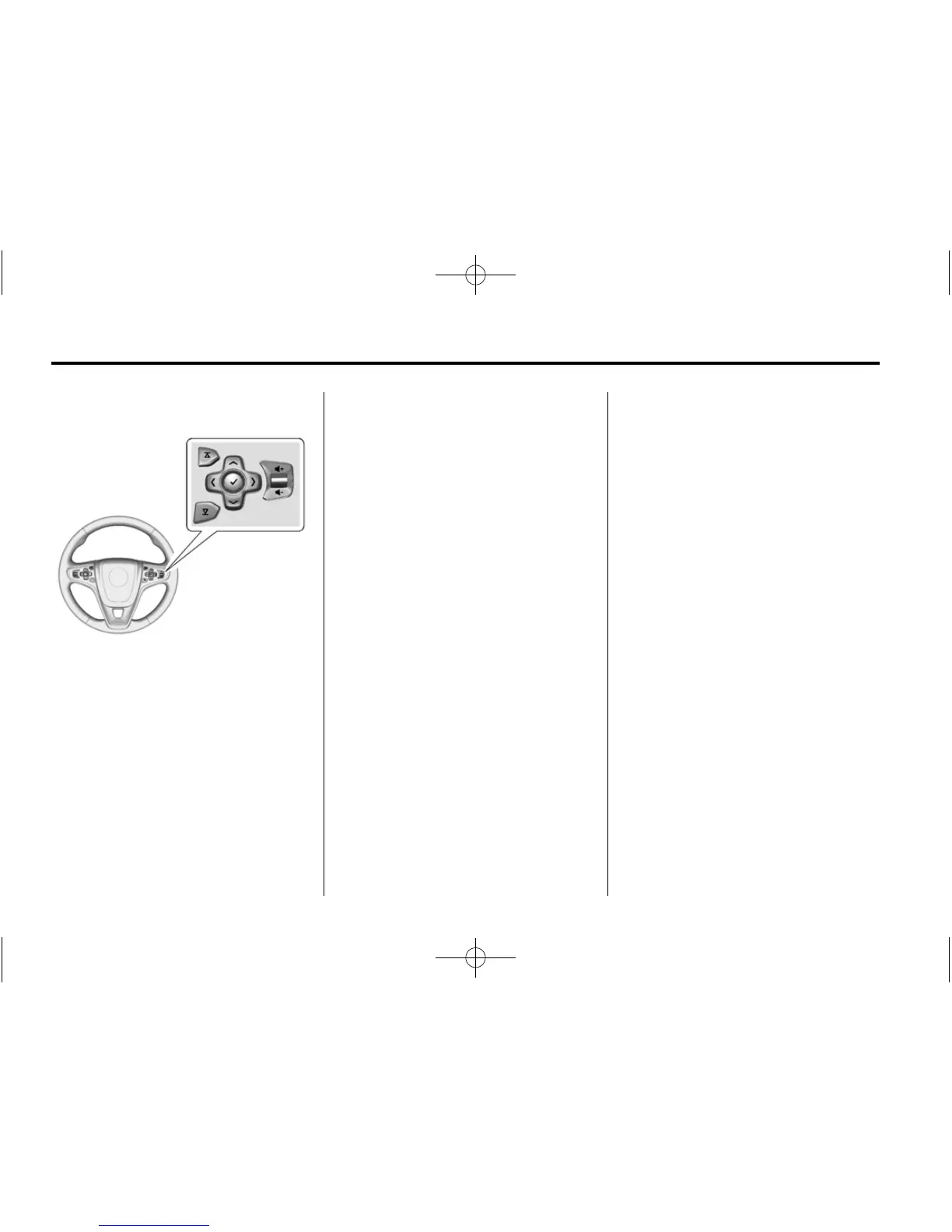

Use the right steering wheel control
to open and scroll through the
different items and displays.
Press
S to access the cluster
applications. Use
y or z to scroll
through the list of available
applications. Not all applications will
be available on all vehicles.
.
Info App. This is where you can
view the selected Driver
Information Center (DIC)
displays. See Driver Information
Center (DIC) (Base Level
Cluster) on page 5-33 or Driver
Information Center (DIC)
(Uplevel Cluster) on page 5-35.
.
Performance
.
Audio
.
Phone
.
Navigation
.
Settings
Performance
Press
V to select the Performance
app, then press
T to enter the
Performance menu. Use
y or z to
scroll through items in the
Performance menu.
Friction Bubble: A four quadrant
visual display, indicating the four
corners of the car, with a “bubble”
showing where the most inertia is
being exerted on the vehicle.
Accel and Brake: Displays
the percentage amount of brake or
accelerator pressure applied by the
driver as a bar graph around the
outer perimeter of the DIC area. The
left side is for acceleration and the
right side is for braking.
Oil Temperature: Displays the oil
temperature in degrees Celsius or
degrees Fahrenheit.
Oil Pressure: Displays the oil
pressure in kPa or psi.
Battery Voltage: Displays the
battery voltage.
Transmission Fluid
Temperature: Displays the
transmission fluid temperature in
degrees Celsius or degrees
Fahrenheit.
