BUILDERS ONE 10900 46 Street SE Calgary AB T3C 2L2 Ph: 403 243-5300

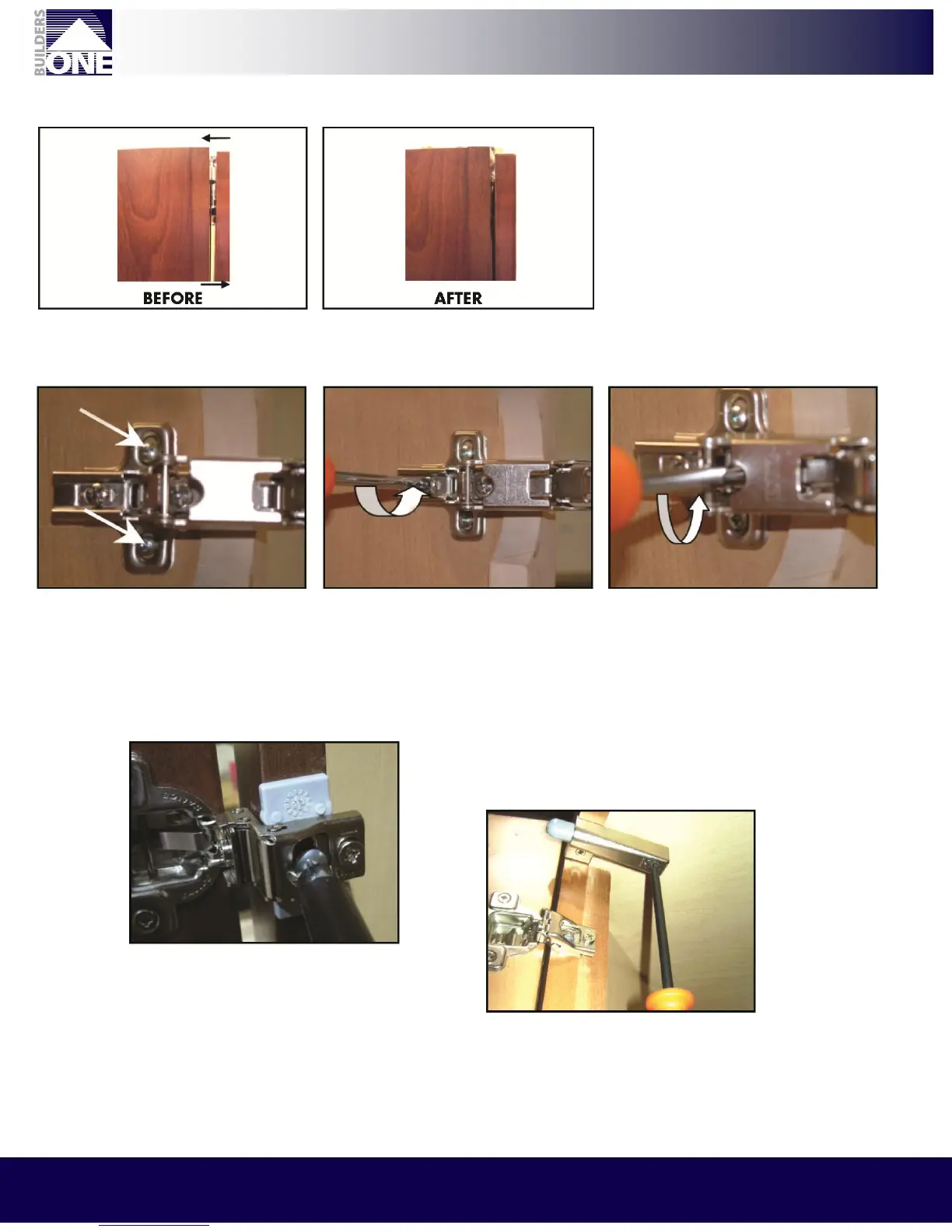

CORRECTING DOOR ALIGNMENT
If the door does not appear to be
parallel to the cabinet frame it can
be easily corrected by using the
Salice auto-adjustment depth screw.
Simply adjust the top hinge inward
and the bottom hinge outward
EASY REACH CORNER CABINET DOOR ADJUSTMENT
Unscrew the hinge plate screws half a turn,
on both hinge plates, to raise or lower the
door.
Release the back adjustment screws to pull
the door forward or push backward.
Locate the front hinge adjustment screws
(insert screwdriver through the hinge arm)
turn screws clockwise to move the door
towards the edge of the cabinet. Turn
screws counter-clockwise to move the
door towards the center of the cabinet.
SOFT CLOSE
DOOR ADJUSTMENT
Your cabinetry may have been supplied with a
soft close door buffer. Contact point can be
adjusted up to 3/16". Adjust contact point out
for larger doors and in for smaller doors.
Turn clockwise to adjust contact point out and
counter-clockwise to adjust contact point in.
MULLION DOOR
SPACERS
Your cabinetry may have been supplied with
full overlay mullion doors. Double door
cabinets can have a gap between the mullion
doors that can be decreased by installing
supplied hinge spacers.
Adjust doors toward center of cabinet per
instructions in hinge adjustment section.
Remove hinge from face frame, install
spacer and tighten hinge screw. Repeat for
all hinges.
