Page 22
SERVICE (cont.)
TANK HEATERS (cont.)
17. Refer to Fig.14 when reconnecting the tank heater
wires.

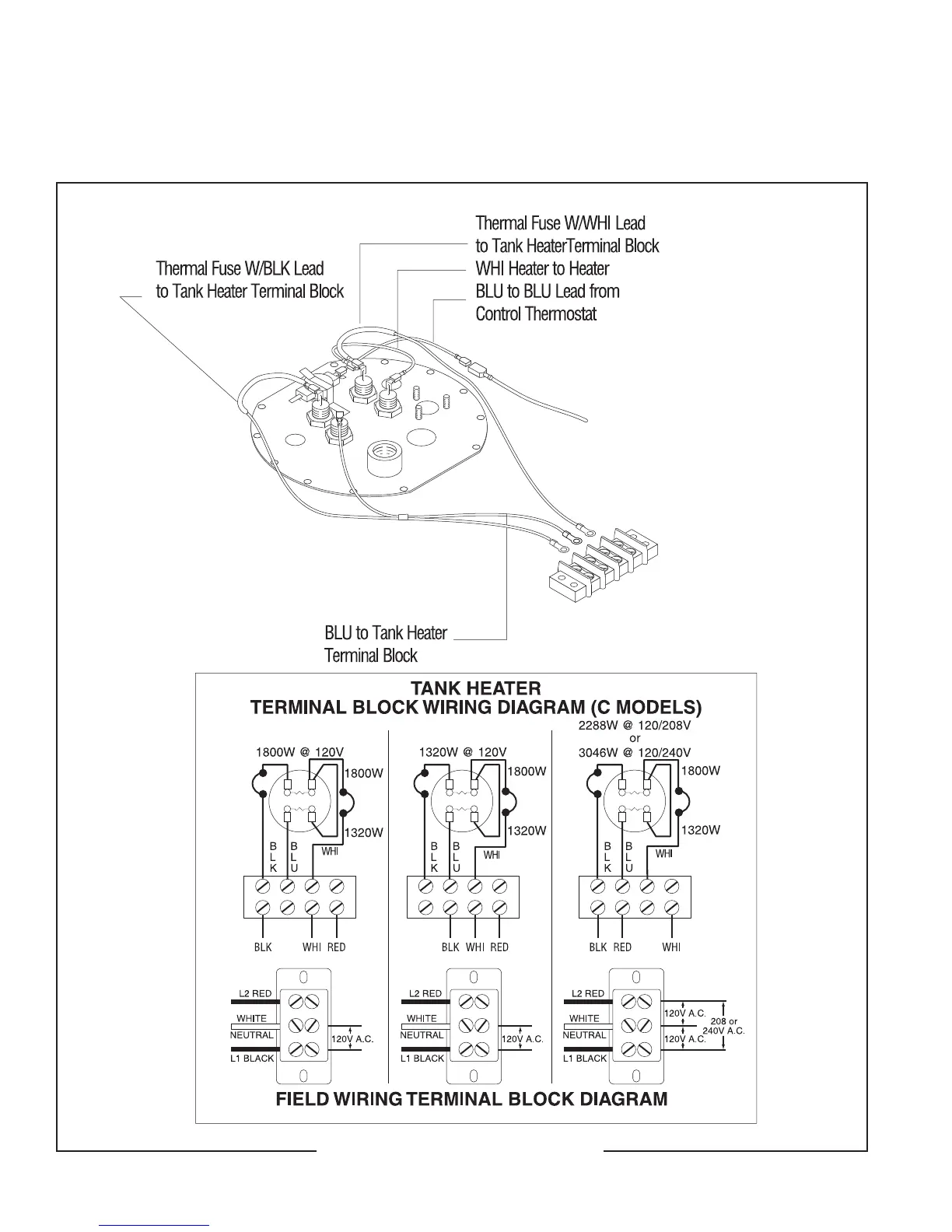

FIG. 14 TANK HEATER TERMINALS
P1420
28182 021500
