BURLEY NOMAD AND FLATBED OWNER’S INSTRUCTION AND SAFETY MANUAL 5
WARNING
IF ALL HOLD-DOWNS ARE NOT SNAPPED IN PLACE BEFORE
USING THE TRAILER, THE SIDE RAILS CAN SHIFT OR COLLAPSE,
RESULTING IN THE LOSS OF CARGO.
Flatbed:
1. Slide ends of side panel rail into front and rear receivers
on side of frame, matching holes in plastic tubing ends
with holes in receivers. PHOTO 4
2. Insert retaining pins through holes on all four corners,
and lock retaining hoops securely. PHOTO 4
Mounting Reflectors
Flatbed:
1. Screw reflectors and brackets together.
2. Mount clear reflectors/brackets horizontally on front
corners of side panel rail tubes. PHOTO 5
3. Mount red reflectors/brackets horizontally on rear
corners of side panel rail tubes. PHOTO 6

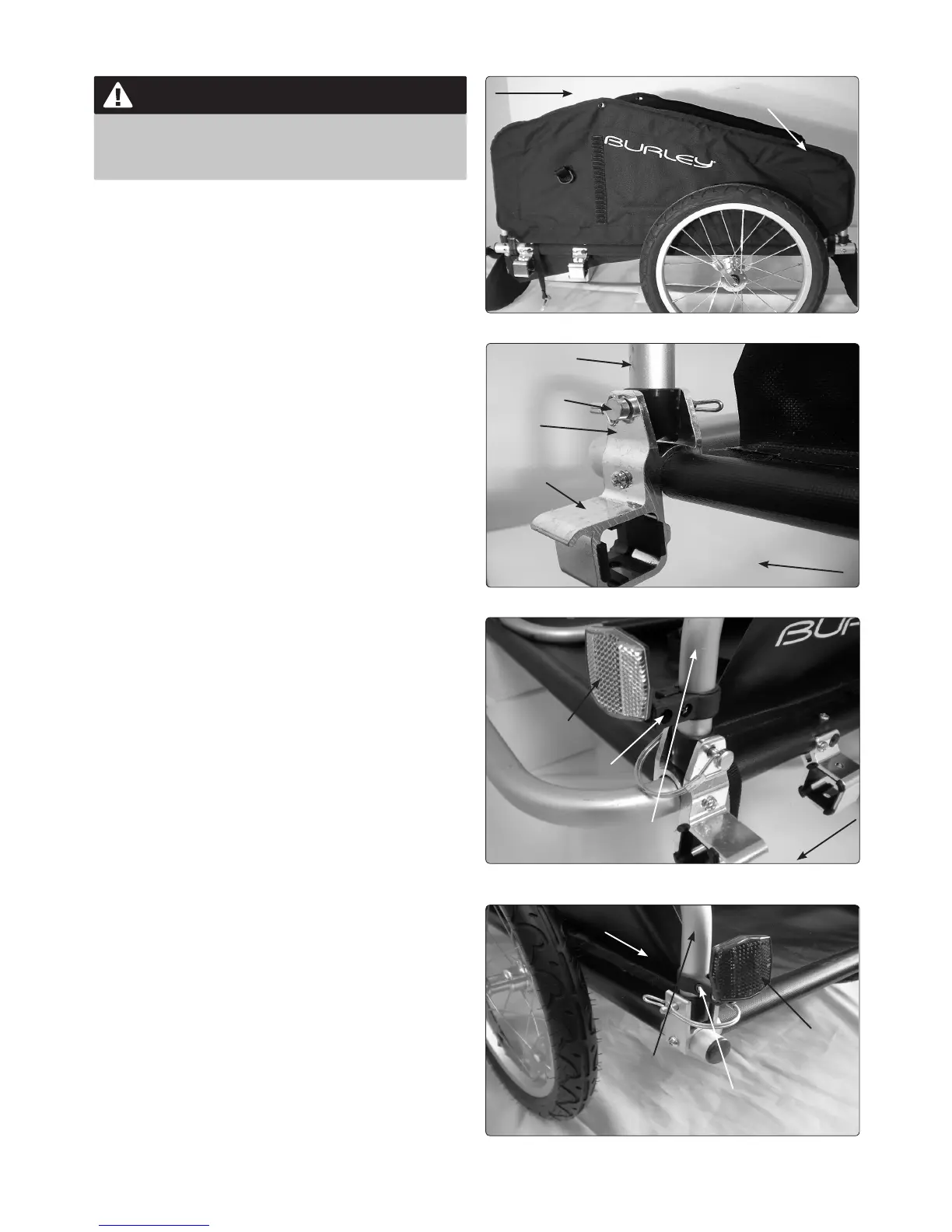

PHOTO 3: NOMAD SIDE PANEL ORIENTATION
PHOTO 4: FLATBED SIDE PANEL ATTACHMENT
Narrow End
of Side Panel
Trailer Rear
Trailer Front
Retaining Pin
Side Panel Rail
Front
Receiver
PHOTO 5: FLATBED CLEAR REFLECTOR/BRACKET MOUNTED ON FRONT CORNER OF
SIDE PANEL RAIL TUBE
Clear
Reflector
Reflector
Bracket
Side Panel
Rail Tube
Trailer Front
Front Tow
Bar Mount
PHOTO 6: FLATBED RED REFLECTOR/BRACKET MOUNTED ON REAR CORNER OF
SIDE PANEL RAIL TUBE
Red
Reflector
Bracket
Trailer
Rear
Side Panel
Rail Tube
