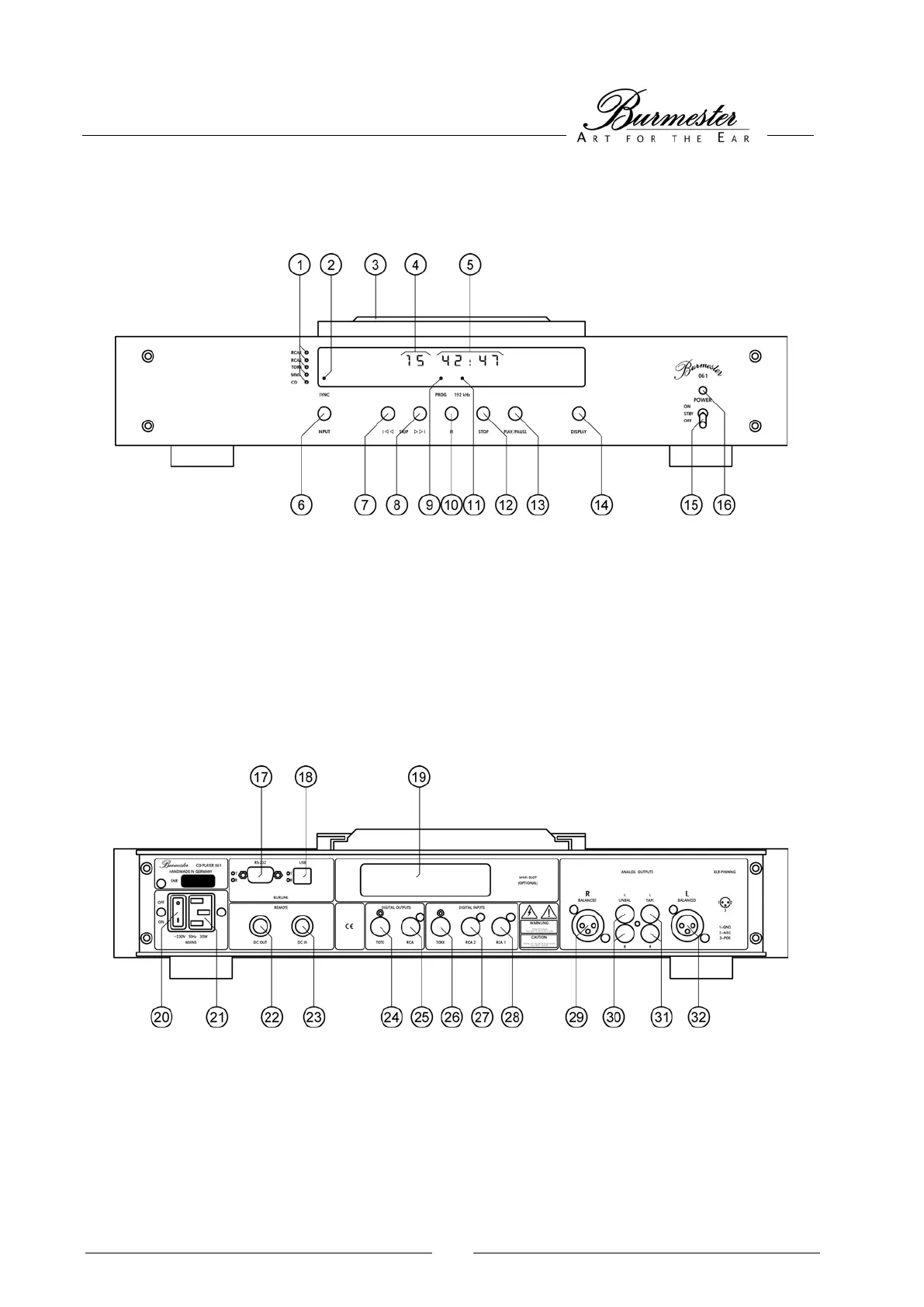

FUNCTIONAL OVERVIEW
FRONT PANEL
(1) INPUT LEDs indicates the selected input (10) IR receiver for remote control
(2) SYNC LED indicates a correct data stream input (11) AUDIO LED shows upsampling of 192kHz
(3) Sliding cover (12) STOP button
(4) TRACK display indicates the current track (13) PLAY/PAUSE button
(5) TIME display shows time elapsed or remaining (14) DISPLAYbutton selects display brightness
(6) INPUT button for selecting the digital input (15) POWER switch to switch the CD player
(7) SKIP |<< button for selecting the previous tracks on and off
(8) SKIP >>| button for selecting the next tracks (16) POWER LED illuminates when the unit is on
(9) PROGRAM LED illuminates when a music program
has been selected and saved
REAR PANEL
(17) BURLINK interface RS-232 with check LEDs (opt.) (26) Digital audio input TORX
(18) BURLINK interface USB with check LEDs (opt.) for optical cables
(19) MMI slot for new inputs or outputs (27) Digital audio input RCA2 (75Ω)
(20) AC mains switch (28) Digital audio input RCA1 (75Ω)
(21) AC mains terminal (29) Analog audio output right channel (bal.)
(22) REMOTE output jack (30) Analog audio output (unbal.)
(23) REMOTE input jack (31) Analog audio output (unbal.)
(24) Digital audio output TOTX for optical cables for analog recording unit
(25) Digital audio output RCA (75Ω) (32) Analog audio output left channel (bal.)
