BURNiT PyroBurn Alpha 18 - Technical Parameters; 12 Recycling and Waste Disposal

15
EN
TECHNICAL PASSPORT INSTALLATION and OPERATION MANUAL

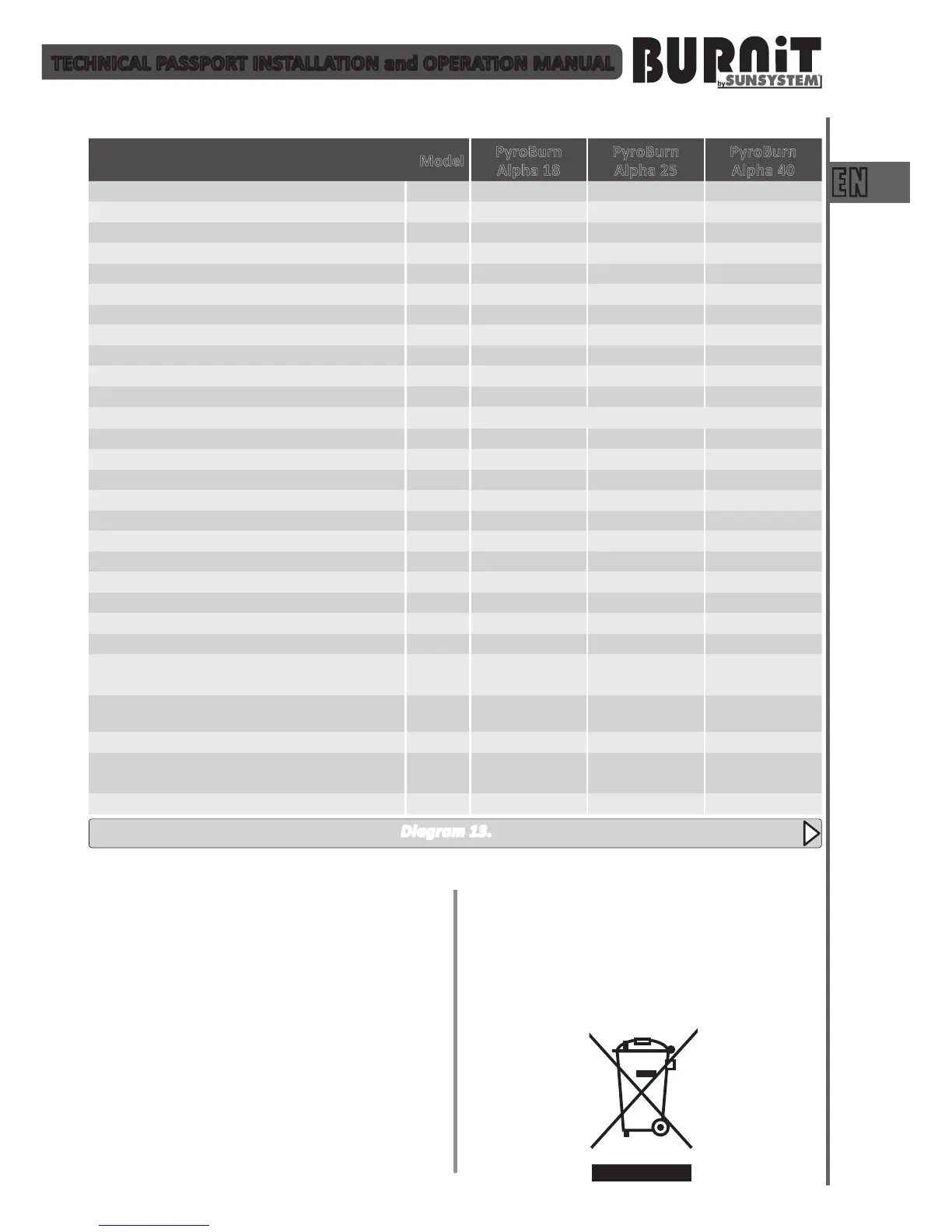

11.3. Technical parameters
Model
PyroBurn
Alpha 18
PyroBurn
Alpha 25
PyroBurn
Alpha 40
Heat output kW 9÷18 12÷25 20÷40
Heating surface m
2
80÷130 100÷240 150÷320
HeightН mm 1255 1290 1430
Width L/ Depth D mm 676/930 765/1090 765/1160
Mantle volume L 52 68 75
Combustion chamber volume L 76 132 162
Combustion chamber resistance Pa/mbar 10/0.10 11/0.11 12/0.12
Required chimney draught Pa 10÷20 10÷20 10÷20
Power consumption/supply
V/Hz / W 230/50 / 80 230/50 / 80 230/50 / 80
Loading door size mm 400/220 490/260 490/260
Max. length of firewood logs mm 330 500 500
Recommended fuel wood, humidity 15%; wood briquettes
Fuel consumption for heating season m
3
~
14,4÷18
~
20÷25
~
32÷40
Burning time partial/full load h 9/4,5 14/7 11/5,5
Operating temp. range/Max.temp. °С 65÷85/95 65÷85/95 65÷85/95
Exhaust gas temperature (operat. mode) °С 150÷180 150÷180 150÷180
Operating pressure bar 3 3 3
Weight kg 330 460 510
Cold water inlet А,mm R1¼“/130 R1¼“/170 R1¼“/170
Hot water outlet B, mm R1¼“/1150 R1¼“/1250 R1¼“/1325
Safety line sleeve K
  
Fume extraction device M
  
Safety heat evacuator inlet/outlet E, mm R½“/1070 R½“/1160 R½“/1235
Flue
F, mm ø150/970 ø150/1075 ø150/1150
J, mm 338 382 382
Cleaning opening
upper O1, mm 360/120
325/142
455/120
350/140
455/120
350/140
lower O2, mm
Drain Y, mm G½“/60 G½“/100 G½“/100
Air intake
Primary air V1, mm 610 655 690
Secondary air V2, mm 460 505 540
PID-based controller U
P P P
Diagram 13.
12. RECYCLING AND WASTE DISPOSAL
12.1. Recycling of boiler packaging
Parts of the packaging made of wood or paper can be
used as combustible for the burner. Submit the rest of
the packaging material for recycling according to the
local regulations and requirements. Replaced heating
installation components must be submitted for
processing to an authorized factory which complies
with the environmental protection regulation.
12.2. Recycling and waste disposal
At the end of life cycle of each product its
components are due to be disposed of in conformity
with regulatory prescriptions.
Obsolete equipment shall be collected separately
from other recyclable waste containing materials
with adverse effect on health and environment.
Metal details, as well as non-metal ones shall be
sold to licensed recyclable metal or non-metal waste
collection organizations. Those should not be treated
as domestic waste.
