ASSEMBLY
RD5-RD6 05/12 Assembly Section 3-3
© 2012 Alamo Group Inc.
ASSEMBLY

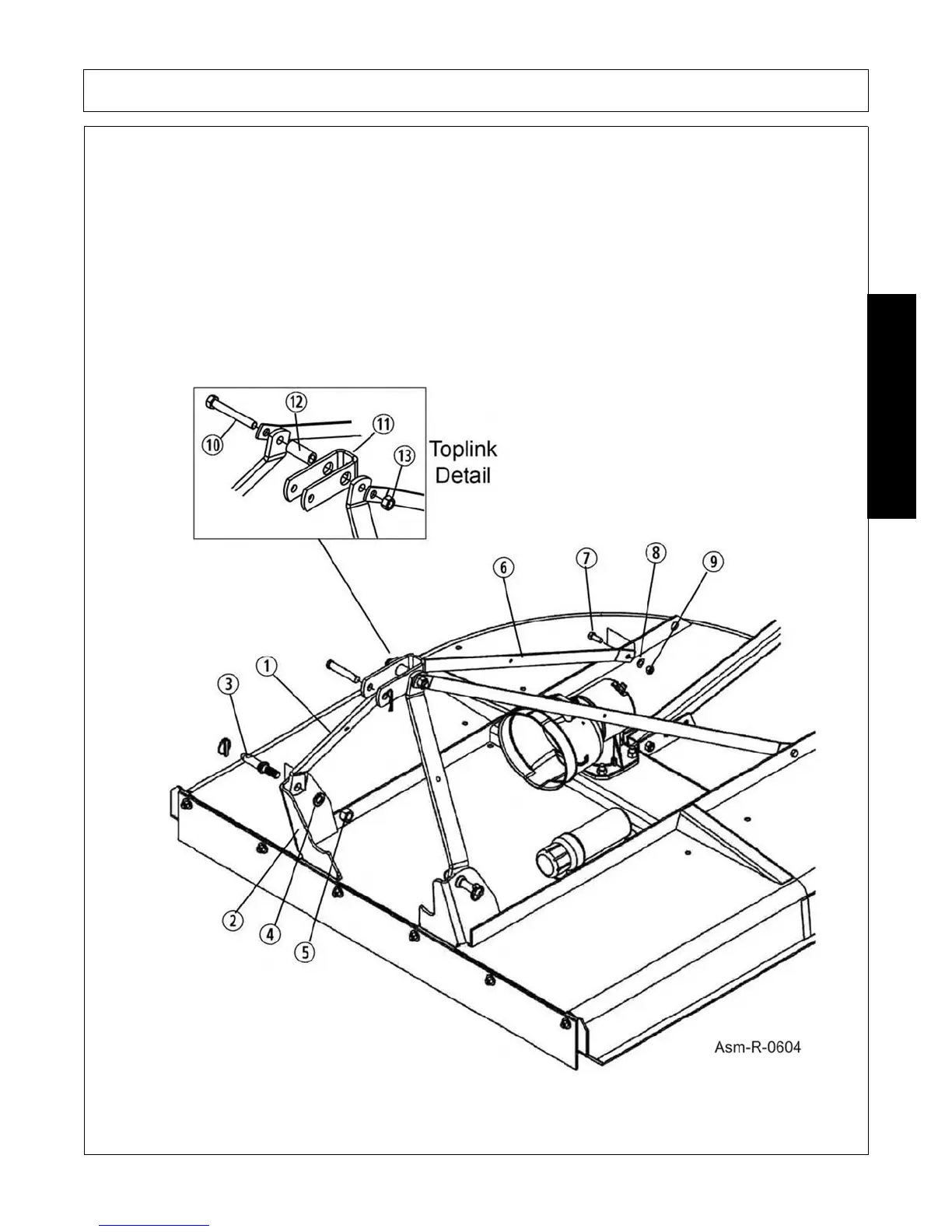

A-FRAME INSTALLATION
1. Attach the A-Frame Bars (1) to the right and left Hitch Lugs (2) with two Cat. 1 Hitch Pins (3), 5/8”
Flatwashers (4), and Nuts (5).
2. Attach the Lift Strap Bars (6) to the Mainframe with two M12 x 40 Bolts (7), Flatwashers (8) and Nuts (9).
3. Attach the Lift Strap Bars (6) to the A-Frame Bars (1) with one Bolt (10), Top Link (11), Bushing, (12), and
Nut (13).
4. Tighten all bolts to the proper torque.
