11
1. Using a flat blade screwdriver, rotate the fasten-
ing pin in its seat 1/2 turn until the head of the pin
becomes unlocked in its housing on the cones.
(Figure 4-2)
2. Lever up the pin through the slot, until the pin
comes out. (Figure 4-3)
3. Rotate the soft cone until the slots are aligned
with the corresponding ones of the rigid cone.
(Figure 4-4)
4. Remove the cones from the half-joint. (Figure 4-5)
5. Remove the connecting ring from its housing on
the yoke and, at the same time, from the slots of the
guard tube, then move away the ring and the tube.
(Figure 4-6)
Reassembly is in the reverse order

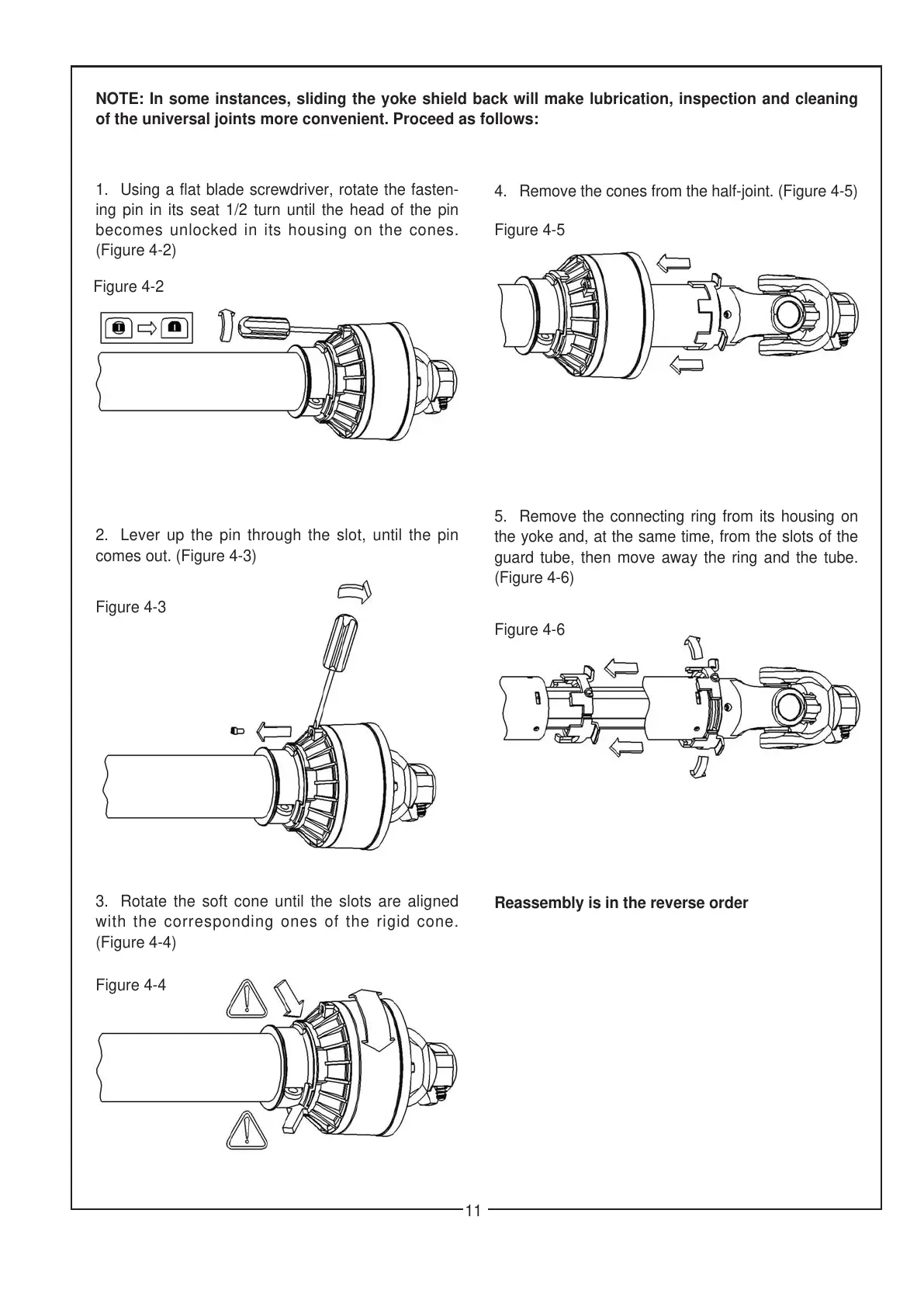

NOTE: In some instances, sliding the yoke shield back will make lubrication, inspection and cleaning
of the universal joints more convenient. Proceed as follows:
Figure 4-2
Figure 4-3
Figure 4-4
Figure 4-5
Figure 4-6
